Water Chiller CWFL-20000BN
BesCutter Industrial Refrigerated For Fiber Laser 20000W
- Eco-Friendly Cooling: It uses an environmentally friendly refrigerant, so you can keep your laser cool while being kind to the planet.
$12,600.00

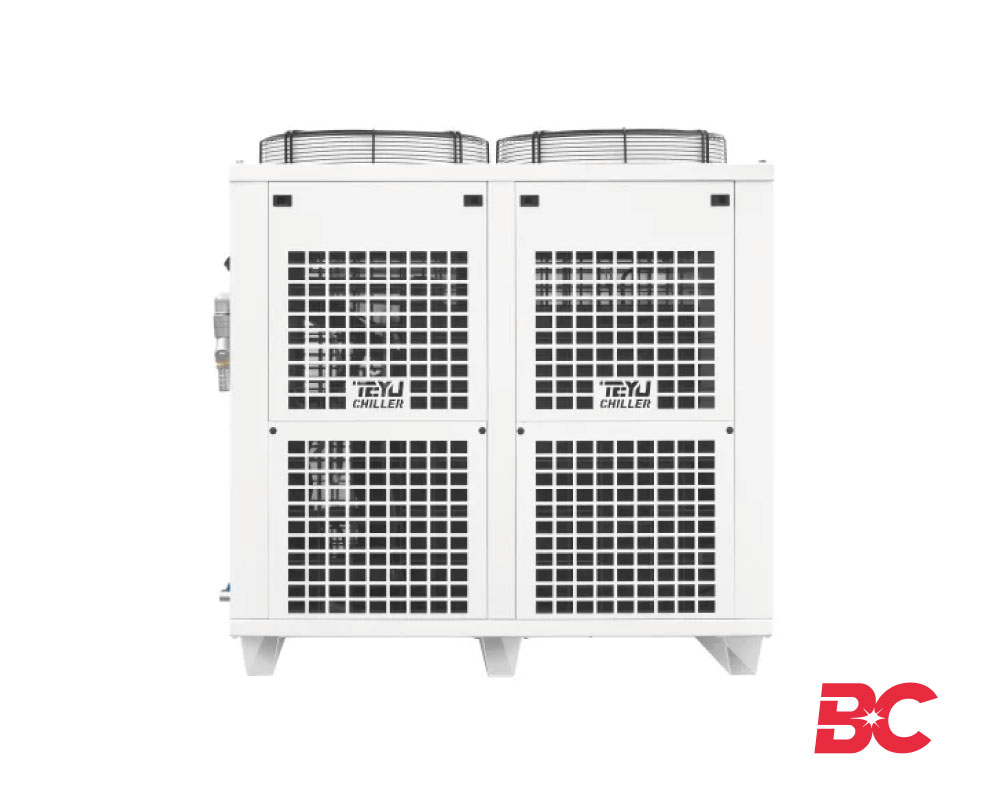

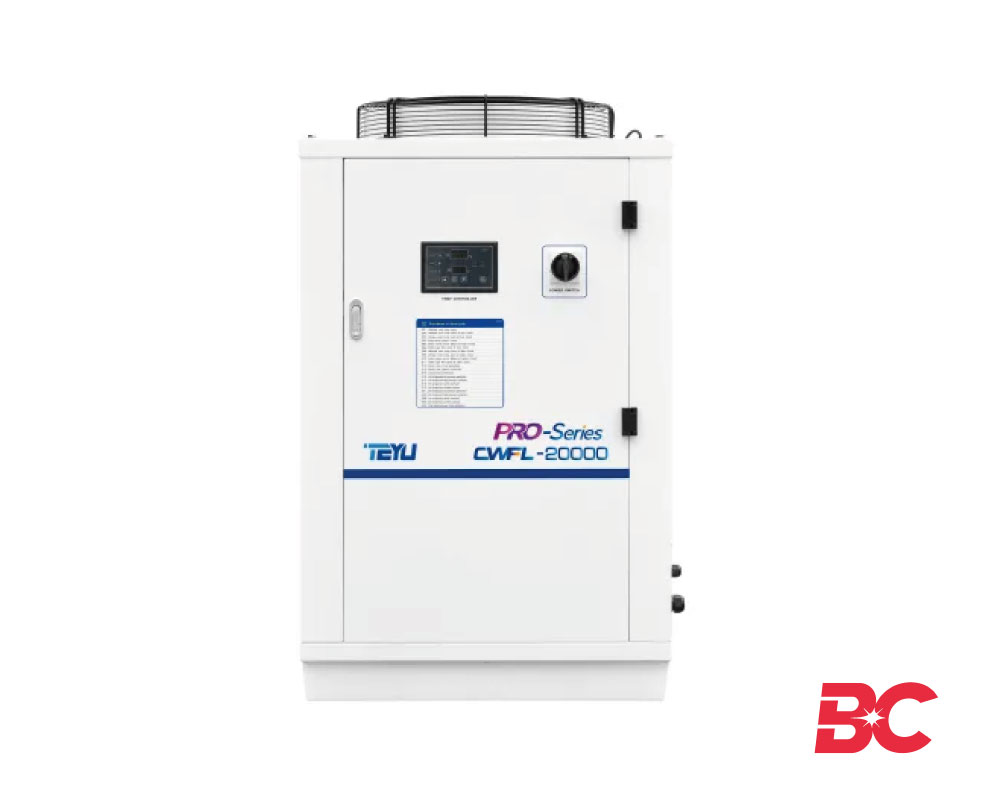

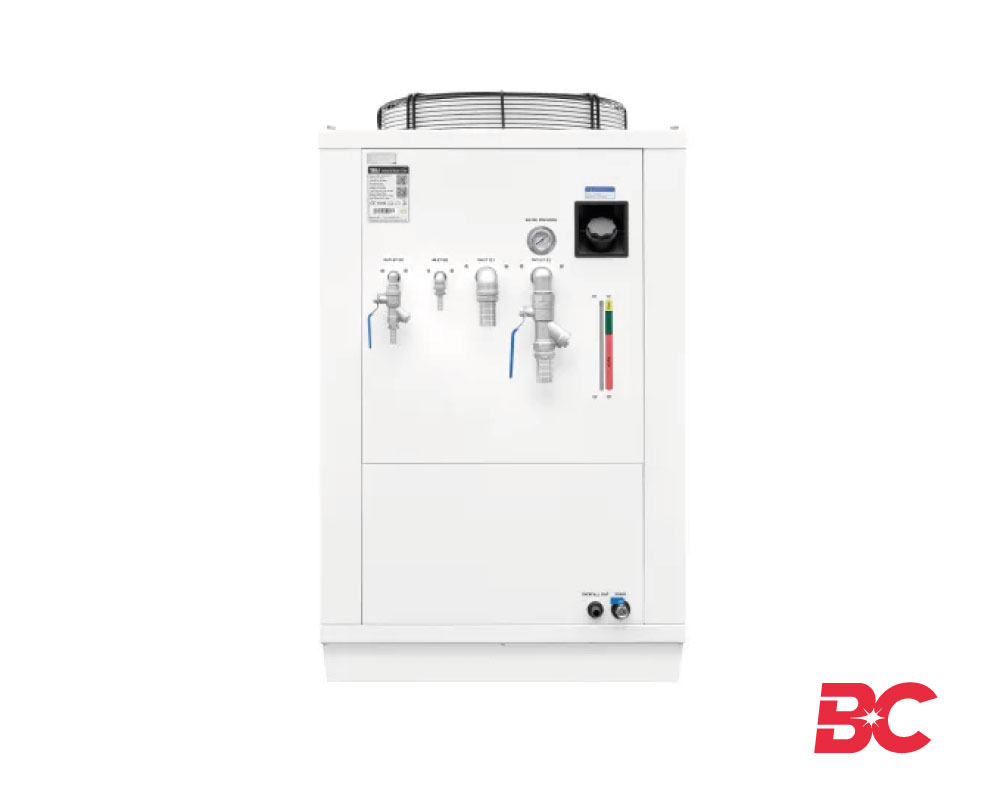

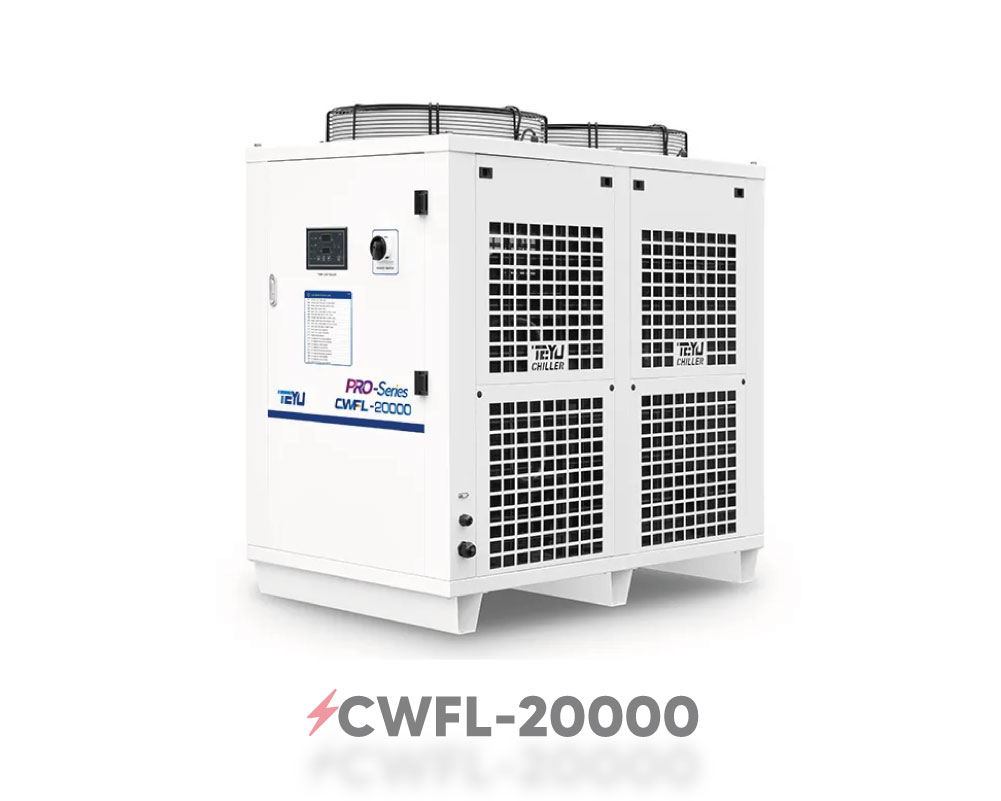

Water Chiller CWFL- 20000BN
The CWFL-20000 high-performance industrial cooling system is designed to offer advanced features while making cooling 20 kW fiber laser equipment easier and more efficient. Featuring a dual cooling circuit, this recirculating water chiller has sufficient capacity to independently and simultaneously cool the fiber laser and optics. All components are carefully selected to ensure reliable operation.

FEATURES AT A GLANCE


SPECIFICATIONS
Feature | Specification |
---|---|
Model | CWFL-20000BN |
Precision: | ±1,5℃ |
Voltage: | 380V |
Refrigerant: | R-407C |
Frequency: | 50/60Hz |
Reducer: | thermostatic expansion valve |
Pump power: | 3,5 kW-3 kW |
Tank capacity: | 170L |
Inlet and outlet: | Rp1/2"+ Rp1-1/4" |
N.W: | 275 kg |
G.W: | 312 kg |
Dimension: | 142 x 83 x 132 cm (L*W*H) |
Package dimension: | 147 x 92 x 150 cm (L*W*H) |
