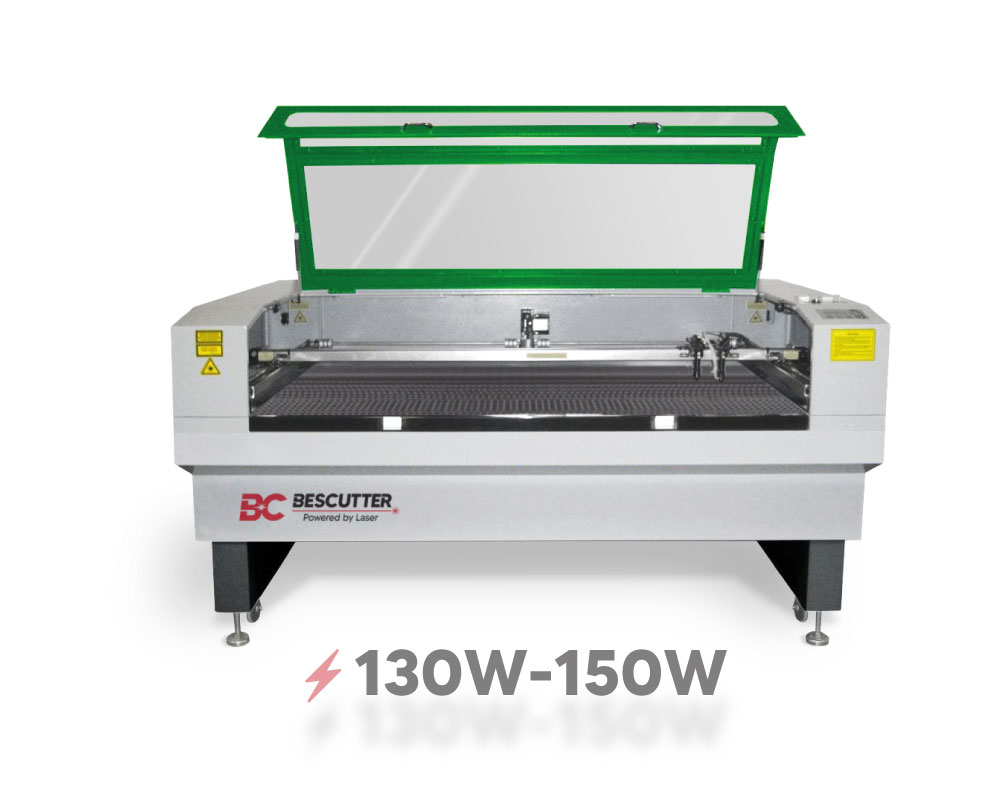

VERSA STAR TWIN XL

63" X 40" | 130W / 150W | CO2 LASER CUTTER & ENGRAVER
DOUBLE HEAD | CMA1610T | FAST DELIVERY

KEY FEATURES

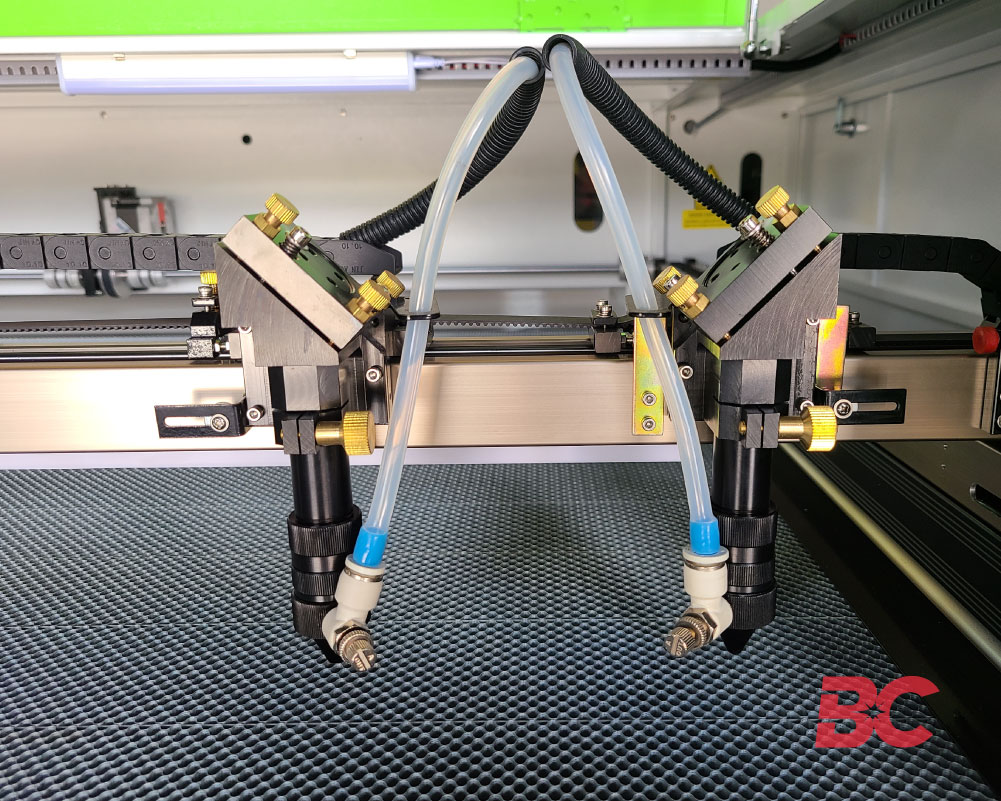

  • Dual Laser Heads
  • Quick Delivery
  • 130W – 150W Laser Power
  • US Based Support
Contact Us for More Information
Name(Required)

VERSA STAR TWIN SERIES

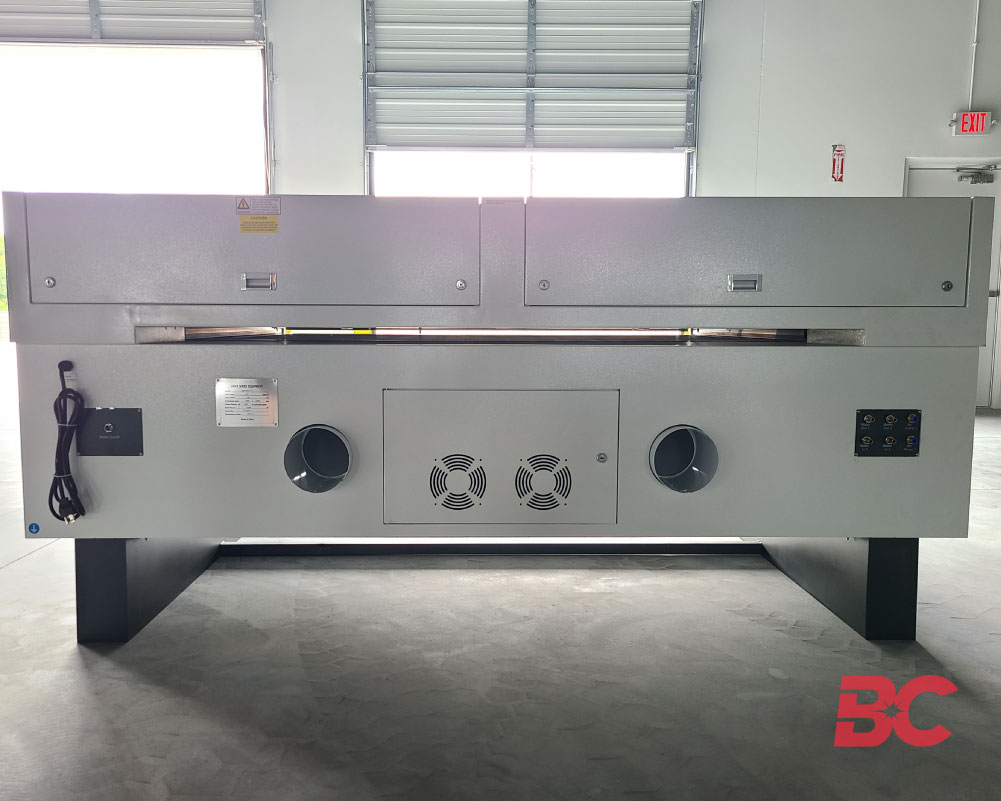

The Versa Star Twin XL CO2 Laser Machine by Bescutter represents a revolutionary advancement in laser cutting and engraving technology. Designed with a cutting-edge dual laser head, this machine significantly enhances productivity by delivering faster, deeper, and more precise cuts. Its ability to operate with two laser heads simultaneously not only speeds up the process but also ensures uniformity and precision in every project.

What sets the Versa Star Twin XL apart is its versatility in handling a variety of organic materials. Whether it’s wood, leather, fabric, or acrylic, this machine can effortlessly cut and engrave with impeccable accuracy, making it an ideal tool for industries ranging from woodworking and fashion to signage and décor. The machine’s large working area, specifically tailored for Twin XL dimensions, provides ample space for large-scale projects, enabling both intricate designs and sizable creations.

By loading this video, you agree to the privacy policy of Youtube.

FEATURES AT A GLANCE

MACHINE SPECS

TECHNICAL SPECIFICATIONDETAILS
Laser Power:130W/150W
Laser Tube Type:ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2)
Power Supply:AC 220V (±10%) 60Hz
Focus Lens:2.5" Focal Lens
Working Area:63"x 40" (1600 x 1000 mm)
Working Platform:Honey Comb + Aluminum Slats Worktables
Z-Axis Displacement:N/A
Max Moving Speed:18 in/s (500 mm/s)
Pass-Through Door::Front and back 1.125 inches (H) / 52.183 Inches (W)
Transmission:Stepper Motor/Belts Leadshine

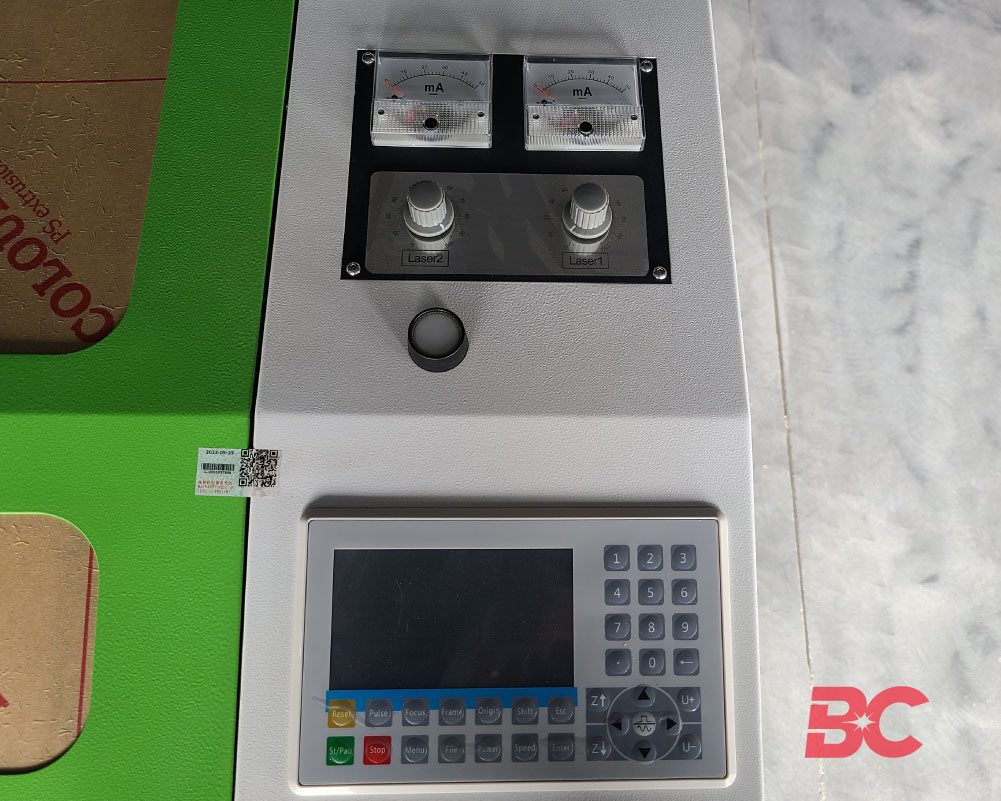

Operation Mode:Control Panel RuiDa RDC6445
Machine Dimensions:69" x 91" x 42" (1752 x 2311 x 1066 mm) Wooden Crate
Package Dimensions:74" x 96" x 47" (1879 x 2438 x 1193 mm) Wooden Crate
Lifetime Laser Tube:10,000 hours Approx
Controlling System:RuiDa Controller RDC6445G (EC)
Software:RDWorks / Compatible LightBurn®
Connection Method:USB cable / Ethernet cable
Software Compatibility:Photoshop, Illustrator, CorelDraw, and AutoCAD
Technical Support Service:Dedicated USA technical support Zoho desk platform
Limited Warranty:2 Years on the machine body, auxiliary equipment, and, hardware and software. / 1 Year on the laser tube. / Lenses and mirrors are not covered by warranty
Certification:CE, ISO
Class:Class 4 Laser
Net Weight:1350 lb (612 Kg)
Gross Weight:1450 lb (657 Kg)
