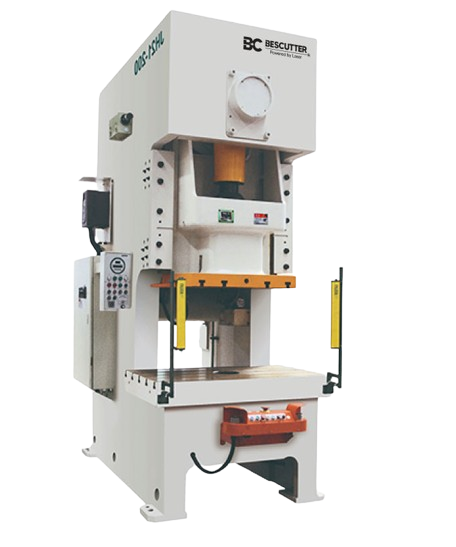

BESCUTTER FRAME FIXED TABLE PRESS

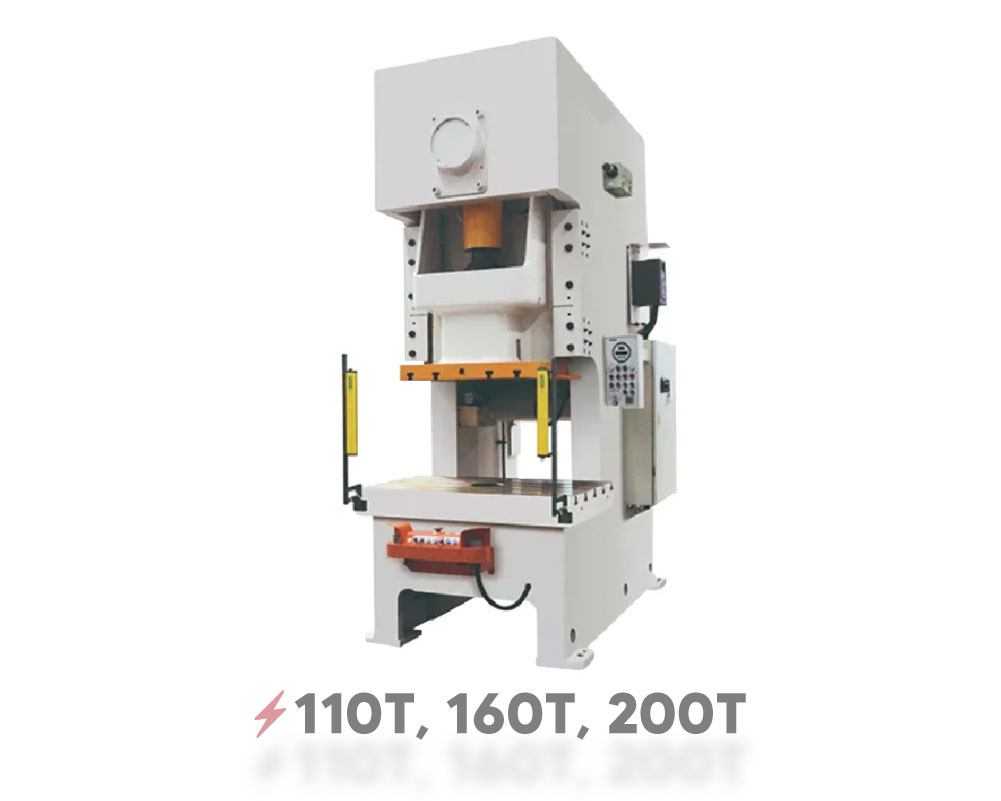

Introducing the Bescutter Frame Fixed Table Press, a powerful and versatile machine designed for a variety of pressing applications. Available in 110T, 160T, and 200T models, this press offers robust construction and precise control to meet your production needs.
With adjustable die heights, generous throat depths, and varying table opening sizes, the Bescutter Frame Fixed Table Press provides flexibility for a wide range of tooling and workpiece dimensions. Explore the technical specifications below to find the perfect model for your requirements.
HIGHLIGHTED FEATURES
MACHINE SPECS
| Nominal Pressure: | 1100 kN (125 tons) | 1600 kN (180 tons) | 2000 kN (225 tons) |
| Nominal Pressure Stroke: | 5mm (0.20 in) | 6mm (0.24 in) | 6 mm (0.24 in) |
| Stroke of Slide: | 160-100 mm(6.3-3.9 in) | 180-110 mm (7.1-4.3 in) | 200-130 mm (7.9-5.1 in) |
| Max.Die Set Height: | 350-380 mm (13.8-15.0 in) | 400-435 mm (15.7-17.1 in ) | 450-485 mm (17.7-19.1 in) |
| Die Height Adjustment: | 90 mm (3.5 in) | 100 mm (3.9 in) | 110 mm (4.3 in) |
| Depth of Throat: | 350 mm (13.8 in) | 390 mm (15.4 in) | 420 mm (16.5 in) |
| Distance Between Uprights: | 680 mm (26.8 in) | 720 mm (28.3 in) | 830 mm (32.7 in) |
| Size of Opening in Table (Diameter): | Φ160 mm (Φ6.3 in) | Φ180 mm (Φ7.1) | Φ200 mm (Φ7.9 in) |
| Main Motor Power: | 11 kW (15 HP) | 15 kW (20 HP) | 18.5 kW (25 HP) |
