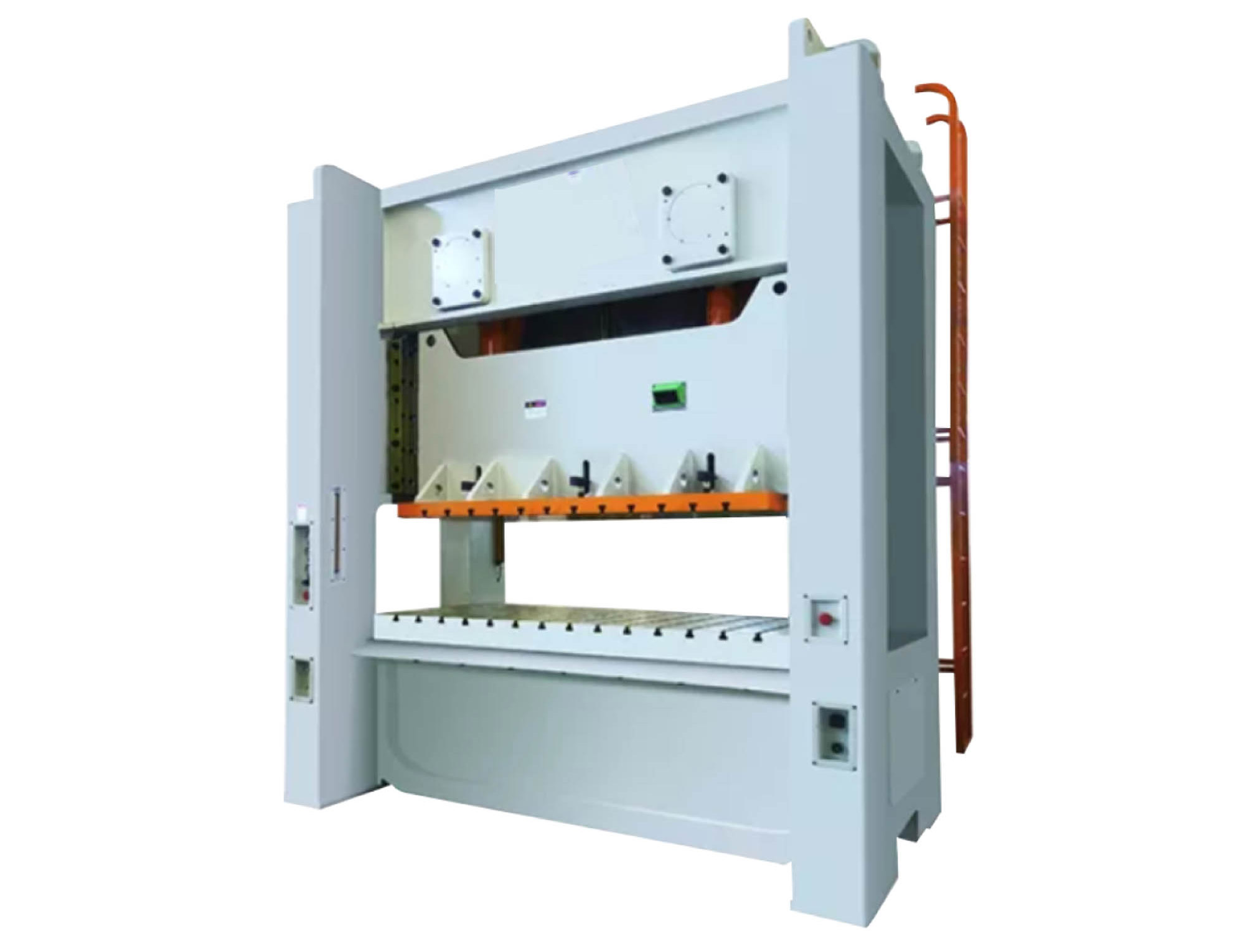

BESCUTTER CRANK PRESS
Introducing the Bescutter Crank Press, a high-performance machine designed for demanding industrial applications. This robust crank press offers exceptional precision and efficiency, making it ideal for a wide range of metal forming processes.

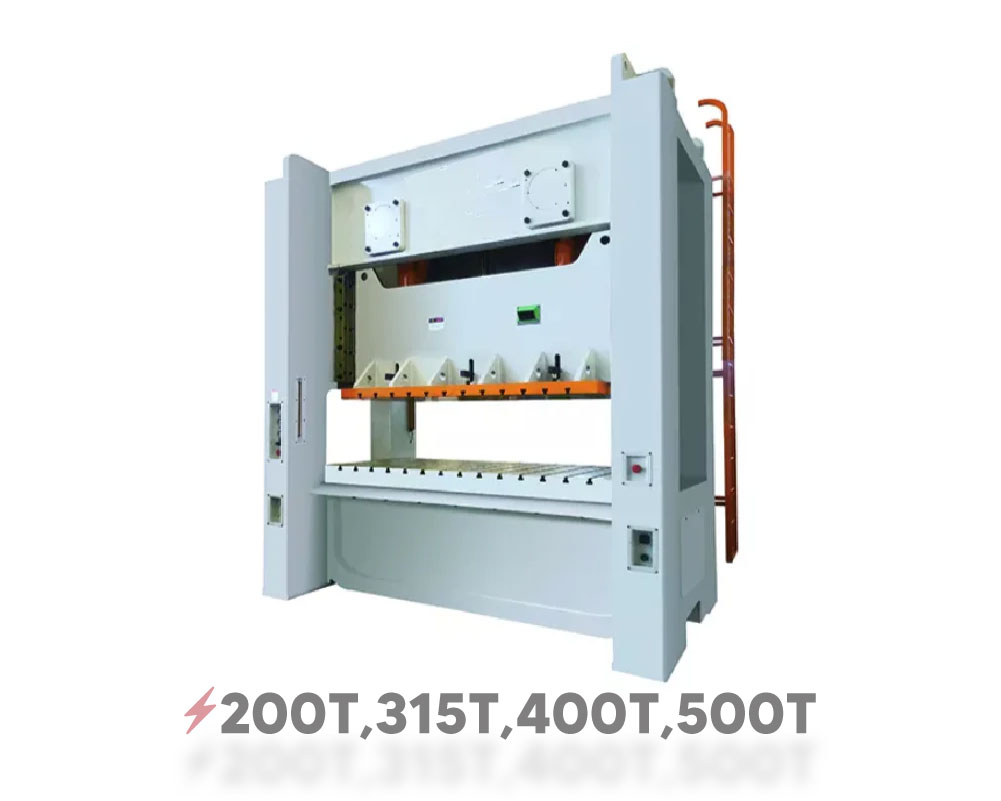

Available in various tonnage capacities: 200T, 315T, 400T, and 500T.

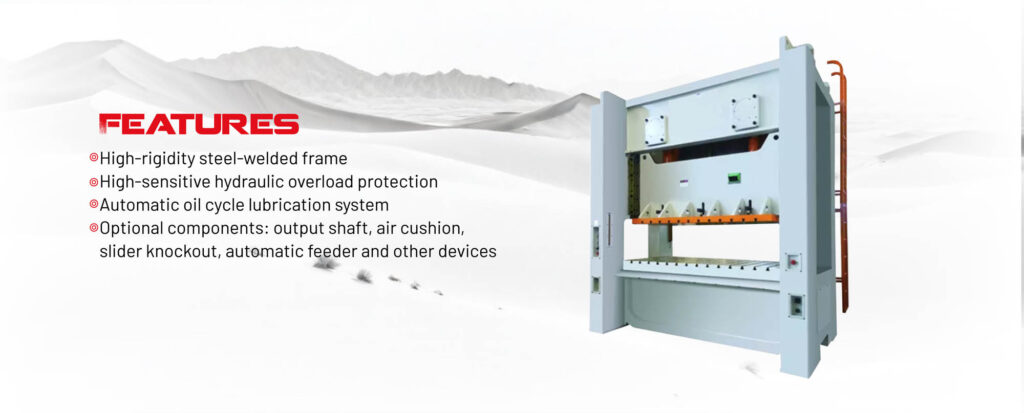

HIGHLIGHTED FEATURES
FEATURES AT A GLANCE
MACHINE SPECS
| Nominal Pressure | 2000 kN (225 tons) | 3150 kN (354 tons) | 4000 kN (449 tons) | 5000 kN (562 tons) |
| Nominal Pressure Stroke | 7 mm (0.28 in) | 8 mm (0.31 in) | 8 mm (0.31 in) | 8 mm (0.31 in) |
| Stroke of Slide | 250 mm (9.84 in) | 280 mm (11.02 in) | 300 mm (11.81 in) | 300 mm (11.81 in) |
| Max. Die Set Height | 550 mm (21.65 in) | 605 mm (23.82 in) | 650 mm (25.59 in) | 650 mm (25.59 in) |
| Die Height Adjustment | 110 mm (4.33 in) | 120 mm (4.72 in) | 130 mm (5.12 in) | 130 mm (5.12 in) |
| Main Motor Power | 22 kW (29.5 HP) | 37 kW (49.6 HP) | 45 kW (60.3 HP) | 55 kW (73.8 HP) |
