BESCUTTER GIGA
6000W-40000W | Fiber Laser Metal Sheet Cutting Machine
The GIGA Fiber Laser Cutting Machine by BesCutter delivers unmatched industrial performance with ultra-high power and precision. Designed for large-format metal cutting, this machine ensures maximum efficiency, speed, and accuracy, making it ideal for heavy-duty fabrication applications.

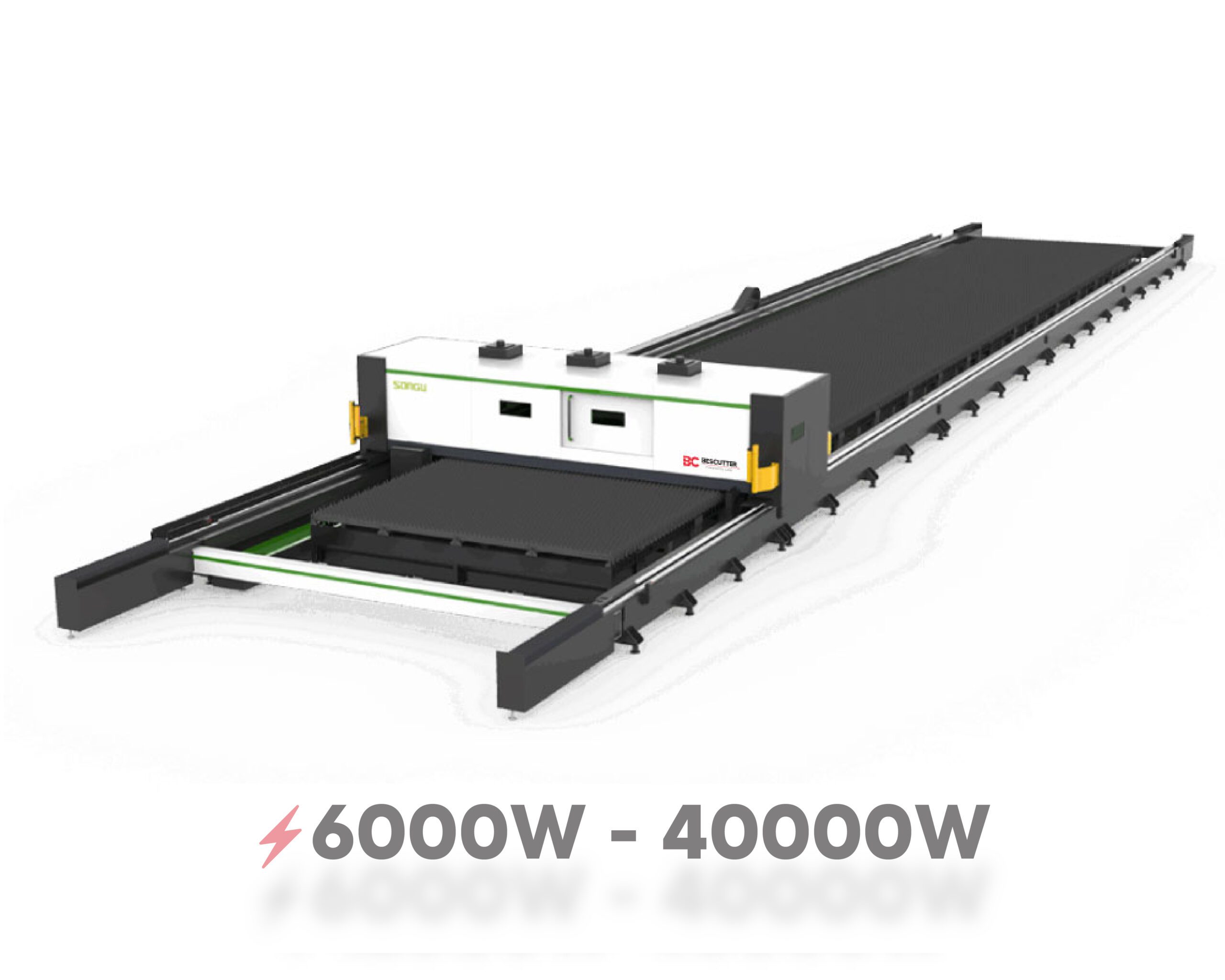

- 6,000W – 40,000W Laser Power.
- Fully Enclosed Design For Safety & Precision.
- Customizable Size According To Customer Requirements.
Contact Us for More Information
GIGA

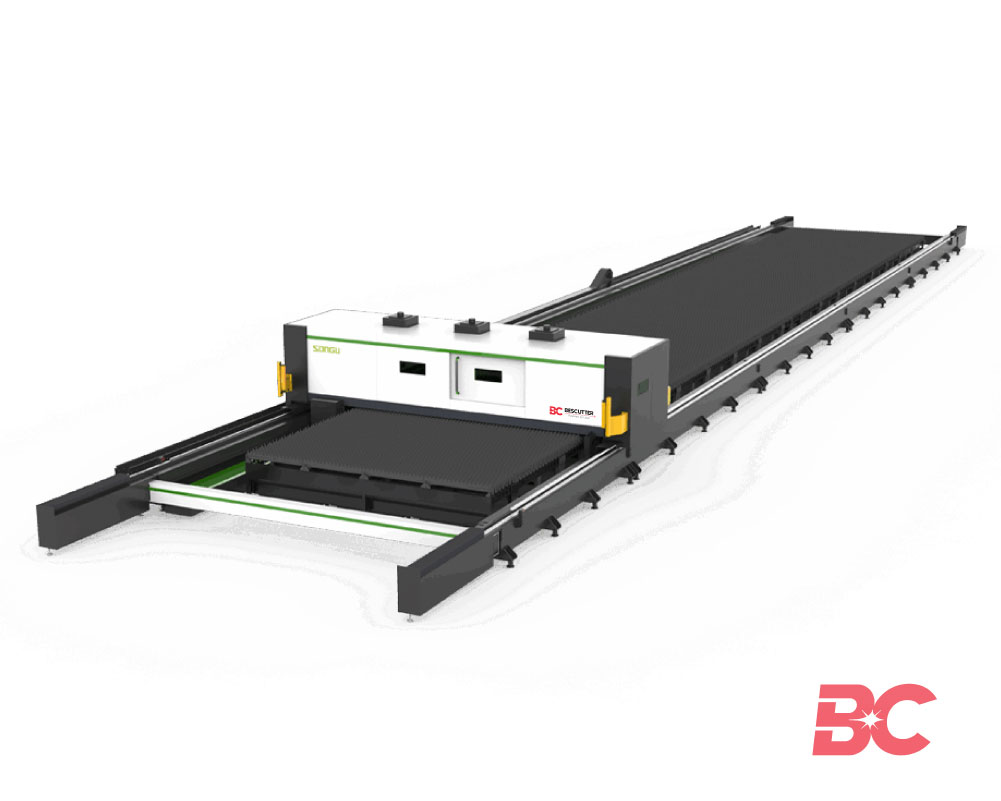

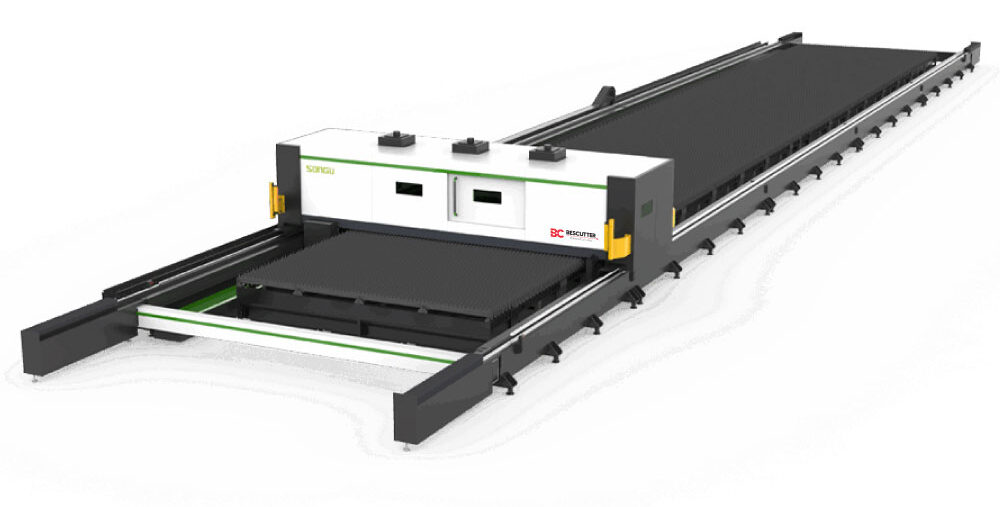

The BesCutter GIGA is our most powerful industrial fiber laser cutting solution, built for precision, automation, and large-scale production. With laser power options from 6,000W to 40,000W, this machine is designed for extreme cutting capabilities in heavy metal fabrication.

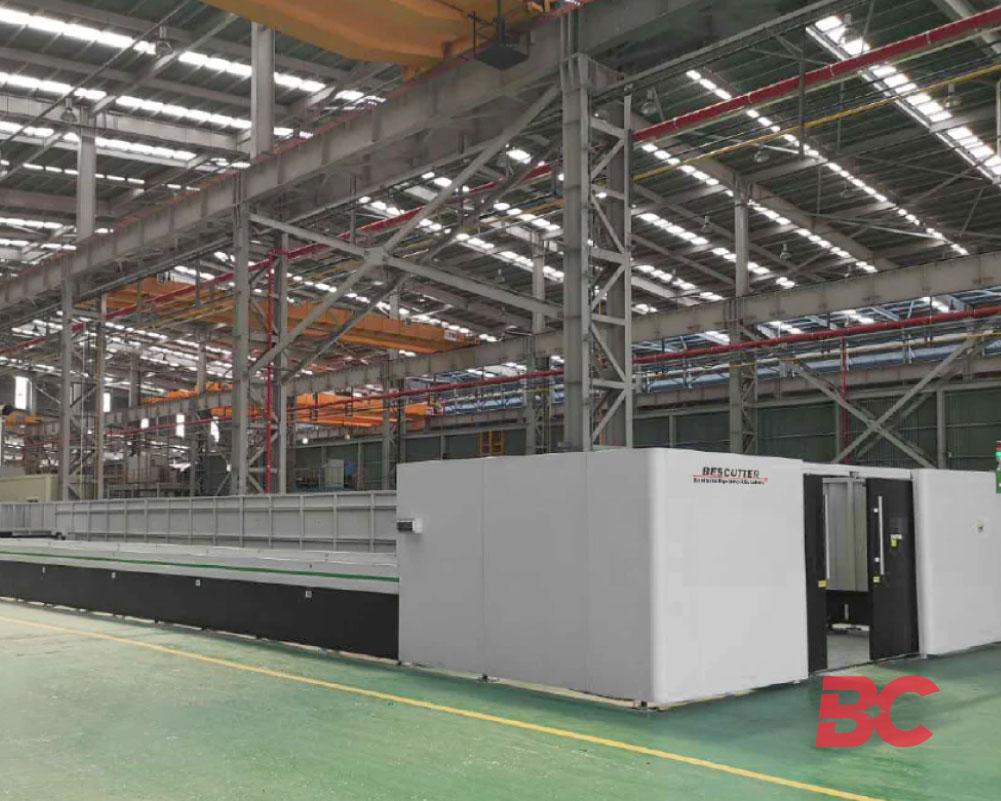

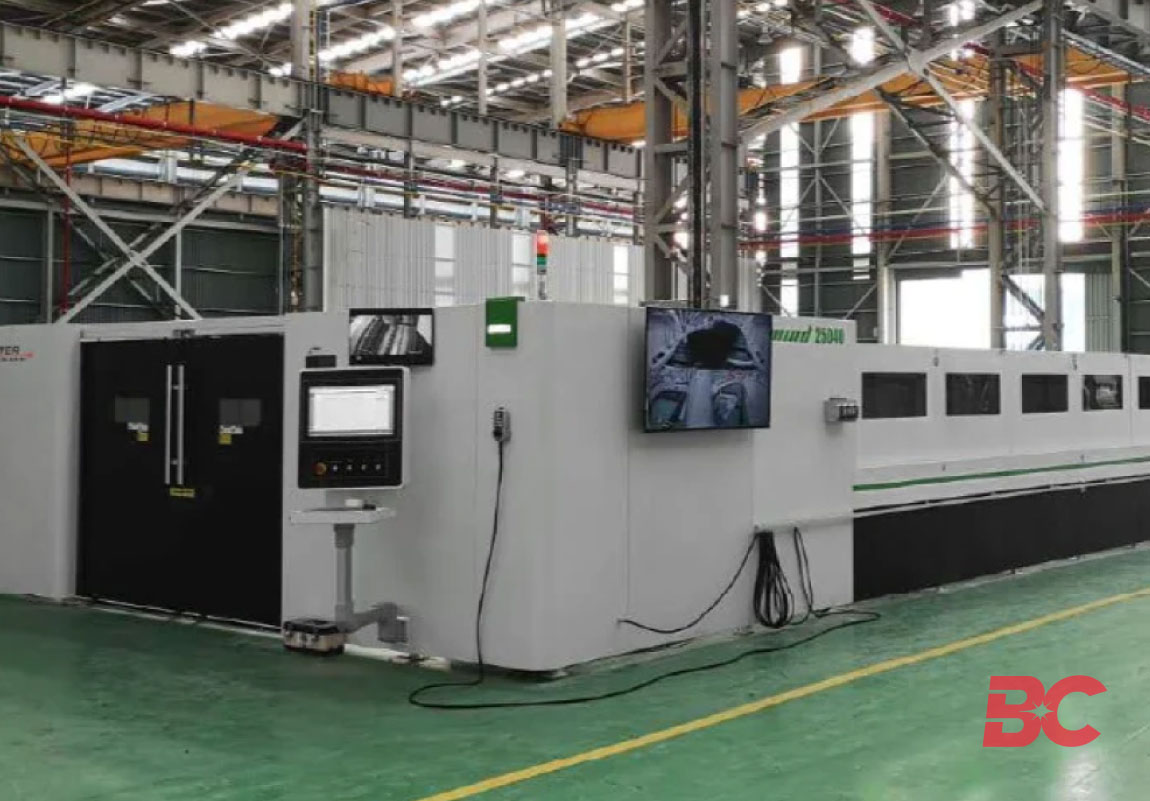

Its fully enclosed housing ensures operator safety and dust control, while the large laser table allows massive-scale production. Equipped with a high-speed direct drive system, robust aviation gantry, and advanced BLT laser head, the GIGA guarantees exceptional accuracy, speed, and reliability. Additionally, Bescutter’s US-based support ensures quick assistance and technical support whenever needed.
Power that fits your needs:
Choose from 6,000W to 40,000W laser power for extreme cutting capabilities. Contact a team member for a free consultation.
Additional Features:
- Massive working area for large-scale industrial applications.
- Advanced BLT auto-focus laser head for consistent cutting quality.
- High-speed motion system with positioning accuracy of ±0.1mm and speed up to 100m/min.
- High-performance servo motors and HIWIN linear guide rails for smooth and precise motion.
- CUSTOMIZABLE SIZE ACCORDING TO CUSTOMER REQUIREMENTS.
FEATURES AT A GLANCE




MACHINE SPECS
Specification Item | Detail |
---|---|
Coordinated Positioning | X, Y Two-axis |
Laser Power | 6,000W – 40,000W |
Laser Table Size | CUSTOMIZABLE SIZE ACCORDING TO CUSTOMER REQUIREMENTS |
Laser Generator | Max Photonics |
Laser Head | BLT Head (Auto Focus) |
Control System | FSCUT8000 |
Water Chiller | Tongfei 40,000 |
Servo Motors | YASKAWA (Japan) |
Rack & Pinion | YYC (High Quality X, Y) |
Gear & Reducer | MOTOREDUCER (High Precision) |
Linear Guide Rails | HIWIN |
Pneumatic Control | AIRTA |
Throttle, Check & Solenoid Valves | Legris/AIGNEP/Airtac/Isaiah |
Proportional Valve | LANN |
Positioning Accuracy | ±0.1 mm |
Re-positioning Accuracy | ±0.05 mm |
Electrical Element | Schneider Electric |

REVIEWS FROM OUR CUSTOMERS
APPLICATION
Shipbuilding, bridge, construction machinery, wind power, aerospace and automotive industry, steel structure, port machinery, etc.

Stainless laser cutting

Aluminum alloy laser cutting

Steel parts laser cutting
