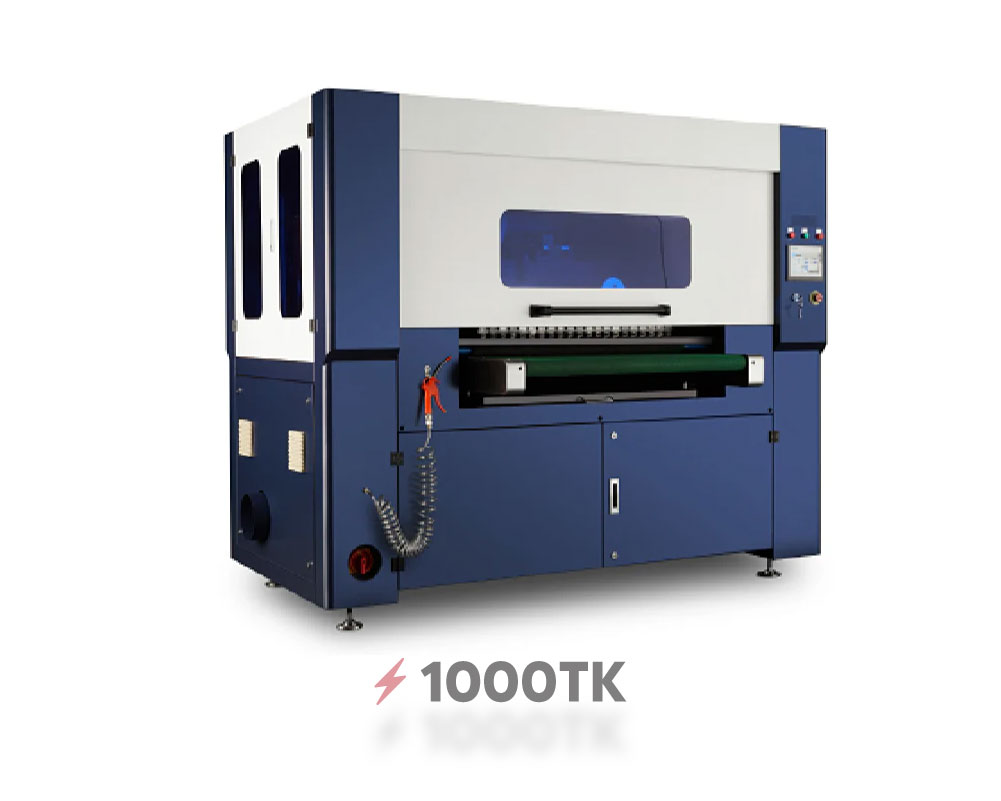

1000TK SERIES

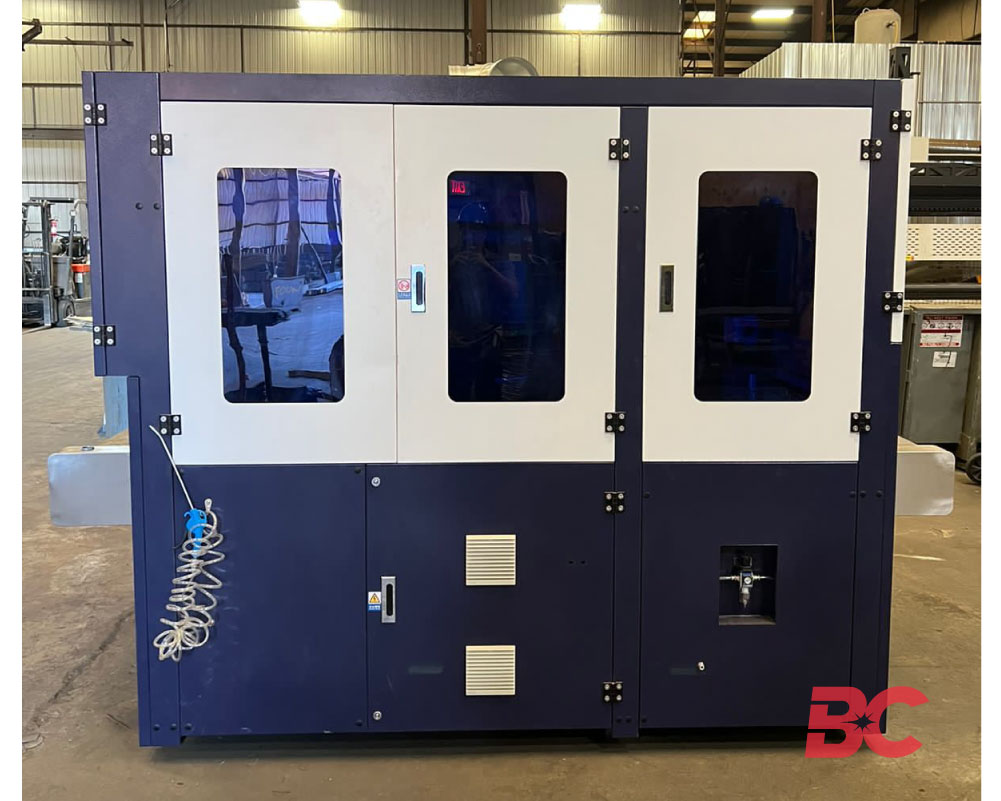

Introducing the 1000TK Automatic Sand Belt Deburring Machine, a cutting-edge solution for achieving flawless surface finishes. This machine boasts a suite of advanced features, including process parameter memory, a dynamic belt balance system, automatic abrasive compensation, and intelligent start/stop functionality.

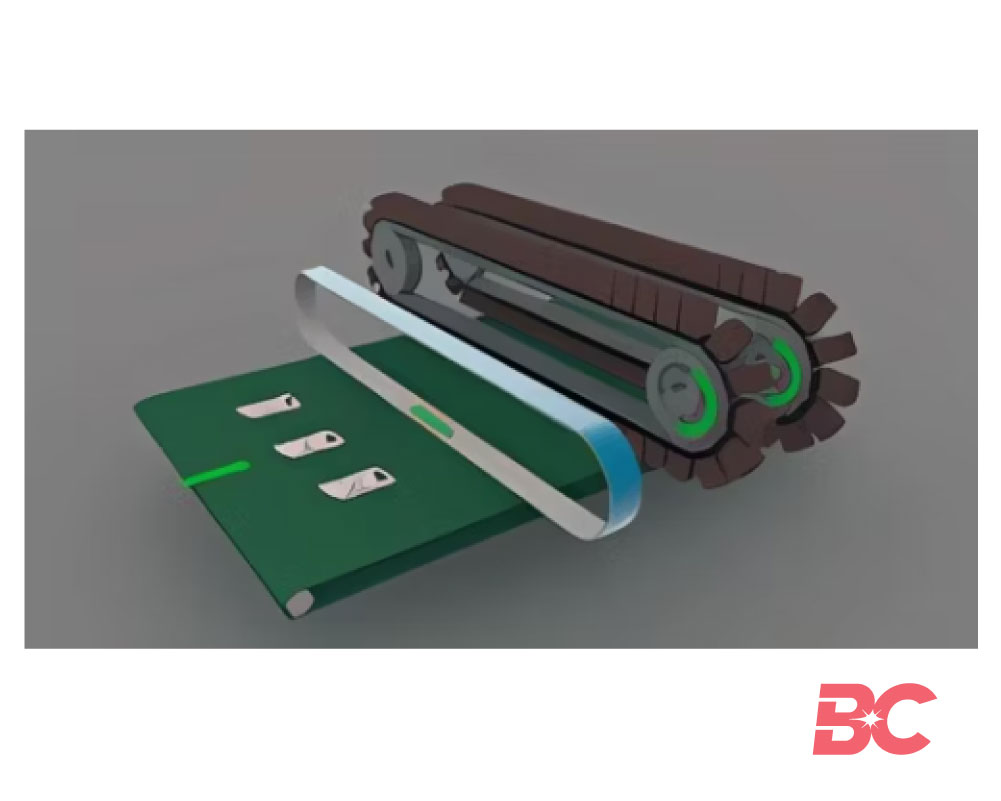

Effectively remove silhouette edge slag, soft and hard burrs, and oxide layers with ease. The 1000TK utilizes a unique combination of triangular sand belts and brush sand clocks across three grinding tool groups, providing a comprehensive polishing process.

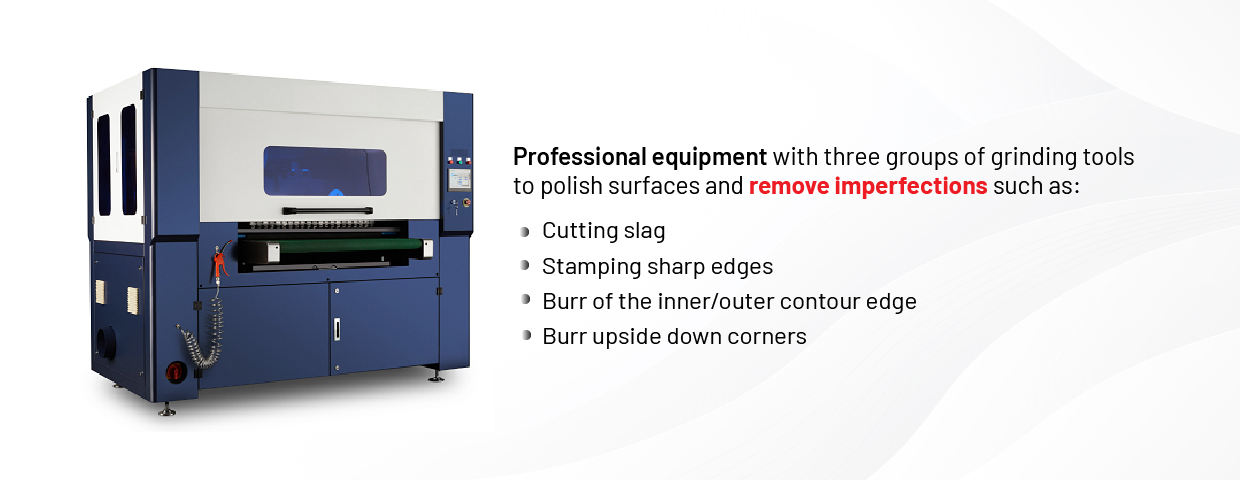

This professional-grade equipment tackles a variety of imperfections, including cutting slag, stamped sharp edges, inner/outer contour edge burrs, and upside-down corner burrs, ensuring a superior finish every time.

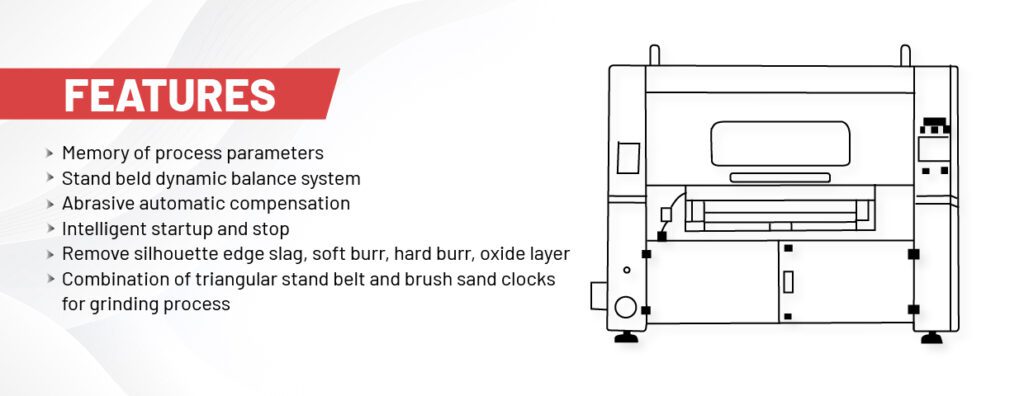

FEATURES AT A GLANCE
MACHINE SPECS
| TECHNICAL SPECIFICATION | DETAILS |
|---|---|

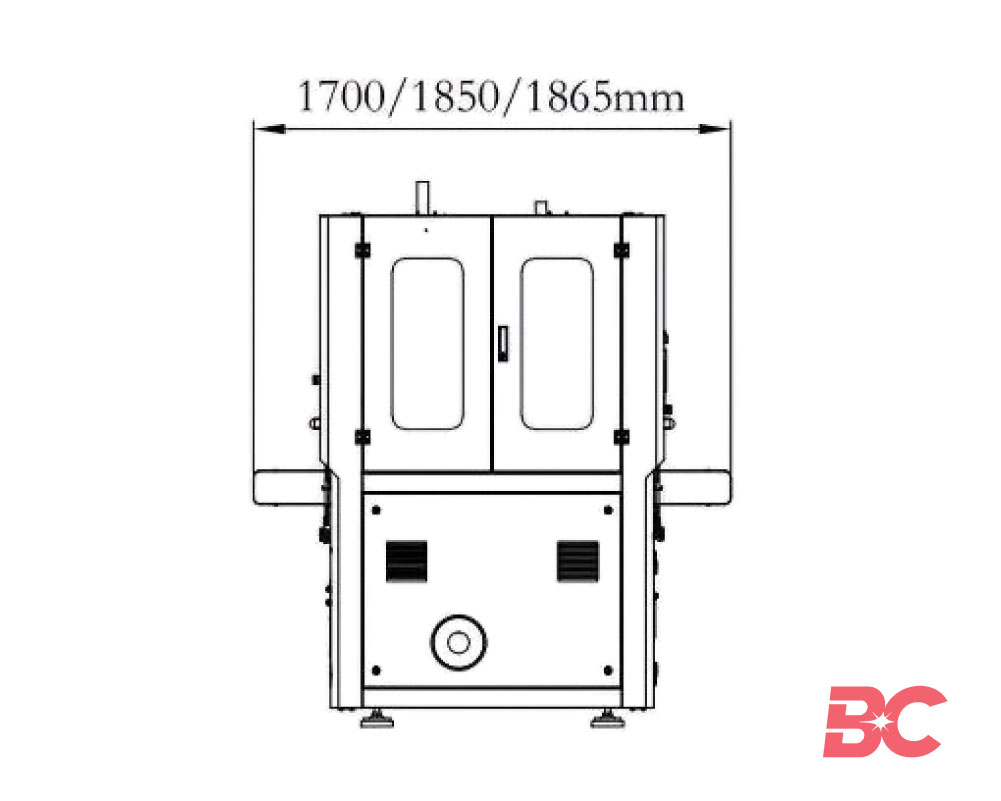

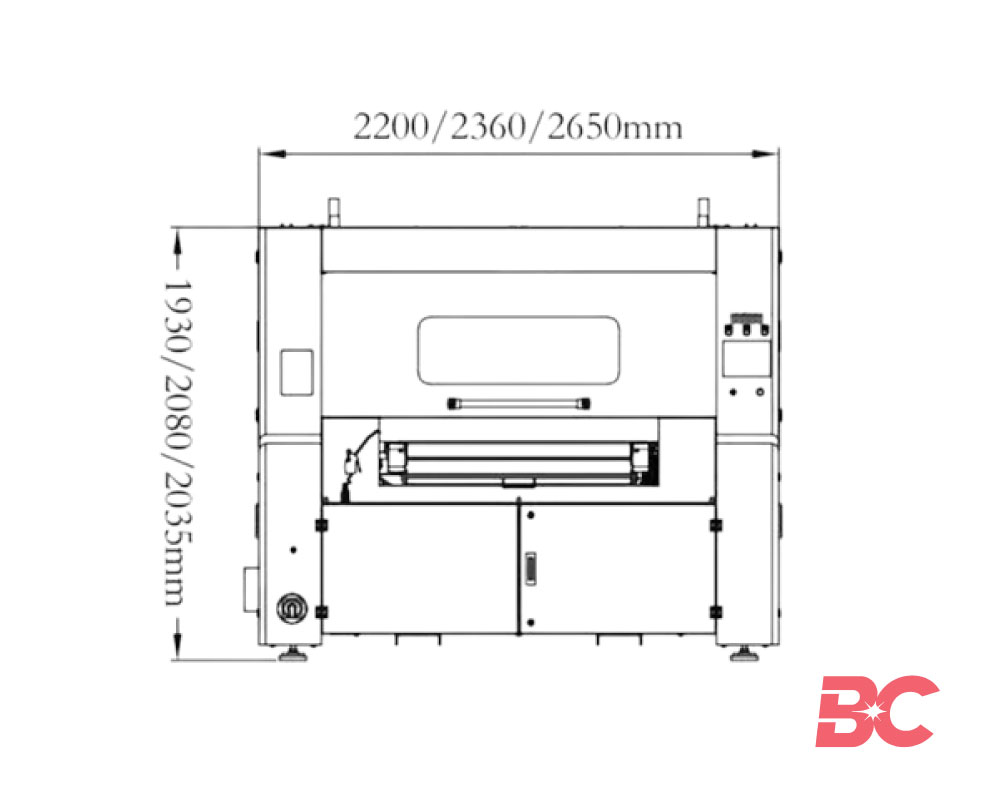

| Mainframe dimensions: | 6'(L)x8'(W)x7'(H) (1850 mm L x 2360 mm W x2080 mm H) |
| Max working width: | 39"(1000mm) |
| Minimum part size: | 6.3"(L) x 0.8"(W) x 0.02"(H) |
| Working thickness: | 0.02-4" (0.5 - 100mm) |
| Conveyor speed: | 31-236 inch/min (0.8- 6 m/min) |
| Sand Belt Speed: | 315-787 inch/s (8-20 m/s) |
| Brush speed: | 295 inch/s (7.5 m/s) |
| Maximum power: | 13 kW |
| Rated voltage: | AC 380V/50Hz |
| Noise / Weight: | 83±2 dB / 5401 lbs (2450kg) |
CONFIGURATION
Abrasive belt configuration
| Abrasive material: | Alumina / Zirconium oxide / Ceramics |
| Abrasive producing area: | Germany/Japan/China |
| Abrasive specification (#): | 40 / 60 / 80 / 120 / 180 |
Sand brush configuration
| Abrasive material: | Alumina / Zirconium oxide / Ceramics |
| Abrasive producing area: | Germany/Japan/China |
| Abrasive specification (#): | 80 / 120 / 180 / 240 / 400 |

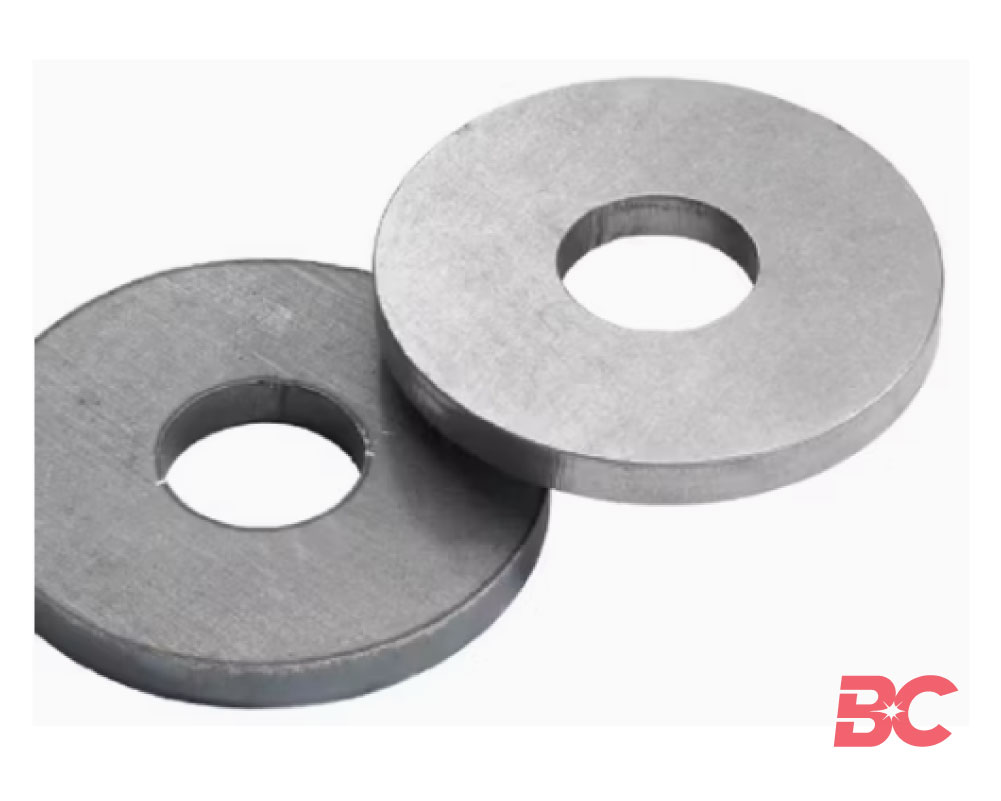

APPLICATIONS
