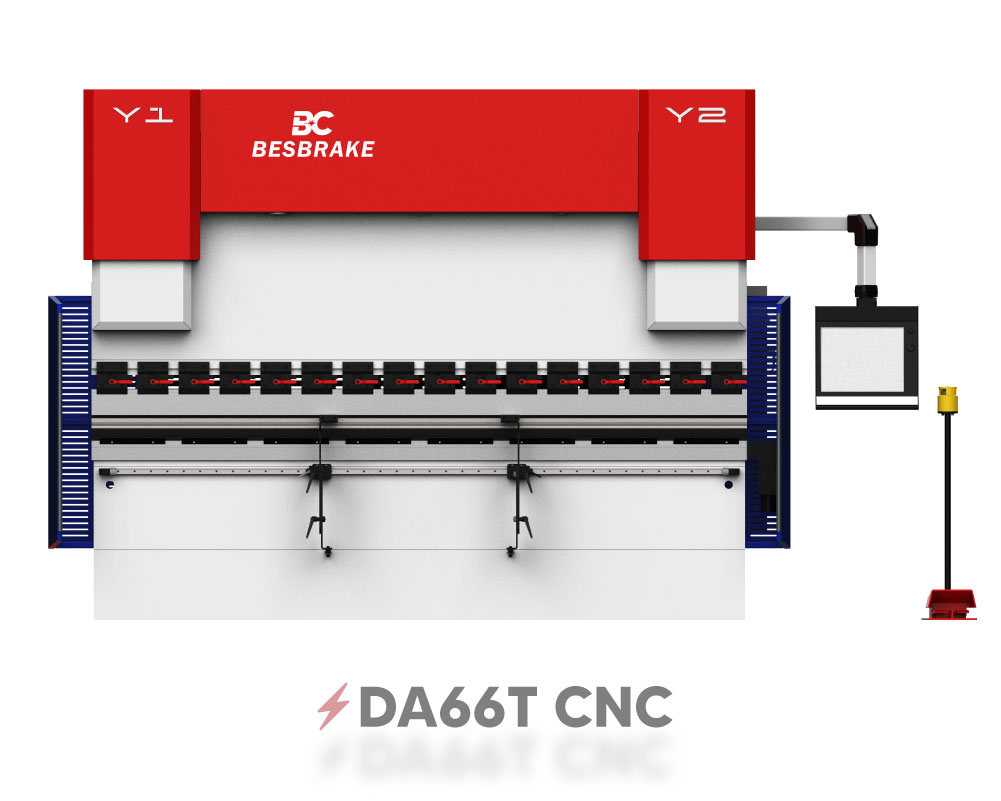

BESCUTTER E SERIES

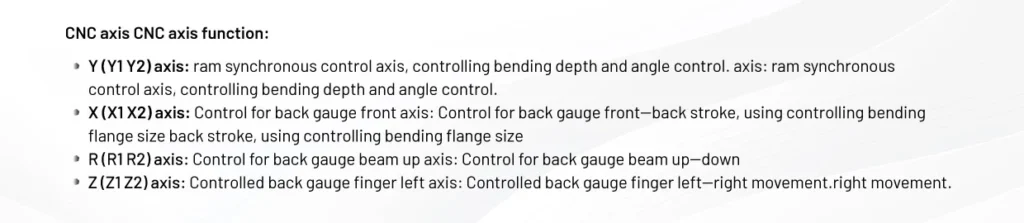

Introducing the BesCutter Electric Servo Press Brake, a high-performance metal forming solution designed for precision and efficiency. This model boasts a 40/70 ton capacity and a 5’/10′ bed length, controlled by the advanced Delem DA66T system. Standard features include 6+1 axis control (Y1, Y2, X, R, Z1, Z2 + V), Fagor grating rulers, Bosch-Rexroth or HAWE proportional servo valves, an Eckerle oil pump, and PMI ball screws and linear guides.
- Overall Welded and processed structure.
- Closed loop control mode composed of electric-hydraulic servo valve and measure ruler.
- Ensure the highest control precision, bending accuracy and repositioning accuracy are also reach to the highest level. Back gauge mechanism can be multi-axes controlled.
- Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
HIGHLIGHTED FEATURES
MACHINE SPECS
| Specification Item | Details |
|---|---|

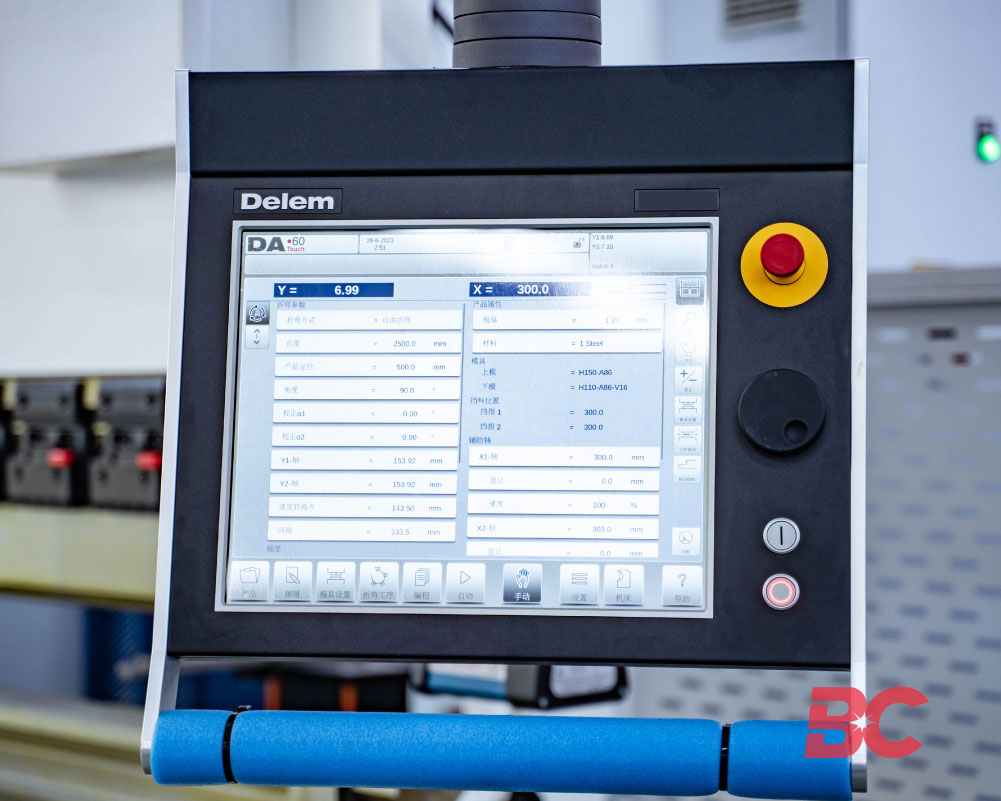

| CNC System | DA66T (6+1 Axis) / Holland DELEM |
| Hydraulic System | HAWE (Germany) |
| Pump | Sunny (USA) |
| Electrical Element | Schneider |
| Servo Motor and Driver | Inovance (China) |

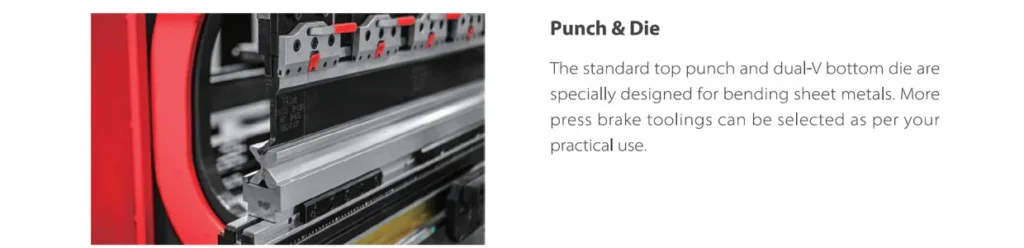

| Toolings | Upper punch and die one set |

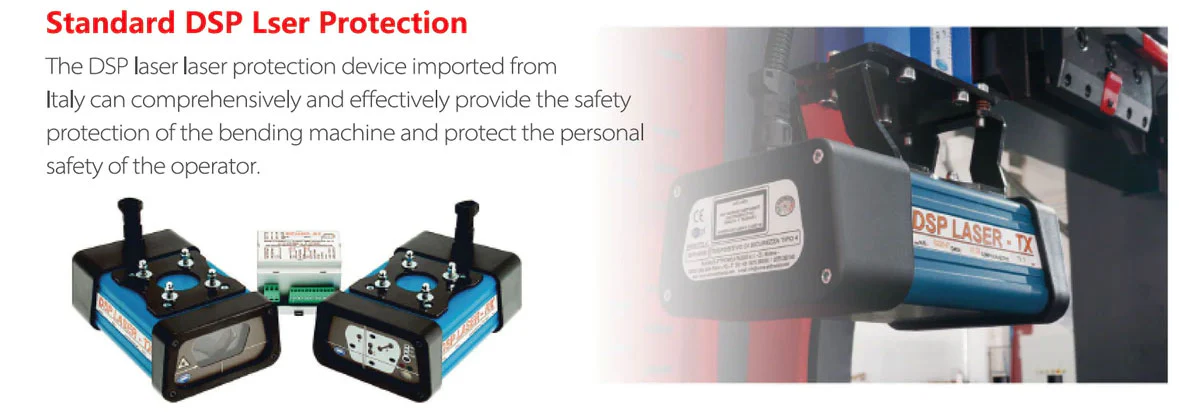

| Laser Protection | DSP laser curtain (Italy) |
| Crowing | Automatic |
