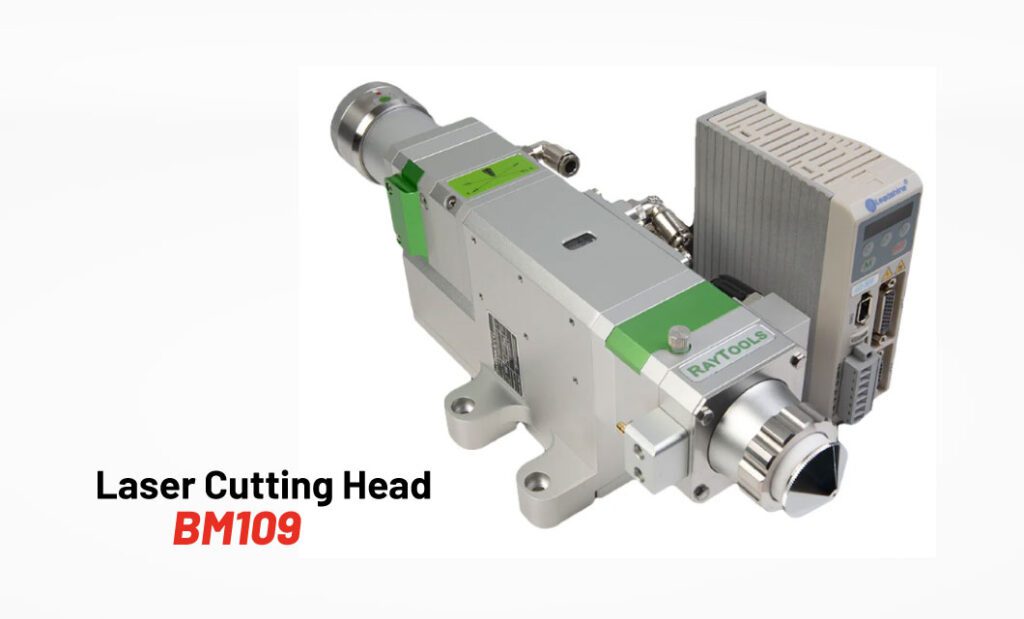

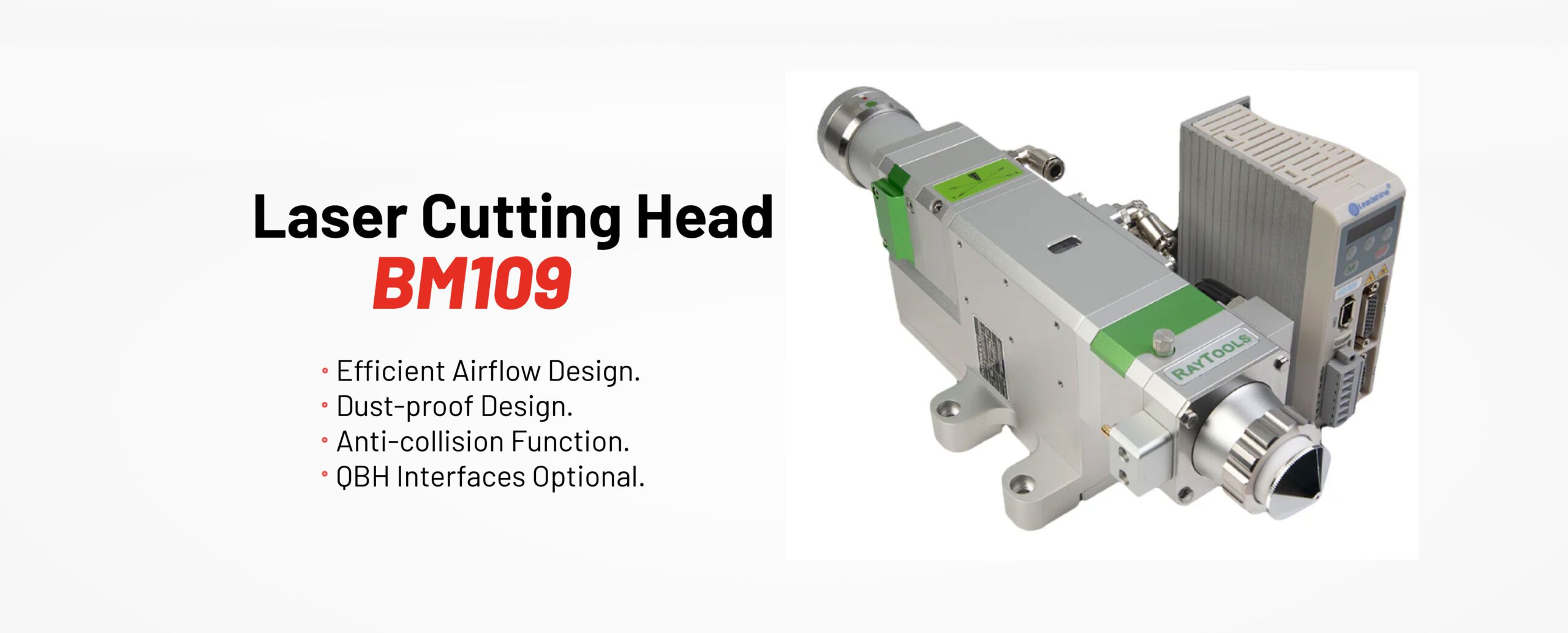

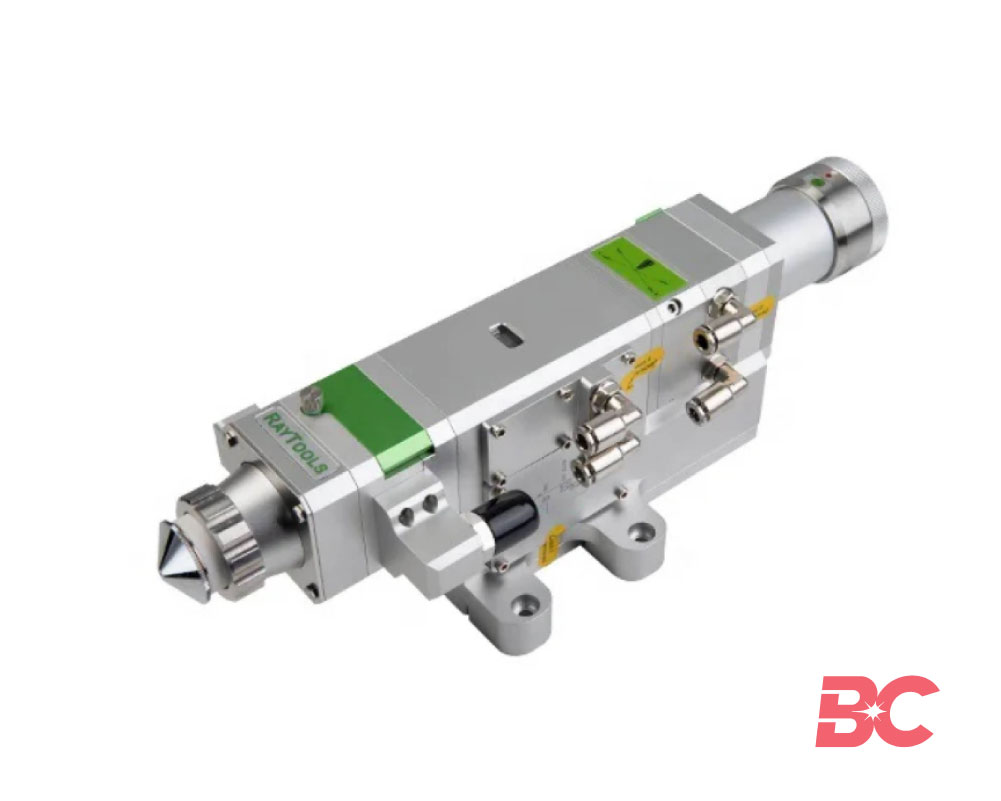

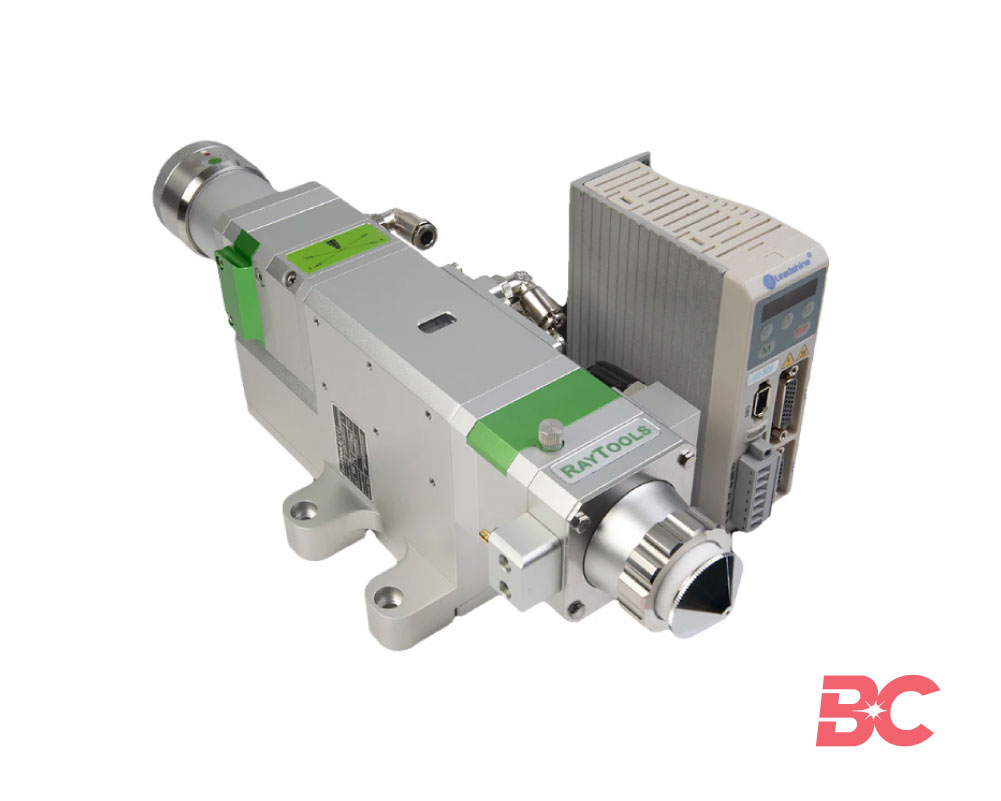

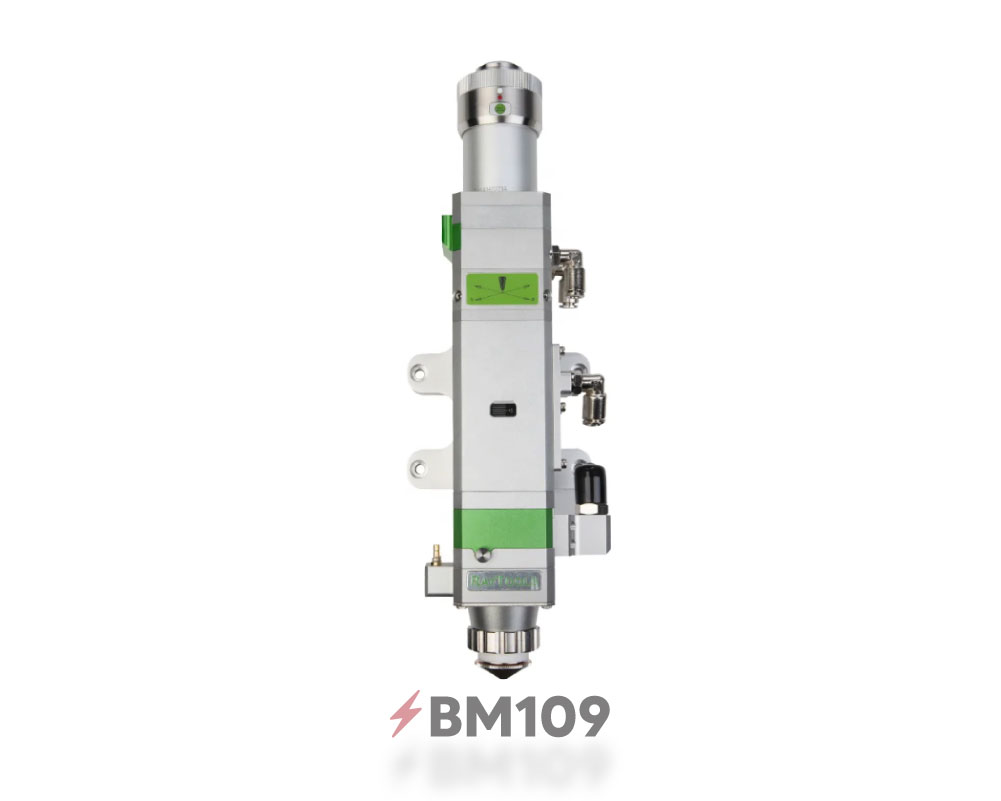

RayTools BM109 Series Auto-Focusing Laser Head for 1.5KW

RayTools BM109

Series 1.5KW | Fiber Laser Cutting Head | Auto-Focusing

Features:

Auto-focus range is +8～-9mm, Accuracy is 0.05mm.
D28 diameters lens set, the maximum optical input power is 1.5KW.
The maximum acceleration of the focusing lense is 10m/s2, the maximum speed is 6m/min.
The collimator lens and focusing lens are all protected by cover glass modules, which can effectively protect the collimator lens and focusing lens from contamination.
Drawer-type of lens mount, quick and easy access to the cover glass.

Original price was: $3,000.00.Current price is: $2,200.00.

BM109 SERIES

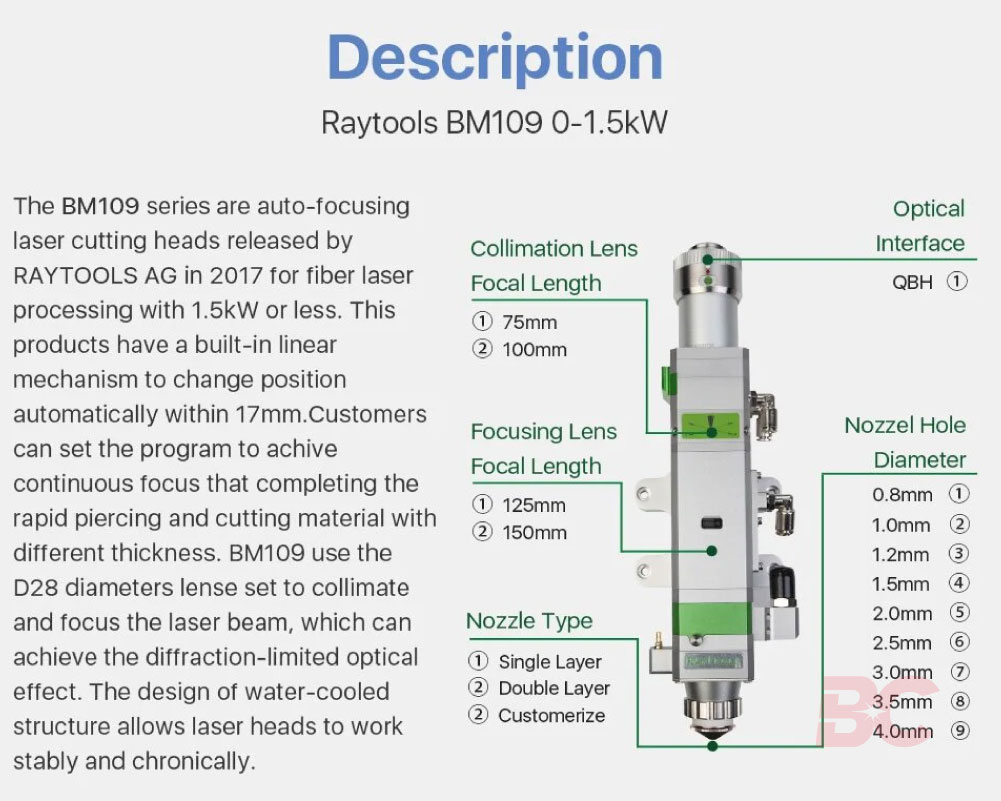

The BM109 series are auto-focusing laser cutting heads released by RAYTOOLS AG in 2017 for fiber laser processing with 1.5kW or less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position automatically within 17mm.Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting material with different thickness. BM109 use the D28 diameter lenses set to collimate and focus the laser beam, which can achieve the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically.
