TUBE NINJA 4 IN AND SMALLER
Fiber Laser Tube Cutting Machine With Automation
KEY SPECS
The Tube Ninja Fiber Laser Cutting Machine from BesCutter is designed for high-speed and precise cutting of small and medium-sized pipes. It features advanced automation for loading, cutting, and unloading, optimizing production while reducing labor costs. With its intelligent height sensor and cutting system software, it ensures maximum accuracy and efficiency.

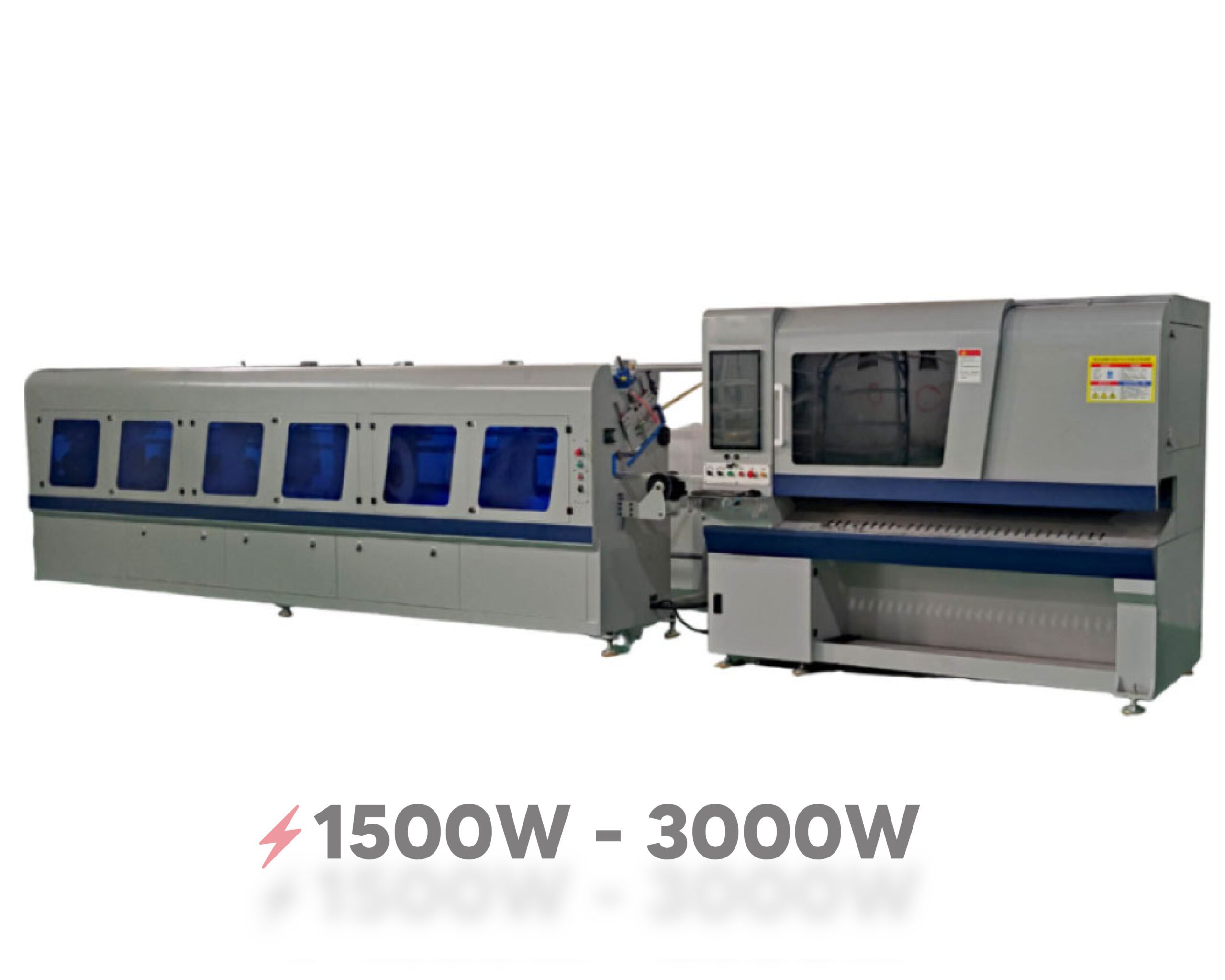

- 1,500W – 3,000W Laser Power.
- Cuts Pipe Diameters From 6Mm To 115Mm.
- High-Speed Automatic Loading And Unloading System.
TUBE NINJA SERIES

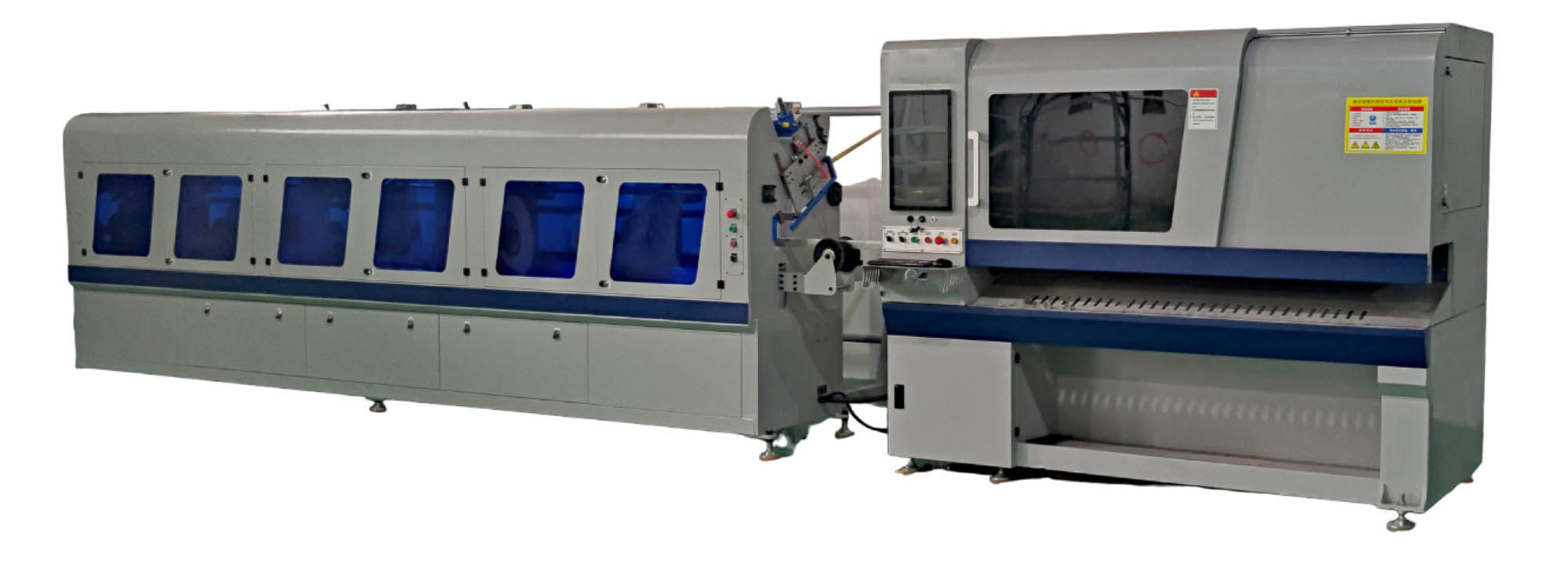

The BesCutter Tube Ninja is a high-performance, semi-automatic fiber laser cutting machine tailored for small and medium-sized pipes. Engineered for precision and speed, it offers automated cutting and unloading, making it a cost-effective solution for businesses seeking efficiency.

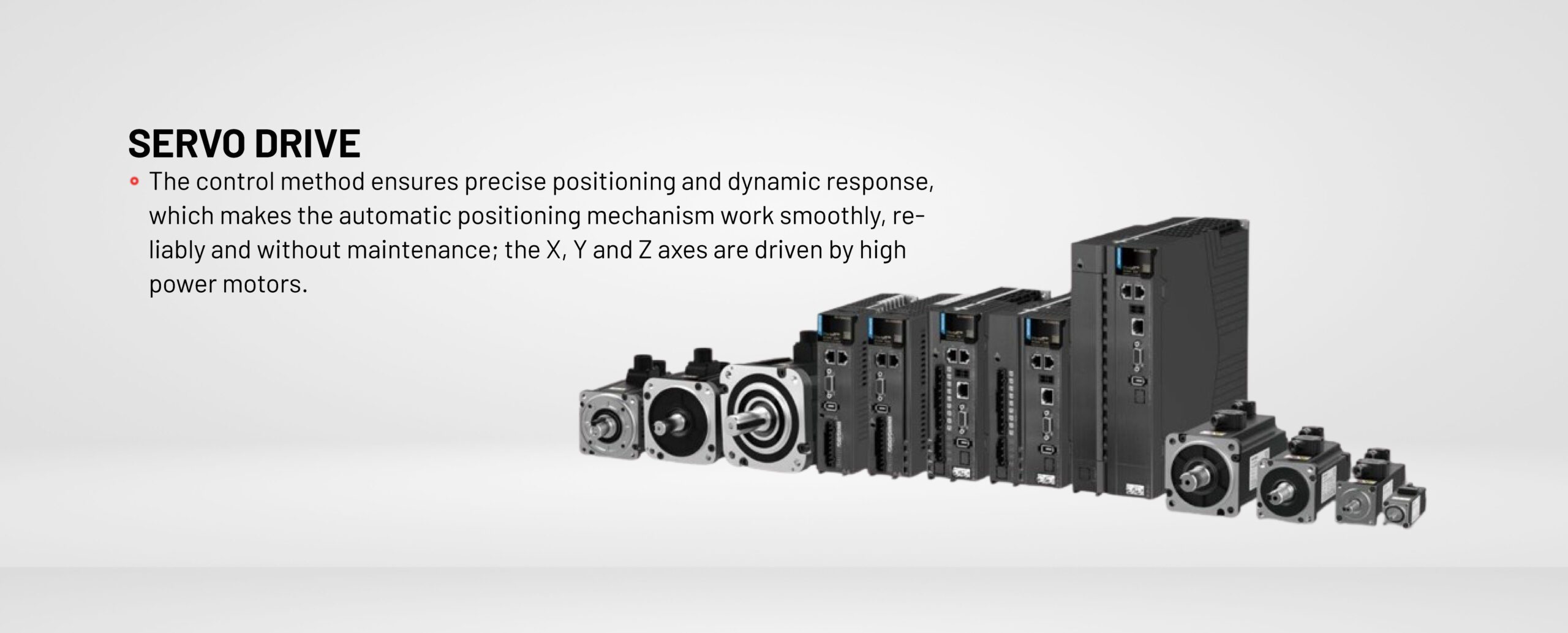

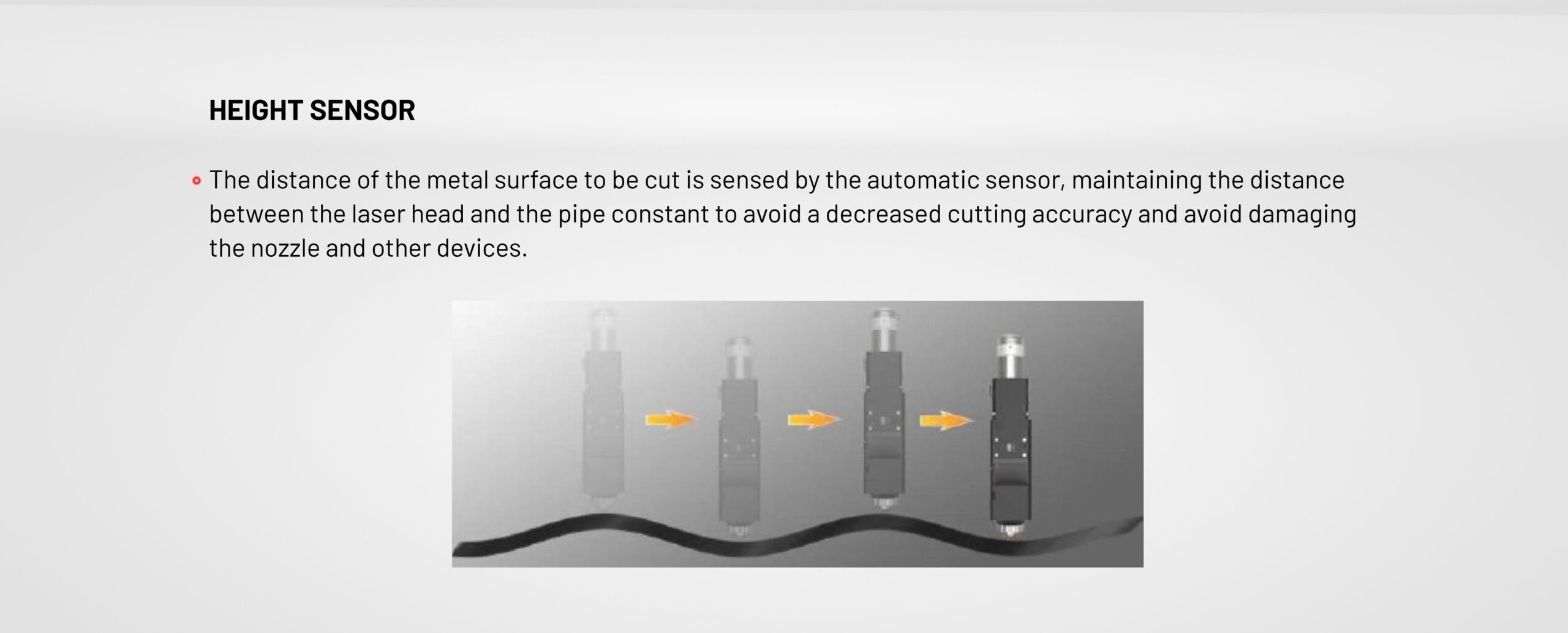

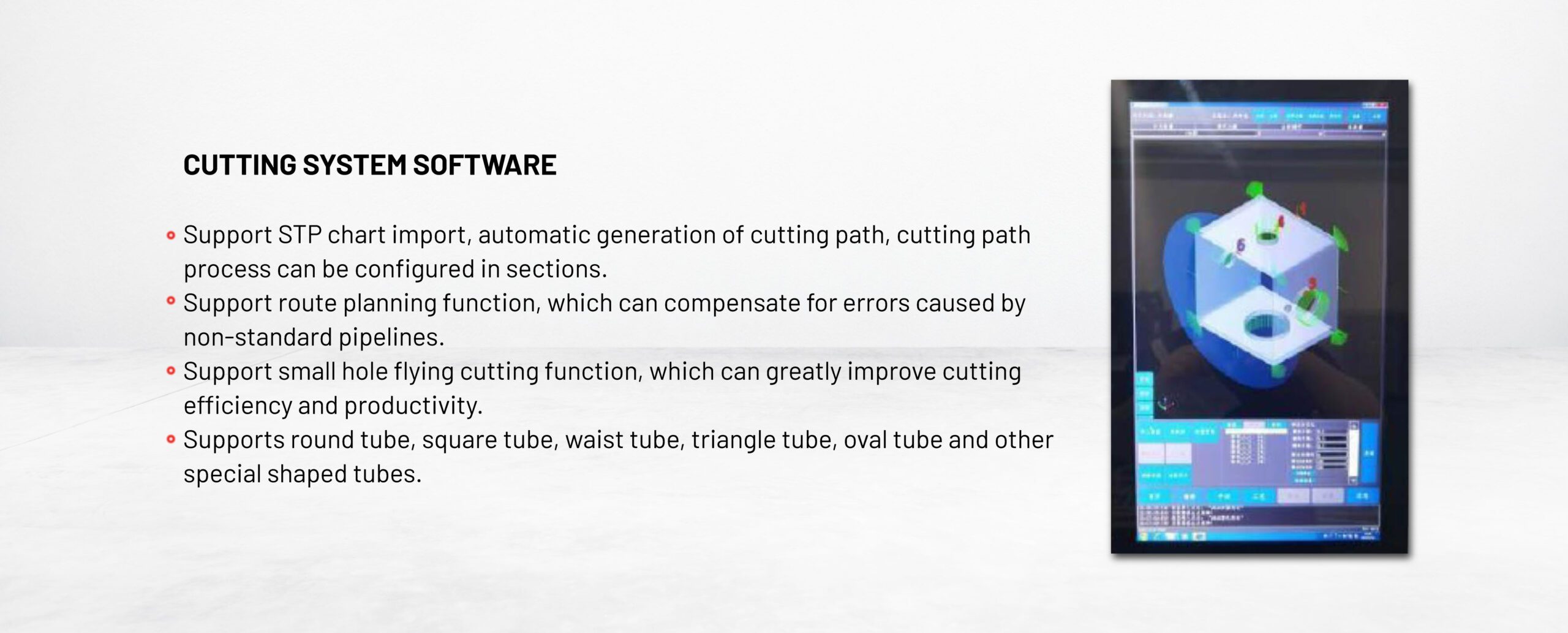

The machine includes an intelligent height sensor for enhanced tracking, a powerful servo-driven system for smooth operation, and cutting-edge software that allows for seamless cutting path configuration.
Power That Fits Your Needs:
Choose from 1,500W to 3,000W laser power to match your cutting requirements. Contact a team member for a free consultation.
Cutting Capabilities:
- Carbon Steel: Up to 1/4″
- Stainless Steel: Up to 3/16″
- Aluminum: Up to 1/8″
- Brass: Up to 1/8″
HIGHLIGHTED FEATURES
FEATURES AT A GLANCE
MACHINE SPECS
| Specification Item | Details |
|---|---|
| Laser Power | 1,500W / 3,000W |
| Tube Diameter | φ6 – φ115mm (Workpiece circumcircle) |
| Complete Consumption | 19KW |
| XYZ Axis Position Accuracy | ≤ ±0.05mm |
| XYZ Axis Repeat Position Accuracy | ≤ ±0.02mm |
| Minimum Cutting Kerf | 0.15mm |
| Acceleration | 1.8G |
| Max RPM | 160 |
| Machine Weight | 2T (2,000kg) |
| Machine Size | 334″ × 70″ × 70″ (8,500 × 1,800 × 1,800 mm) |
| Power Supply | AC 380V (±10%) 50/60 Hz |
✔️ "All Inclusive" Package
We transport, install and train in detail without limit of operators, all in your factory and with your projects.
✔️ Warranty Included
Our unlimited warranty is top notch
✔️ On site and Online Support
We provide online support and if you require an in-person visit, we travel from our nearest office.

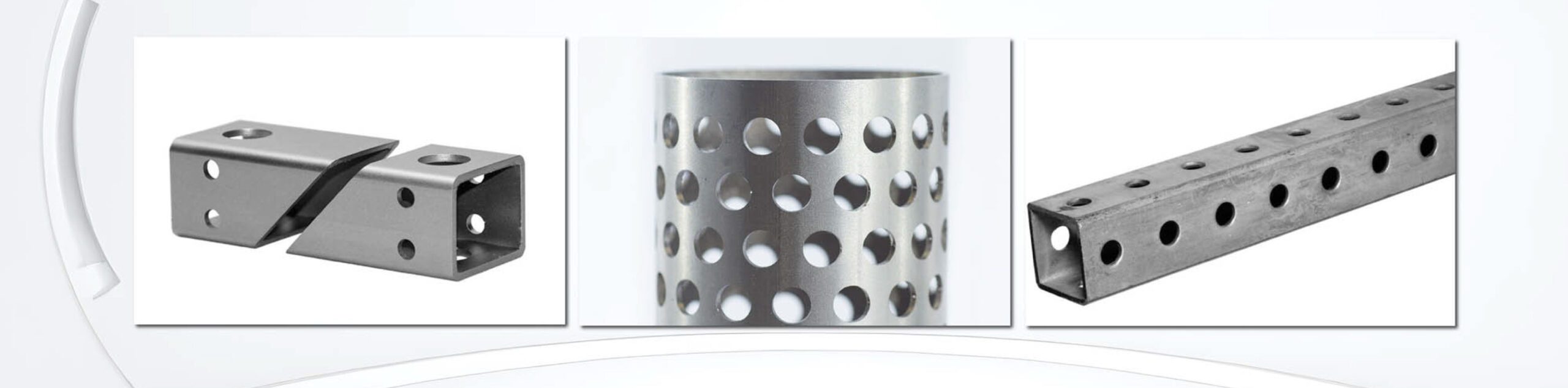

SAMPLES
