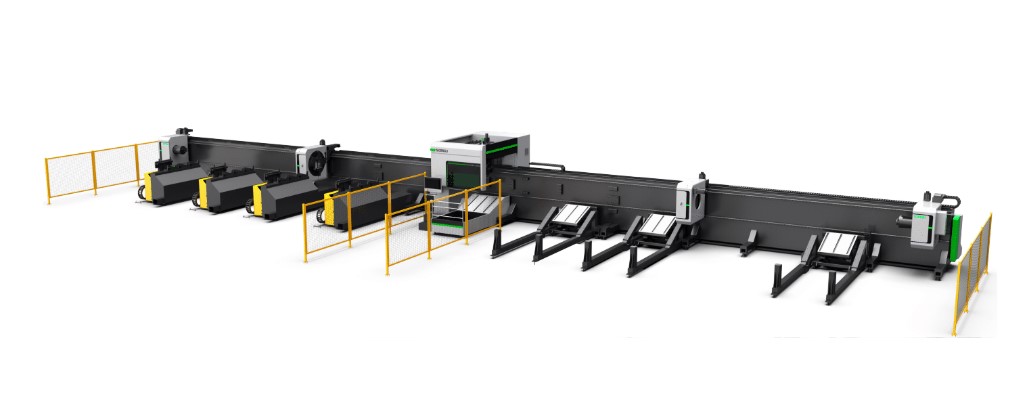

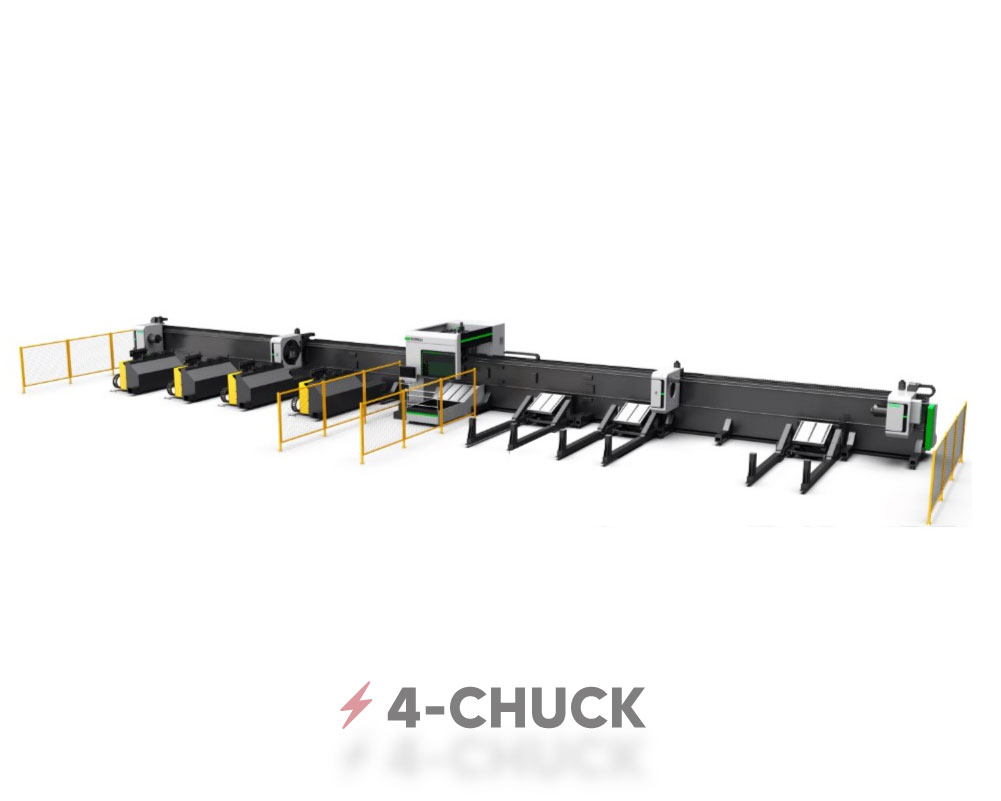

4-CHUCK HEAVY TUBE CUT
Fiber Laser Pipe Cutting Machine with Auto Loading
KEY SPECS
The HyTube 4-Chuck Fiber Laser Cutting Machine is designed for heavy-duty industrial applications, offering precision, high-speed performance, and full automation for tube and profile cutting. With a 4-chuck system, it ensures zero-tail cutting, maximizing material usage and efficiency.
- 1500W – 6000W Laser Power.
- Cuts Round, Square, Oval, Triangle, And Profile Steel Tubes.
- Fully Automated Loading And Unloading System.
- Us-Based Support.
- Fscut5000 Control System & Tubepro 3D Cutting Software.
Contact Us for More Information
4-CHUCK HEAVY TUBE CUT
The Bescutter HyTube 4-Chuck is a high-performance fiber laser cutting system built for long and heavy tube processing with unmatched accuracy and efficiency. Engineered for industrial manufacturing, it features a zero-tail cutting system, automatic loading/unloading, and intelligent nesting software to optimize production time.
Power That Fits Your Needs
The HyTube 4-Chuck comes with laser power ranging from 1500W to 6000W, making it highly adaptable for diverse material thicknesses and cutting applications.
Key Features:
- 4-Chuck Design: Supports 12-meter-long tubes, heavy-duty processing, and enhanced stability.
- Zero-Tail Cutting: Maximizes material utilization, reducing waste and improving efficiency.
- High-speed operation: Positioning speed up to 50 m/min, ensuring rapid processing.
- Bevel Cutting Capabilities: Supports cutting angles up to ±45°.
- TubePro 3D Cutting Software: Intelligent cutting software for complex tube profiles and nesting optimization.
ADVANTAGES
Cutting the cost

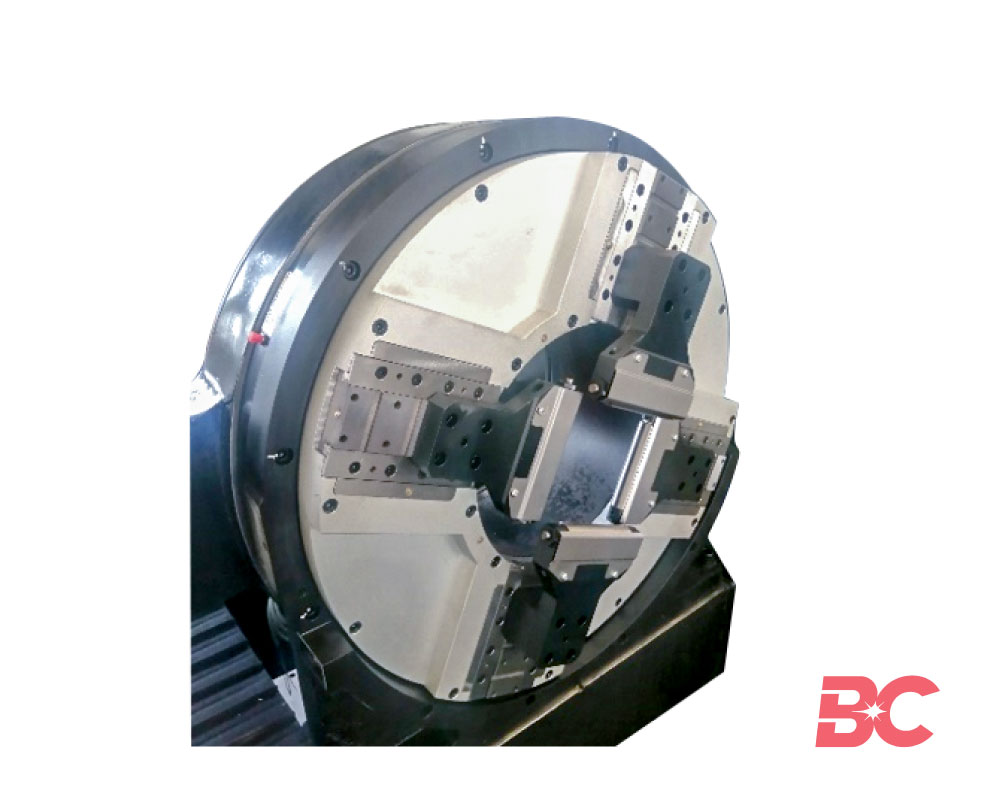

Cutting the costAutomatic tightening of the pneumatic self-centering chuck, the clamping process does not require manual intervention, can achieve zero tailing processing, and avoid pipe waste.
- Professional software

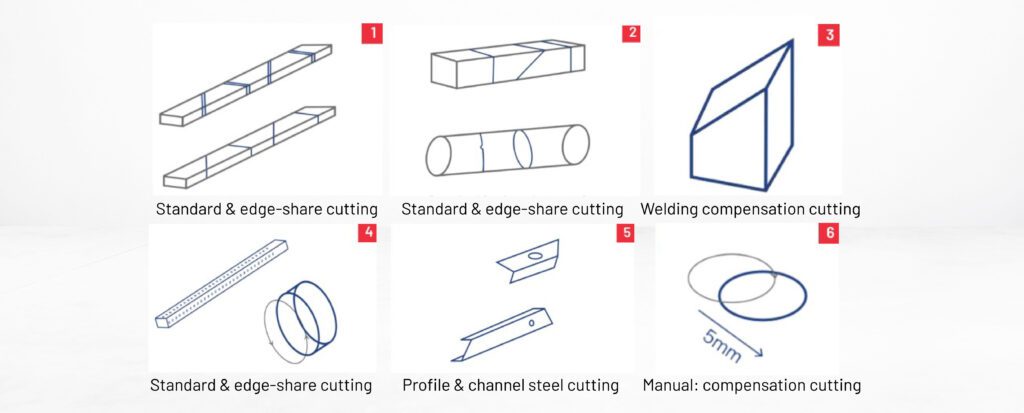

Equipped with professional pipe cutting software and built-in intelligent nesting and layout software,high-efficiency cutting and bevel cutting.
- 4-chuck structure design

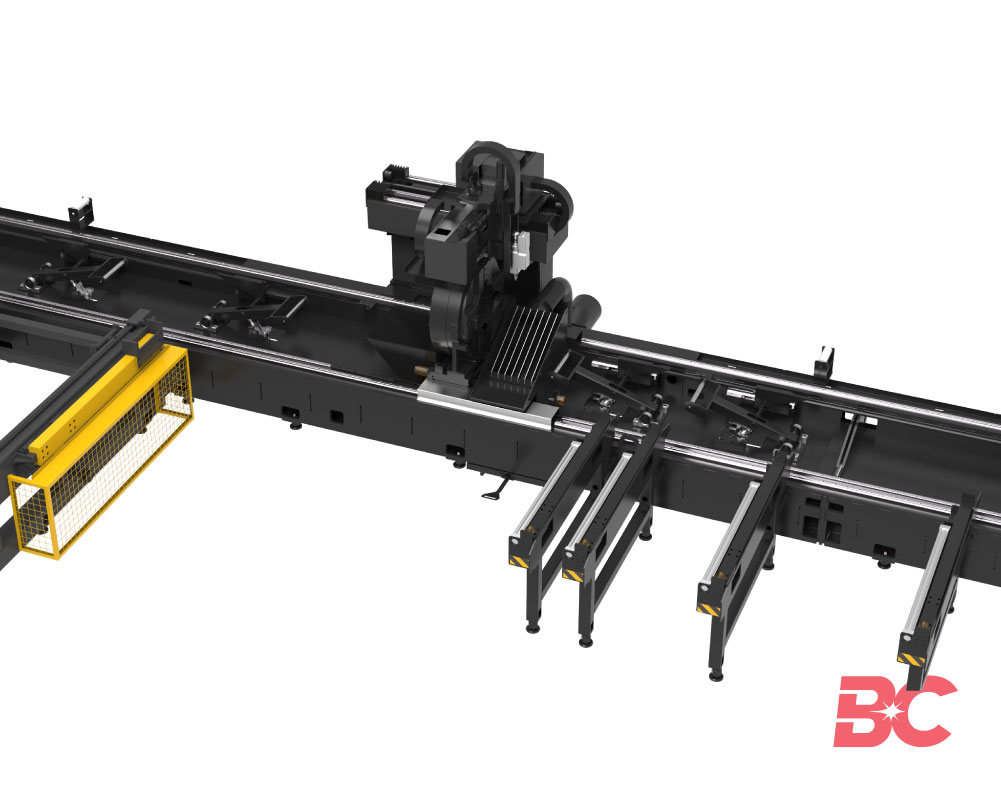

4-chuck structure design, the four chucks can move freely, reasonably share the weight of the loaded pipe, stabilize the support, prevent the pipe form swinging, and ensure accurate cutting and safe cutting.
- Compact and reasonable

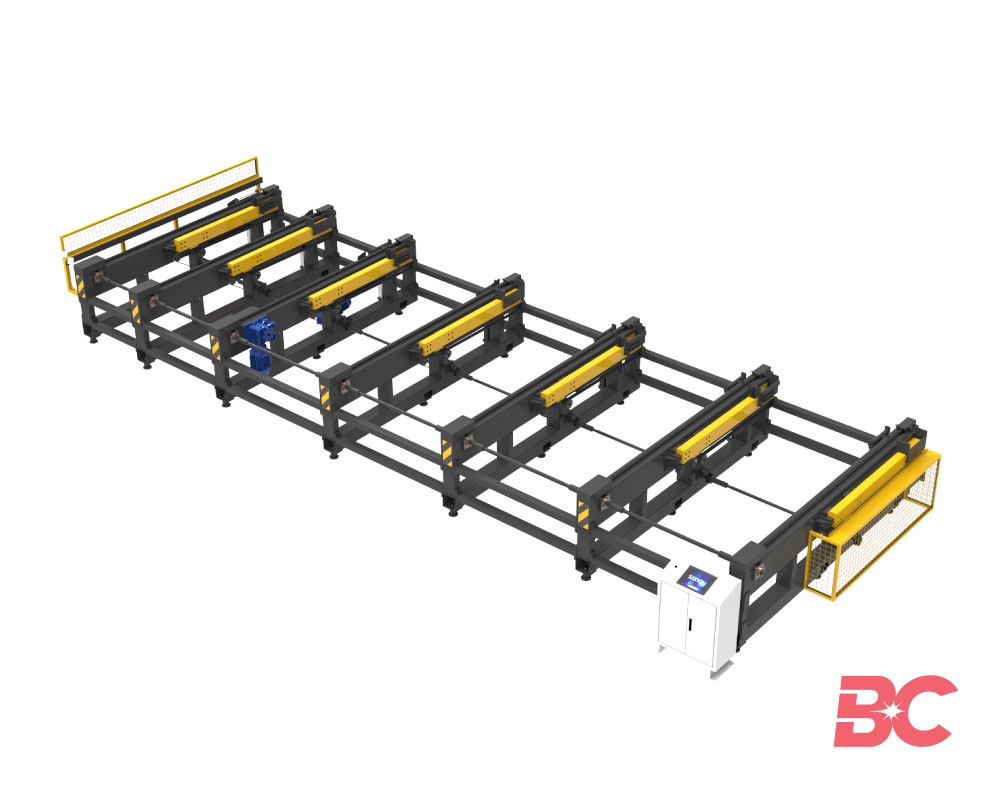

Optional automatic loading and unloading device, the overall layout is compact and reasonable, the floor space is small, saving production land, reducing labor, and improving production efficiency.
- Digital production
Independent R&D of core numerical control system, support EtherCAT digital bus communication.
- Modular design
Z-axis drive adopts modular dive unit, double slider design, good rigidity, light preload, effectively reduces the vibration of the cutting head during high-speed motion, and improves the accuracy of interpolation trajectory.
FEATURES AT A GLANCE
MACHINE SPECS
| Specification Item | Details |
|---|---|
| Laser Power | 3000W - 12000W |
| Working Range | Ø50mm - Ø500mm × 12500mm |
| Max Running Speed | 40 rpm/min |
| Max Positioning Speed | 50 m/min |
| Acceleration | 0.3G |
| Loading Capacity | 1400 KG |
| Positioning Accuracy | ±0.05 mm/m |
| Autoloading Length | 6000 - 12000 mm |
| Auto Un-loading Length | 12000 mm |
| Loading Cycle Time | < 90 s |
| Bevel Cut Range | ±45° |
| Exhausting Area | Near the cutting area |
| Machine Weight | Approximately 23000 kg (machine body only) |
| Dimension | 30400 × 3600 × 3200 mm (not including loading & unloading) |
✔️ "All Inclusive" Package
We transport, install and train in detail without limit of operators, all in your factory and with your projects.
✔️ Warranty Included
Our unlimited warranty is top notch
✔️ On site and Online Support
We provide online support and if you require an in-person visit, we travel from our nearest office.
APPLICATION
Apply to various pipes such as carbon steel, aluminum alloy, titanium alloy, galvanized, galvanized aluminium, brass, copper and other pipe cutting.
