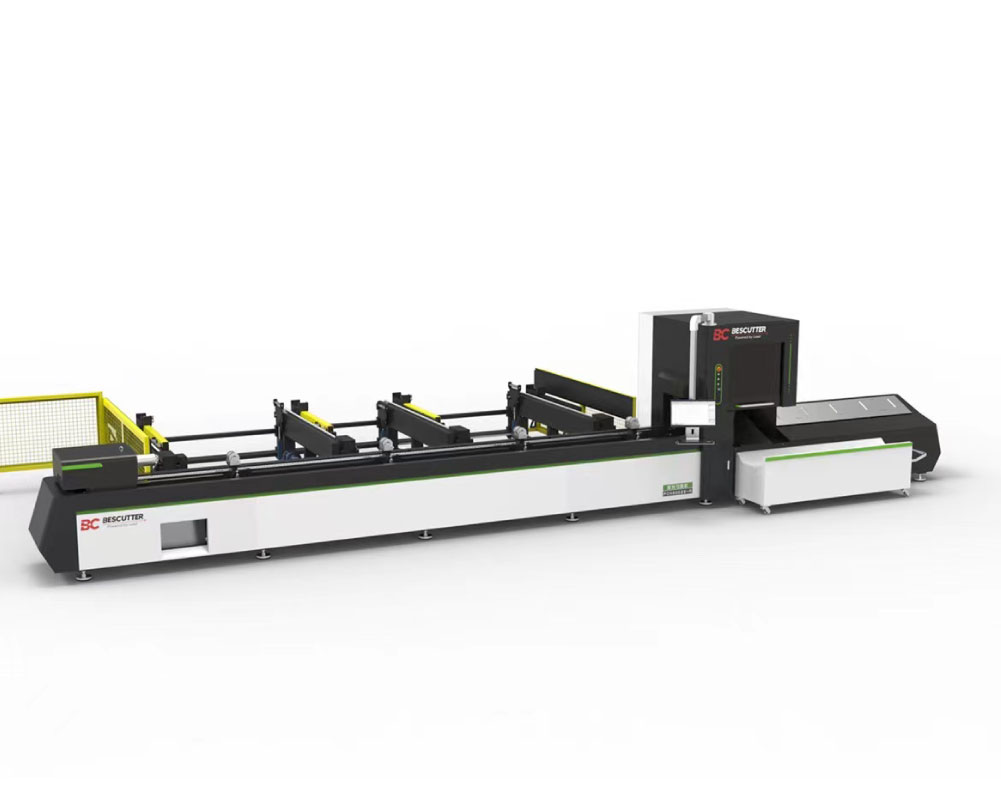

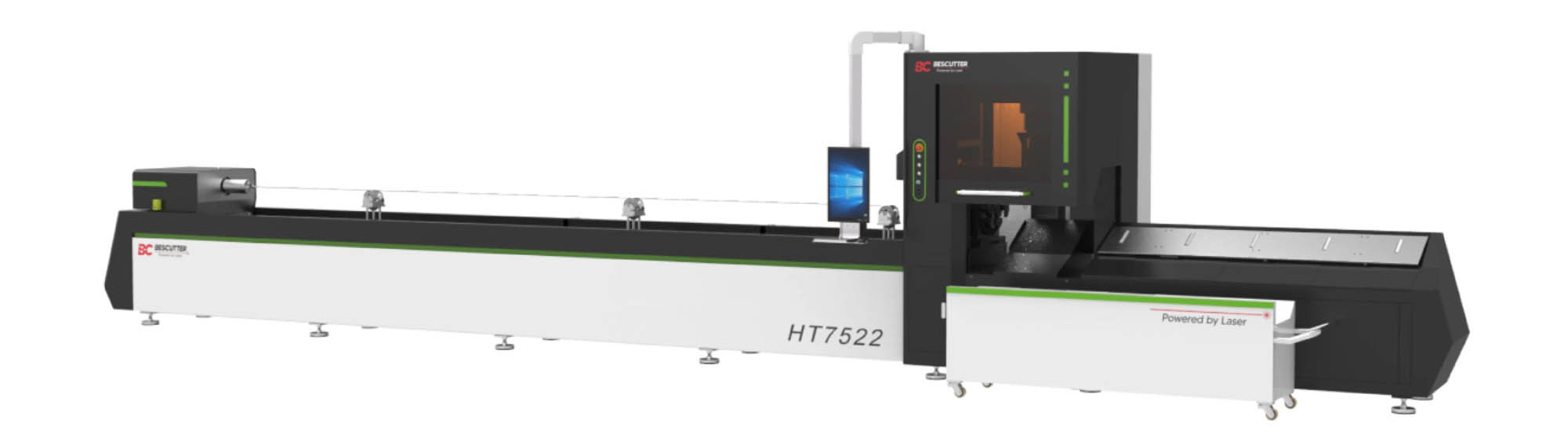

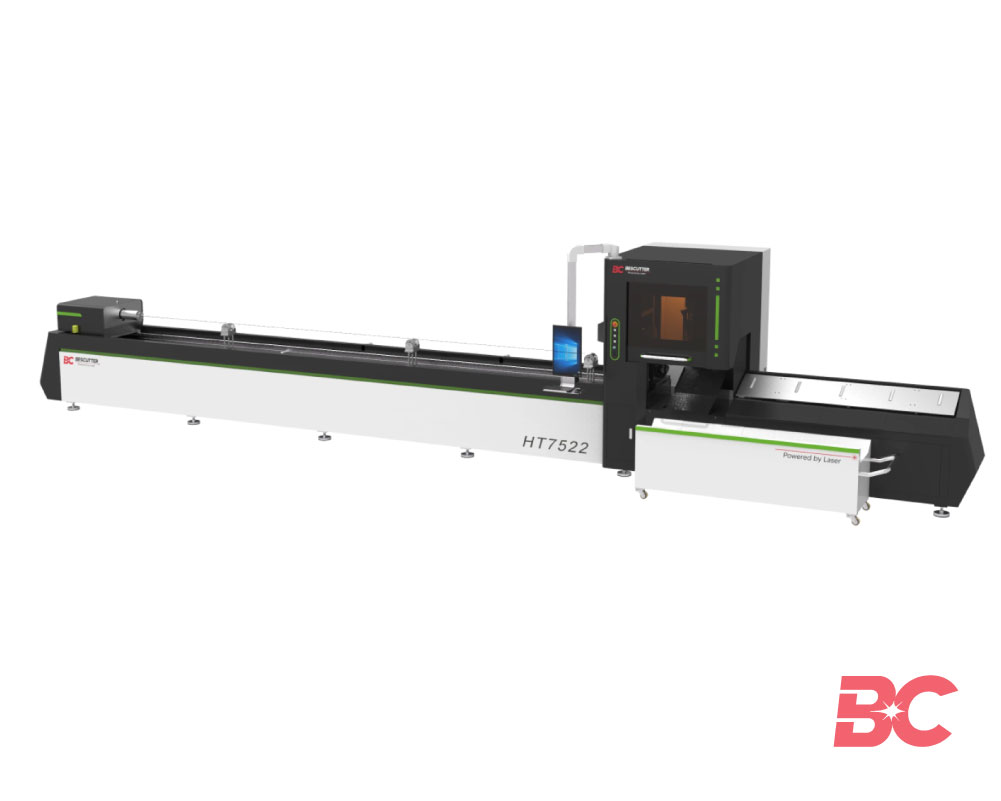

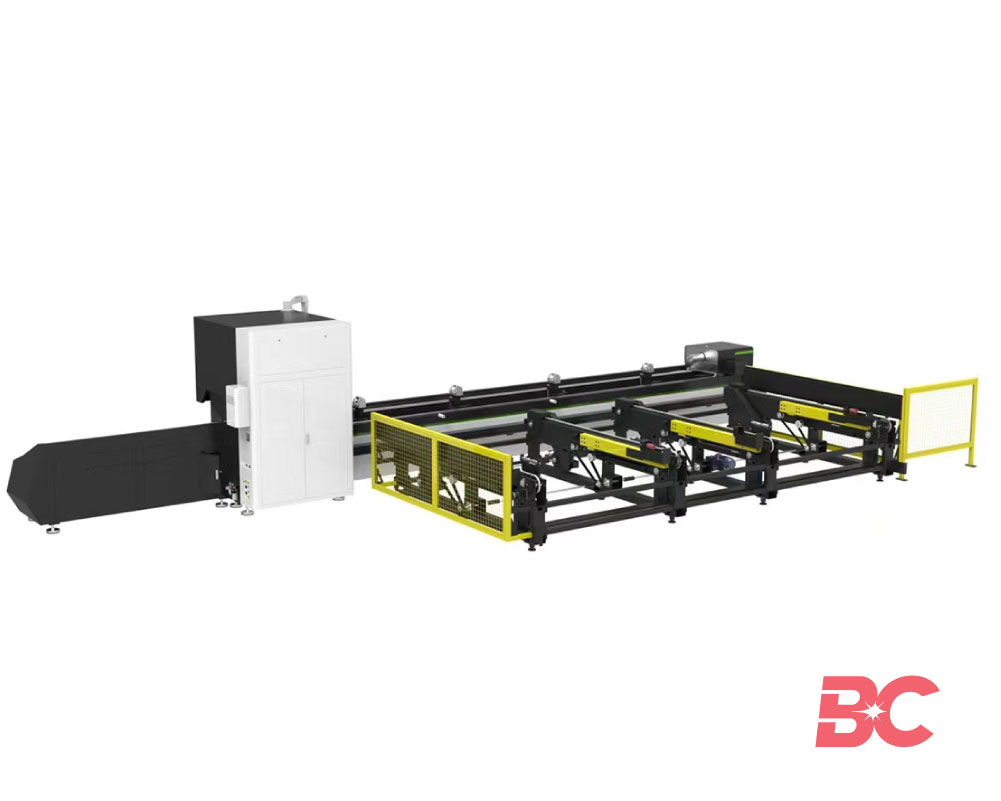

TUBE MASTER

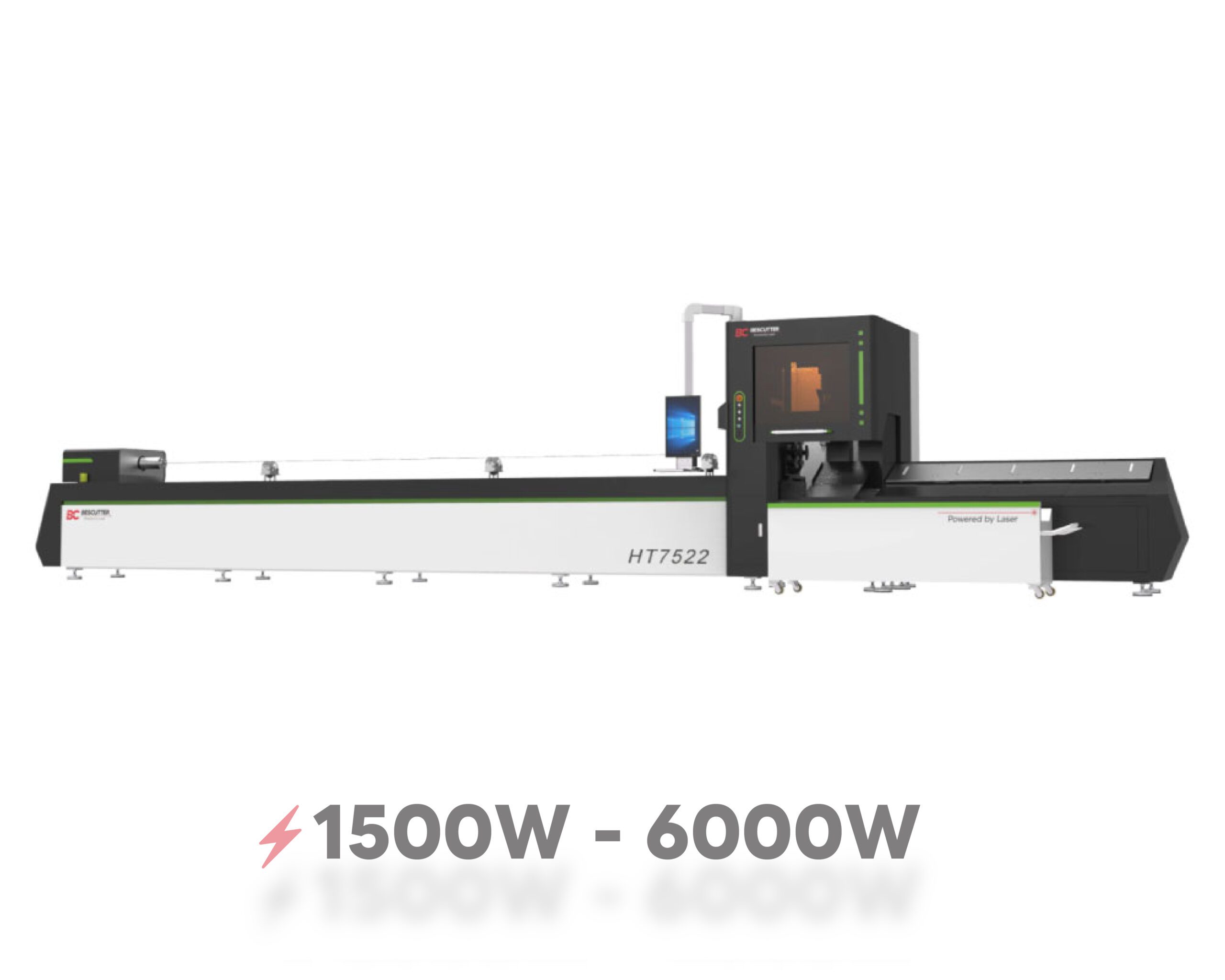

1500W - 6000W | Fiber Laser Tube Cutting Machine
KEY SPECS
The Tube Master Fiber Laser Cutting Machine delivers industrial-grade performance for precision tube cutting. It features an advanced pneumatic auto-centering chuck for handling a wide variety of tube shapes, ensuring accuracy, efficiency, and reliability. Designed for high-speed production, it integrates intelligent software solutions for seamless operation.
- 1,500W – 6,000W Laser Power.
- Cuts Round, Square, Oval, Triangle, And Profile Steel Tubes.

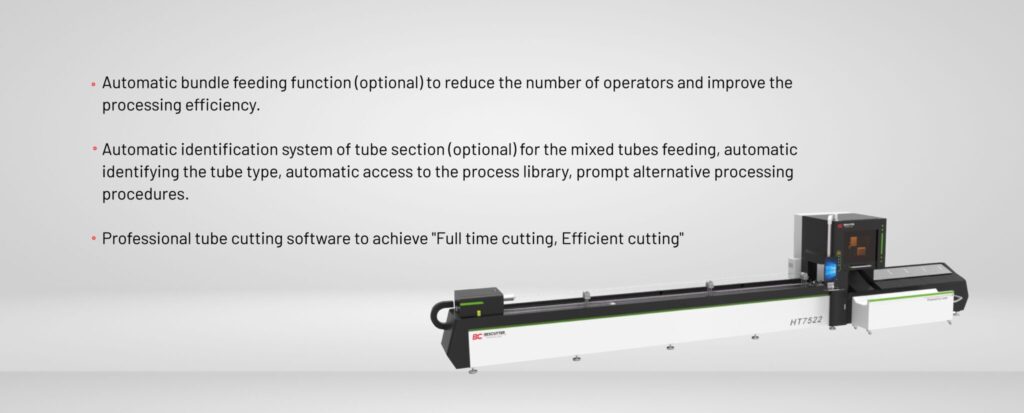

- Fully Automated Loading And Unloading System.
- Us-Based Support.
- Cypcut Software & Tubest Nesting Software.
TUBE MASTER SERIES
The Bescutter Tube Master is a high-performance fiber laser cutting system engineered for precision and efficiency in metal tube processing. With advanced capabilities, it is ideal for industries such as automotive, aerospace, household appliances, and precision manufacturing. Its pneumatic auto-centering chuck ensures precise clamping for round, square, oval, flat, and triangular tubes, while its high-speed positioning system minimizes production time.
Power that Fits Your Needs
The Tube Master is available with 1,500W – 6,000W laser power, providing flexibility for a variety of material thicknesses and cutting demands.
Key Features:
- High-precision chassis: Rigid structure with vibration elimination for stable performance.

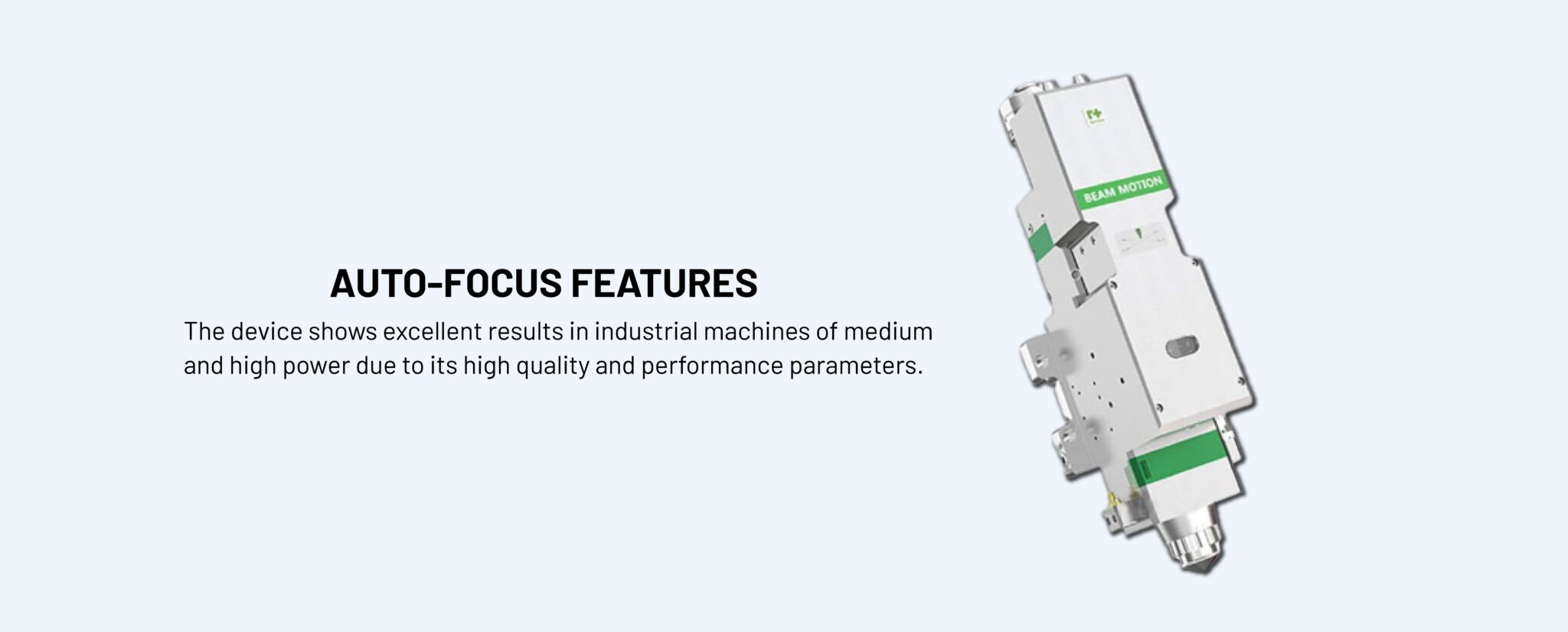

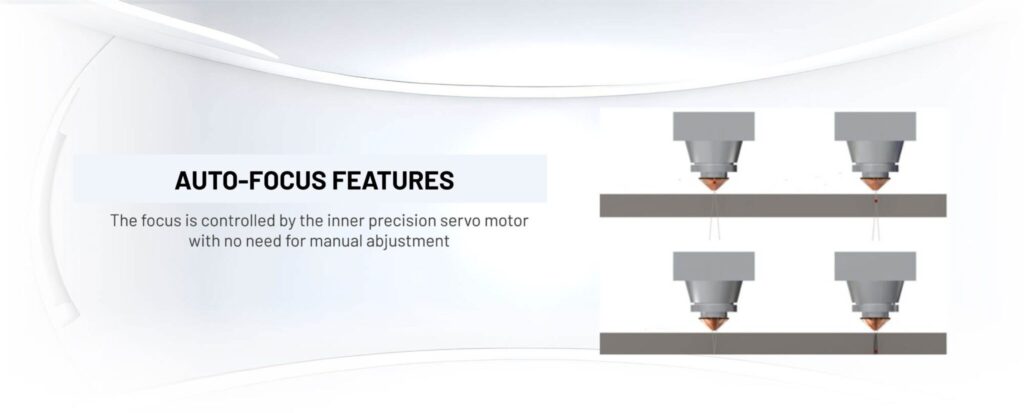

- Advanced Raytools Laser Cutting Head: Auto-focus functionality ensures optimal cut quality..
- High-speed operation: Up to 100 m/min positioning speed for enhanced productivity.
- Infinite rotation A & B Axis: Allows flexible and complex tube cutting.
- Automated cutting with TubesT software: Smart nesting software for efficient tube cutting path planning.
HIGHLIGHTED FEATURES
FEATURES AT A GLANCE
MACHINE SPECS
| Specification Item | Details |
|---|---|
| Tube range (length): | 295" (7500 mm) |
| Tube diameter: | Standard: 0.78"- 8.66" (20-220 mm) |
| Optional: 0.39"- 4.7" (10-120 mm) | Y-axis |
| X-axis: | 295" (7500 mm) |
| Y-axis: | 7.87" (200 mm) |
| A, B-axis: | Infinite Rotation |
| Loading Capacity: | 220 Chuck: 342 lbs; 120 Chuck: 154 lbs. |
| X, Y-axis positioning accuracy: | ±0.03 mm/1000 mm |
| X, Y-axis re-positioning accuracy: | ±0.05 mm |
| A, B-axis positioning accuracy: | ±30° |
| A, B-axis re-positioning accuracy: | ±10° |
| X, Y-axis max positioning speed: | 100 m/min |
| Max positioning speed: | 100 rpm |
| Laser resonator: | BC Power / MAX |
| Optional laser wattage: | From 1,500W to 4,000W |
| Laser head: | Raytools |
| Machine Weight: | 14,330 lbs (6500 kg) |
| Dimensions: | 472" x 87" x 91" (12000 x 2200 x 2300 mm) |
✔️ "All Inclusive" Package
We transport, install and train in detail without limit of operators, all in your factory and with your projects.
✔️ Warranty Included
Our unlimited warranty is top notch
✔️ On site and Online Support
We provide online support and if you require an in-person visit, we travel from our nearest office.

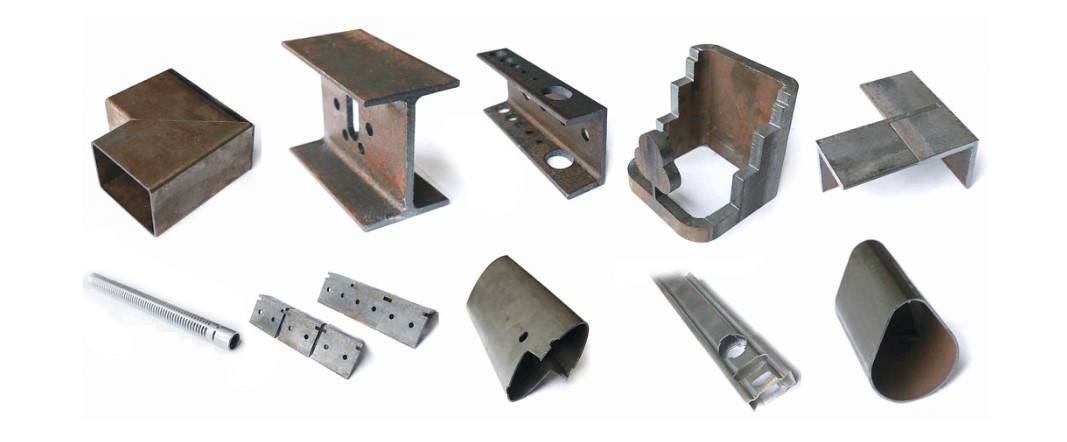

SAMPLES
