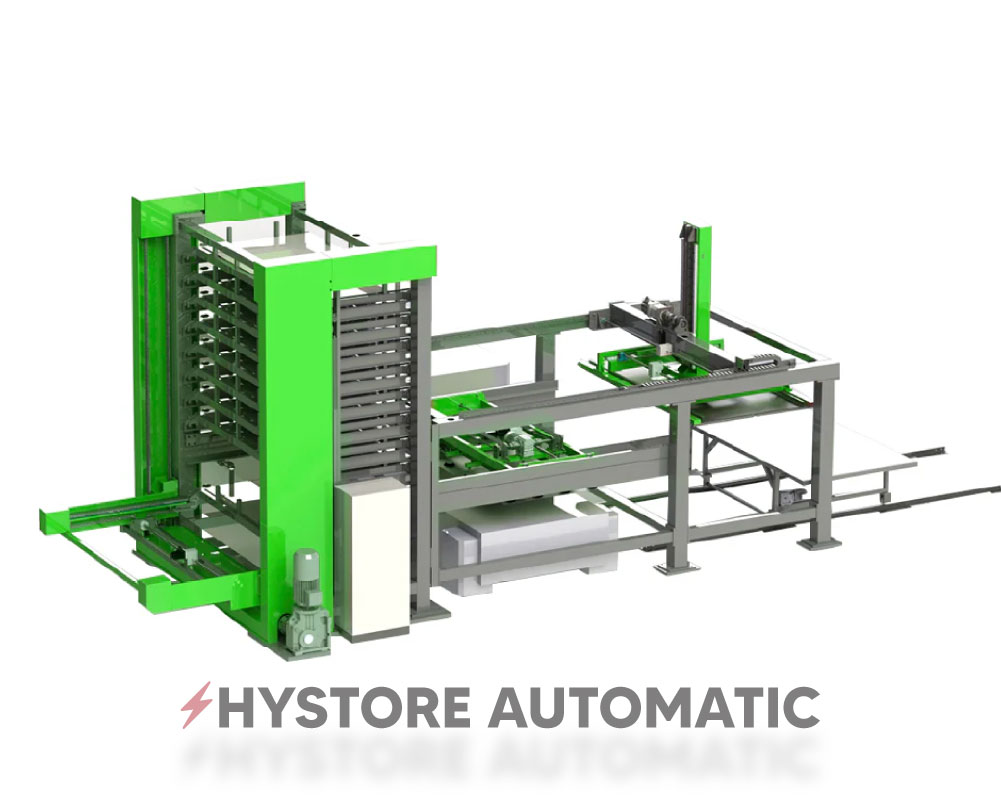

HYSTORE Automatic Loading & Unloading
Storage System For Fiber Laser Cutter
KEY SPECS
The HYSTORE Automatic Loading & Unloading System is a cutting-edge solution designed for fiber laser cutters, improving efficiency and automation in metal sheet handling. With multi-level storage capabilities and seamless integration with CNC machines, it optimizes material usage and reduces labor costs.

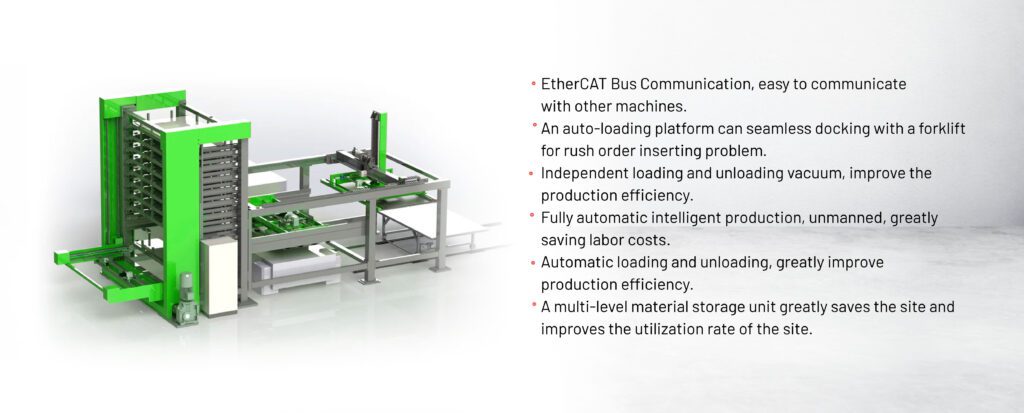

- 8-Level Storage System for streamlined material handling
- Fully Automated Loading & Unloading to enhance production efficiency
- EtherCAT Bus Communication ensures seamless connection with machines
- Fast Switching & High-Speed Lifting Mechanism for smooth operation
- Beckhoff Control System integration for precise control
- US-Based Support
HYSTORE SERIES

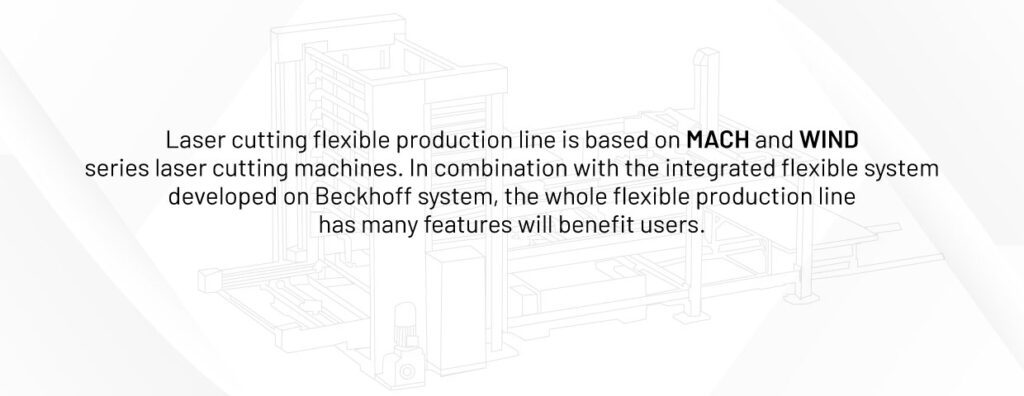

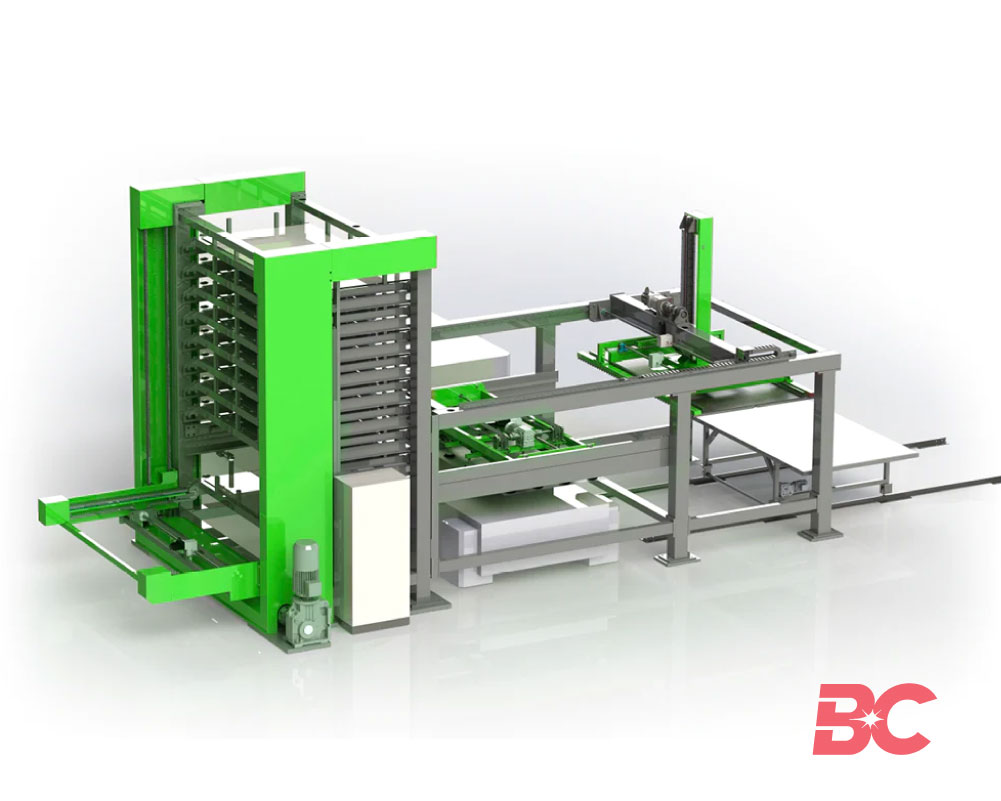

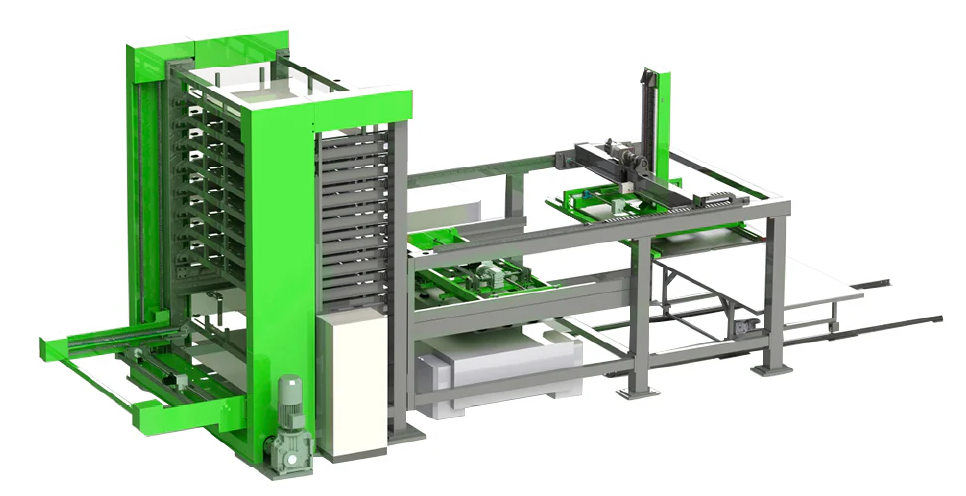

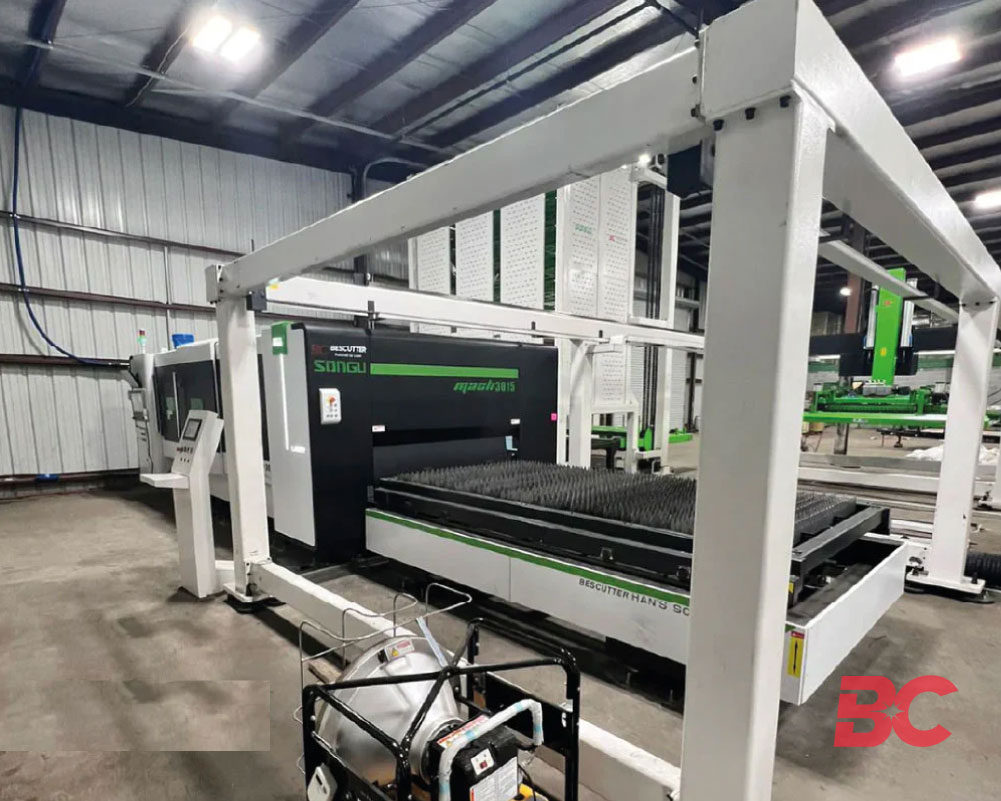

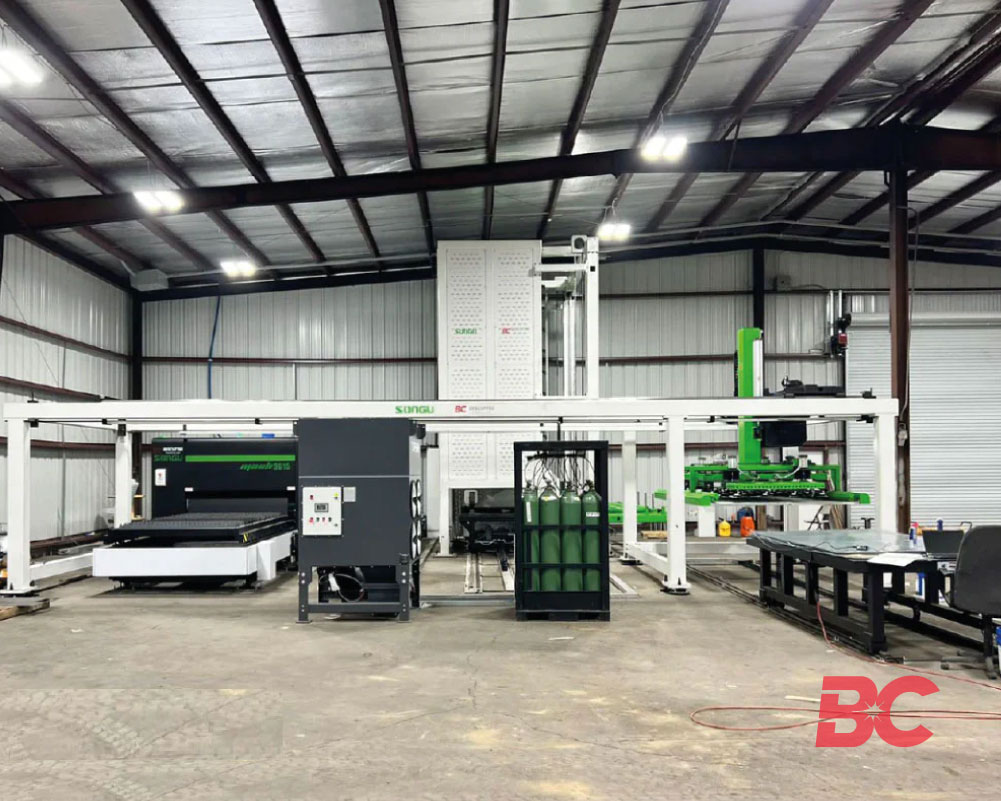

The HYSTORE is an advanced automatic loading, unloading, and storage system engineered to improve the efficiency of fiber laser cutting machines. Designed for high-speed production environments, it seamlessly integrates with MACH and WIND series laser cutters, reducing manual handling time and ensuring a continuous workflow.
Optimized for High-Efficiency Production
- High-Speed Loading & Unloading: With a lifting speed of 0.25m/s and a translational moving speed of 0.4m/s, materials are handled with precision.
- Heavy-Duty Storage Load: With a 24MT capacity, the system handles large-scale production demands effortlessly.
- Smart Energy Management: Runs on 30KVA power supply for optimized energy consumption.
- Precision Motion Control: Features ≤0.5G vibration value, reducing mechanical wear and ensuring consistent performance.
- Adaptable Work Environment: Operates within -10°C to 45°C, withstanding varying industrial conditions.
FEATURES AT A GLANCE
HIGHLIGHTED FEATURES

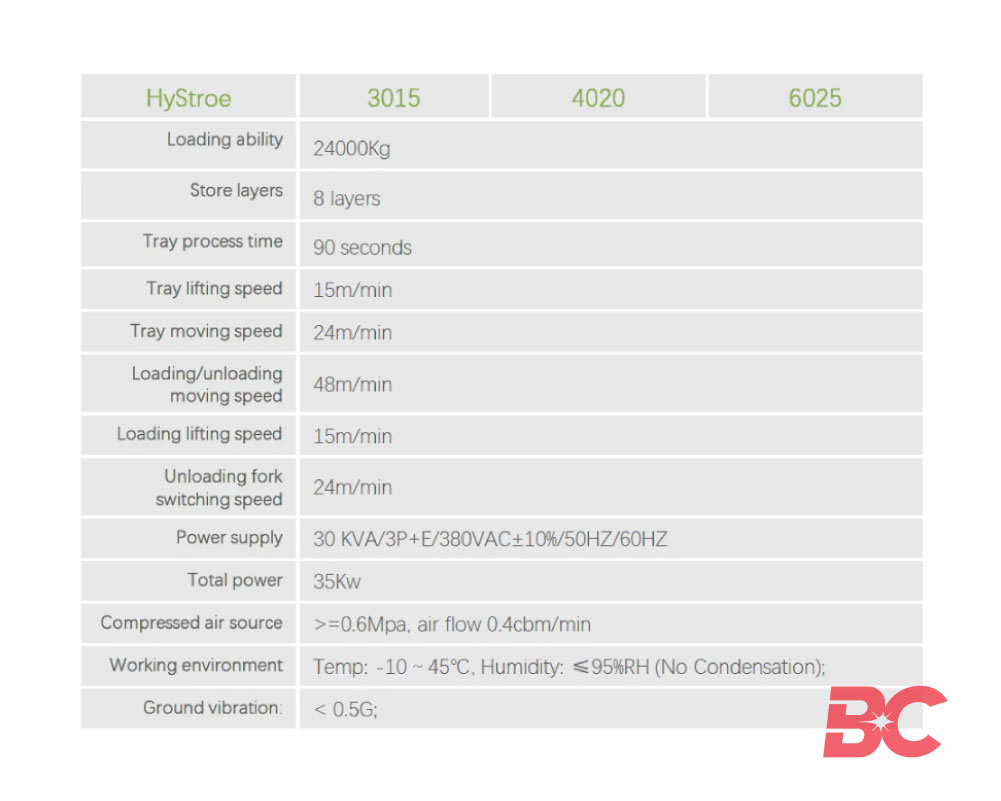

MACHINE SPECS
| Specification Item | Details |
|---|---|
| Number of store layers | 8 levels |
| Max tray lifting speed | 0.25m/s |
| Max tray translational moving speed | 0.4m/s |
| Max translation speed of loading mechanism | 0.8m/s |
| Max lifting speed of loading mechanism | 0.25m/s |
| Max translation speed of unloading mechanism | 0.8m/s |
| Max lifting speed of unloading mechanism | 0.25m/s |
| Unloading fork switching speed | 0.4m/s |
| Vibration value | <0.5G |
| Running beat | 905 |
| Storage load | 24MT |
| The scope of work | 3000mm x 1500mm |
| Overall dimensions | 13150mm x 4800mm x 4840mm |
| Working environment | Temp: -10 to 45°C, humidity: ≤95% RH, no condensation |
| Power supply | 30 KVA / 3P+E / 380VAC ±10% / 50Hz |
| Air source | The working pressure shall not be lower than 0.6MPa, and the flow rate shall not be lower than 0.4m³/min |
