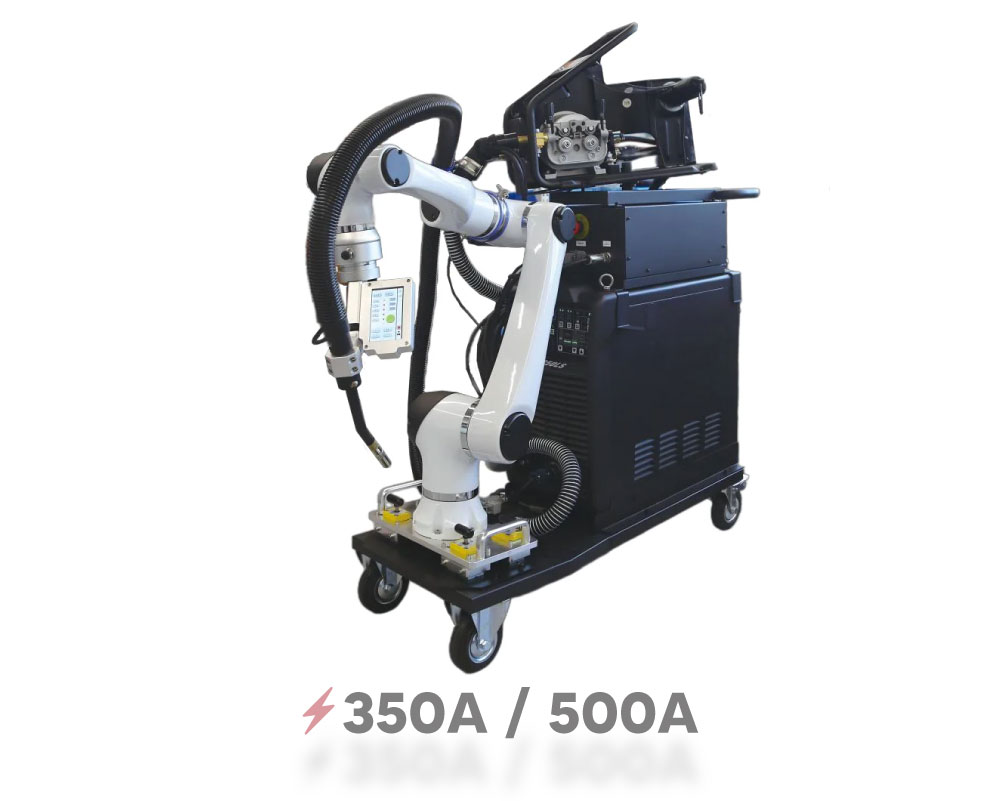

MIG WELDING COBOT
Collaborative Robot Trolley | Type 350A/500A Arm Reach 950mm
MACHINE SPECS
BESCUTTER MIG Welding Cobot / Collaborative Robot Trolley is an innovative welding solution designed for precision, flexibility, and ease of use. With advanced motion tracking, pulse welding technology, and adaptive programming, this cobot provides unmatched performance in various industrial applications.
- 350A / 500A Welding Power Options for diverse welding needs.
- Compact Trolley Design for mobility and flexibility in different work environments.
- ±0.02mm Repeated Positioning Accuracy ensures consistent, high-quality welds.
- Short-Circuit & Pulse Welding Capabilities to handle carbon steel, stainless steel, and galvanized materials.
- 6-Axis Robotic Arm with 950mm / 1300mm Reach, enabling complex weld paths.
Contact Us for More Information
MIG WELDING COBOT
The BESCUTTER MIG Welding Cobot is a state-of-the-art welding system designed for precision, automation, and adaptability. Featuring a 6-axis robotic arm, intelligent arc tracking, and real-time motion correction, this cobot enables high-quality welding with minimal operator input.
Key Features:

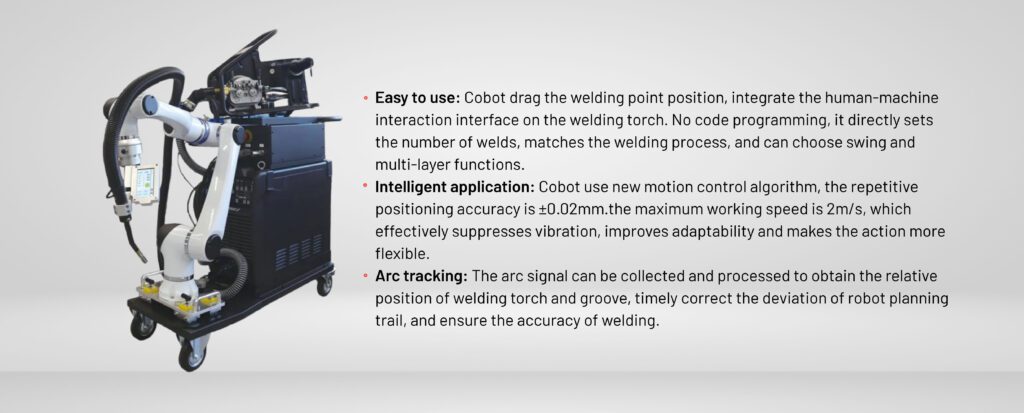

- Superior Motion Accuracy: ±0.02mm positioning accuracy with a maximum speed of 2m/s, ensuring smooth and precise welding paths.
- Advanced Welding Technology: Supports pulse welding and short-circuit welding, reducing heat impact and improving weld quality.
- Compact & Mobile Design: Mounted on a trolley for easy movement, ideal for dynamic workshop environments.
- Arc Tracking & Real-Time Adjustment: Utilizes AI-driven arc tracking for precision positioning and reduced defects.

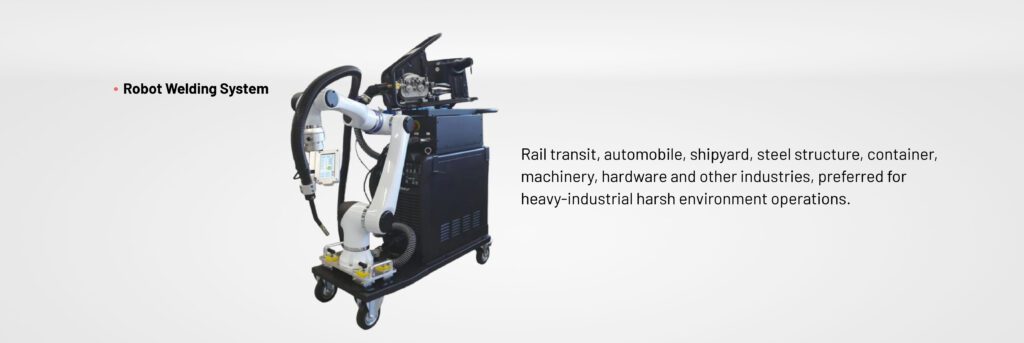

This welding cobot is ideal for rail transit, shipbuilding, heavy machinery, and manufacturing industries, providing an efficient, cost-effective, and automated welding solution.
FEATURES AT A GLANCE
MACHINE SPECS
| PARAMETER | X350L | X500 |
|---|---|---|
| Rated Input Voltage | 380VAC | 380VAC |
| Input Frequency | 50Hz | 50Hz |
| Rated No-load Voltage | 80V | 80V |
| Rated Output Current / Voltage | 350A / 31.5V | 500A / 39V |
| Output Current Range | 30-350A | 30-500A |
| Output Voltage Range | 12-45V | 12-45V |
| Duty Cycle | 350A / 100% / 40°C | 500A / 100% / 40°C |

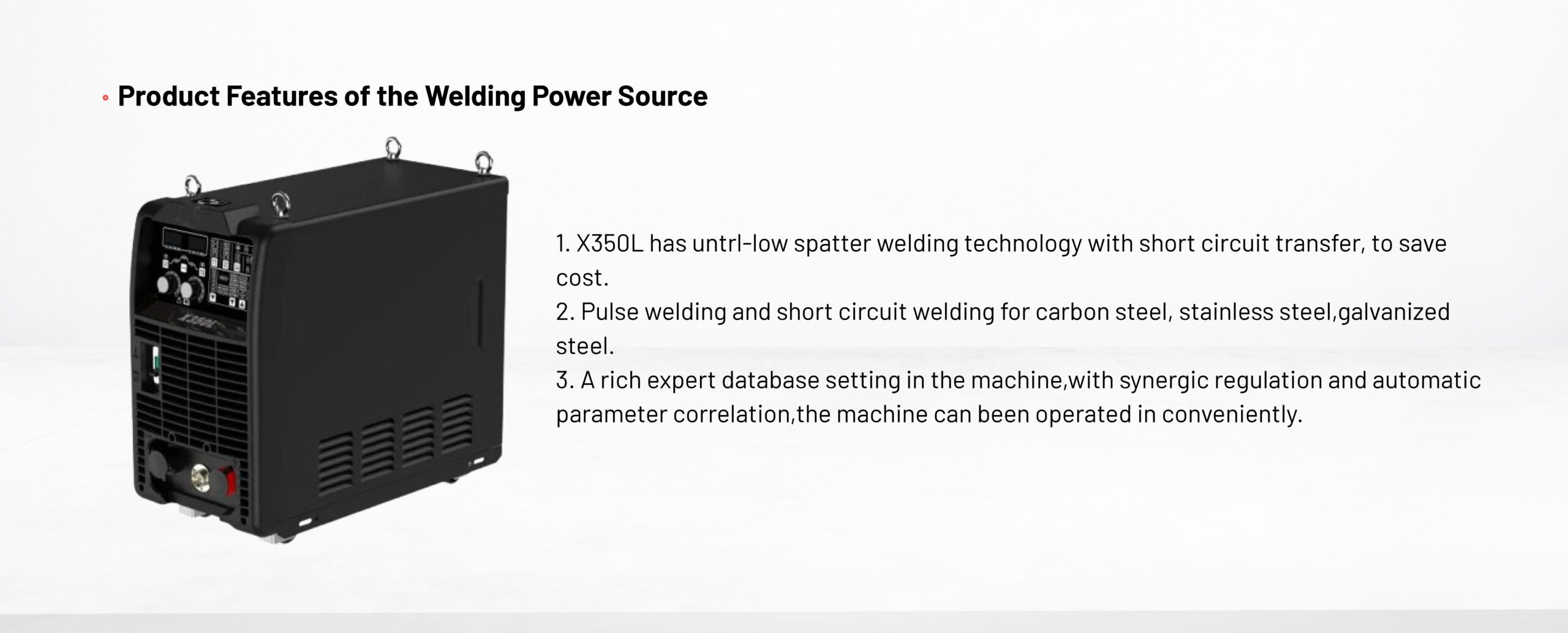

| Welding Methods | Short Circuit / Single Pulse / Ultra-Low Spatter | Short Circuit / Single Pulse |
| Applicable Materials | Carbon Steel / Stainless Steel (Φ0.8-1.6mm) | Carbon Steel / Stainless Steel (Φ0.8-1.6mm) |

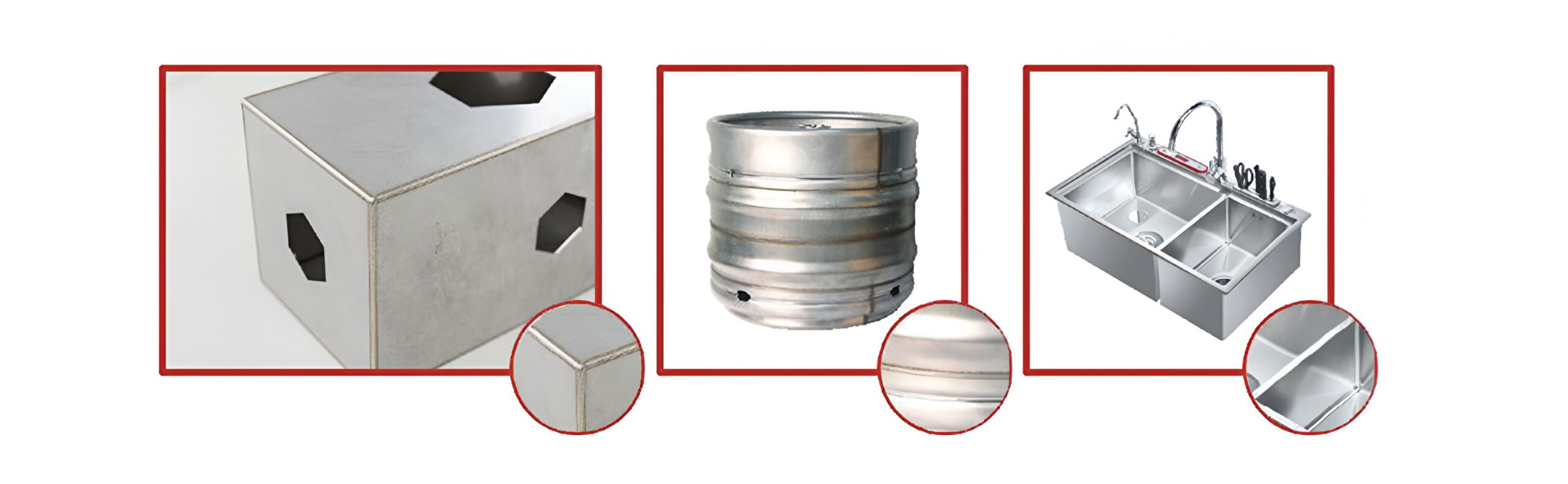

SAMPLES
