ROBOT HANDHELD WELDER

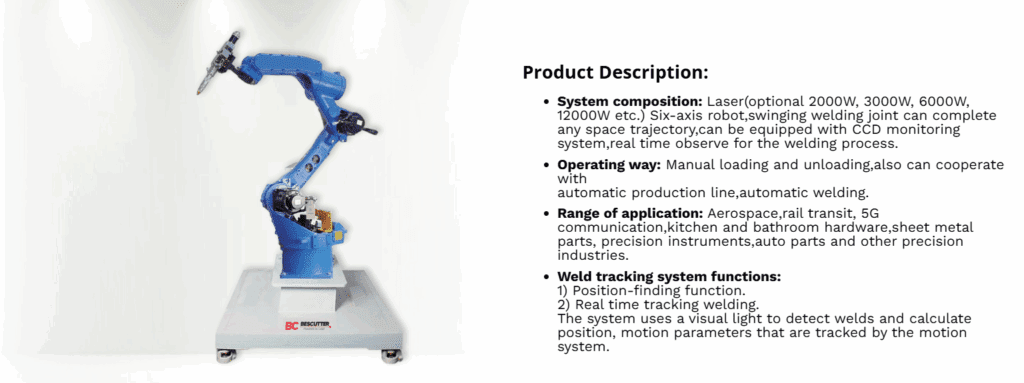

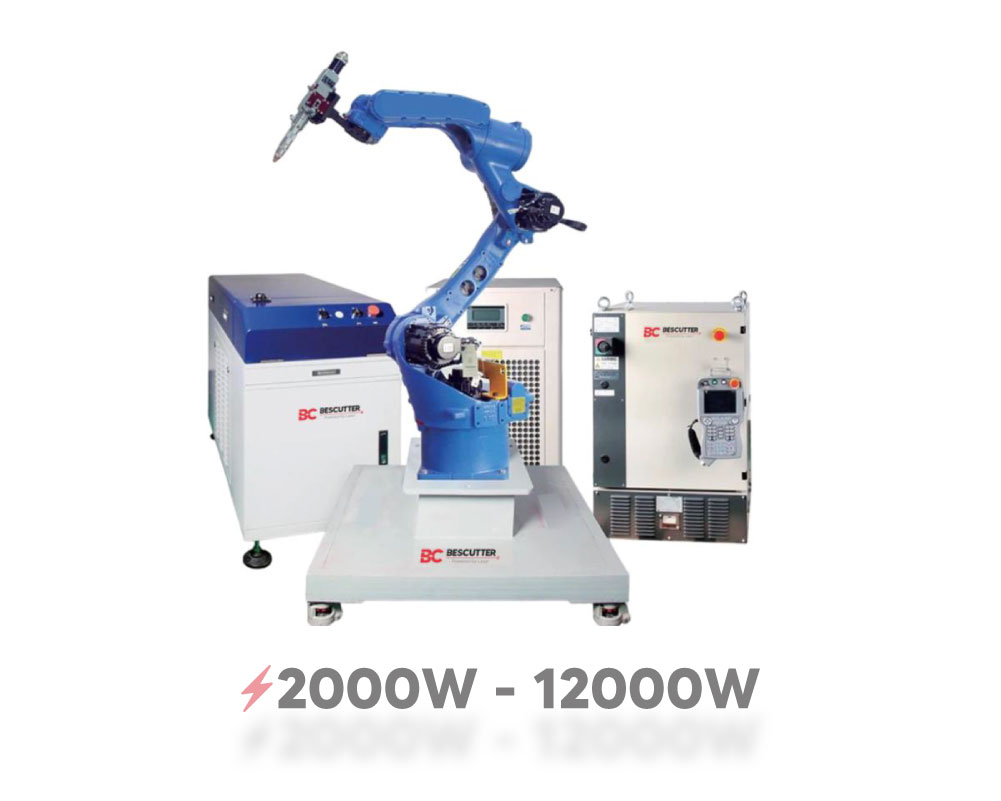

The 6-Axis Robot Welder is a versatile, high-precision solution equipped with laser power options (2000W–12000W) and advanced CCD monitoring for real-time process observation. It supports manual or automated operation, integrates seamlessly with production lines, and achieves welding speeds of 1.5–2m/min.

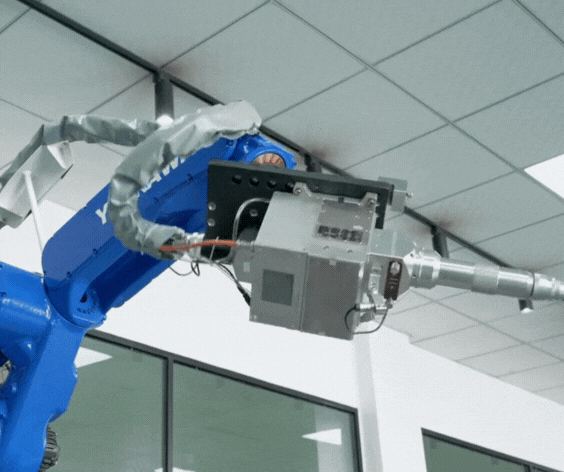

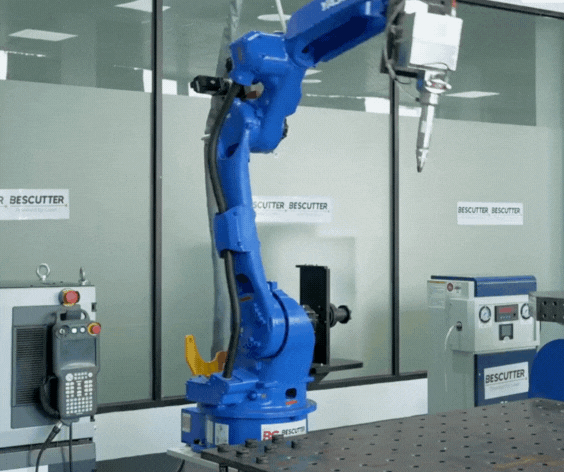

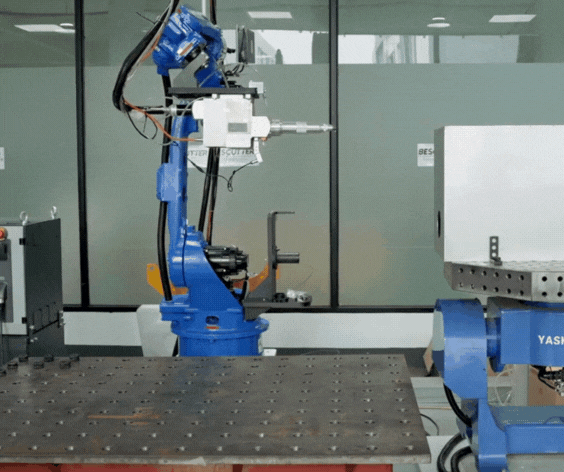

Powered by the Yaskawa GP-25 robot, it offers a 1730mm arm span, 25kg load capacity, and 0.06mm positioning accuracy, ensuring reliable performance for complex welding needs.
Applications:
- Construction and Architecture: Stair railings, elevator structures, and decorative metal elements.
- Industrial Equipment Fabrication: Welding racks, machinery components, and ovens.
- Home and Commercial Fixtures: Production of stainless steel doors, window guardrails, and household appliances.
- Automotive Industry: Body panel welding, exhaust systems, and intricate automotive parts.
- Aerospace Applications: Structural components requiring consistent and high-quality welds.

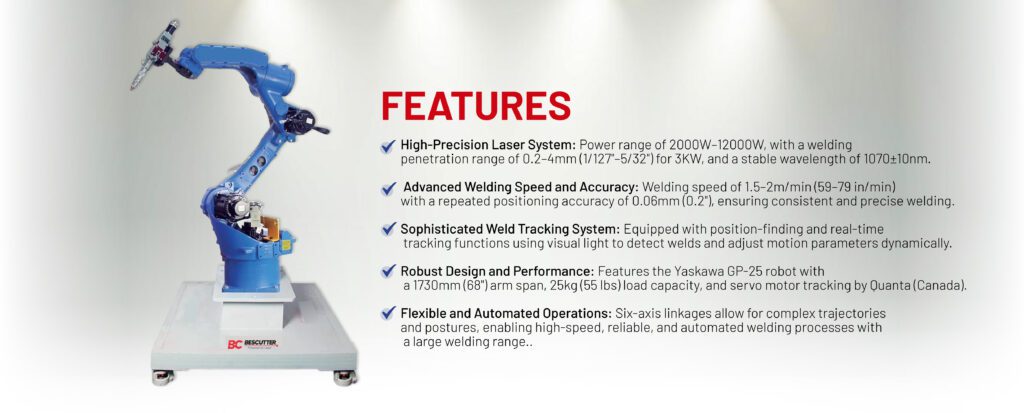

FEATURES AT A GLANCE
MACHINE SPECS
| PARAMETER | X350L | X500 |
|---|---|---|
| Rated Input Voltage | 380VAC | 380VAC |
| Input Frequency | 50Hz | 50Hz |
| Rated No-load Voltage | 80V | 80V |
| Rated Output Current / Voltage | 350A / 31.5V | 500A / 39V |
| Output Current Range | 30-350A | 30-500A |
| Output Voltage Range | 12-45V | 12-45V |
| Duty Cycle | 350A / 100% / 40°C | 500A / 100% / 40°C |
| Welding Methods | Short Circuit / Single Pulse / Ultra-Low Spatter | Short Circuit / Single Pulse |
| Applicable Materials | Carbon Steel / Stainless Steel (Φ0.8-1.6mm) | Carbon Steel / Stainless Steel (Φ0.8-1.6mm) |

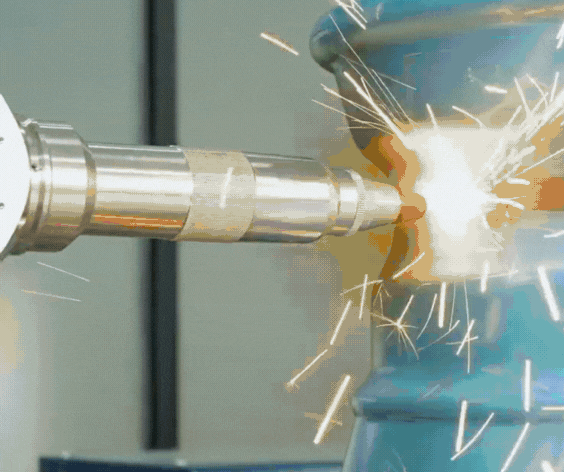

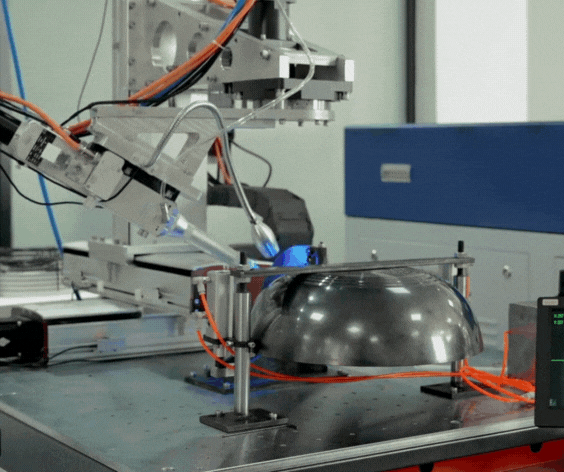

SAMPLES
