ELECTRIC CABINET
ROBOT WELDER

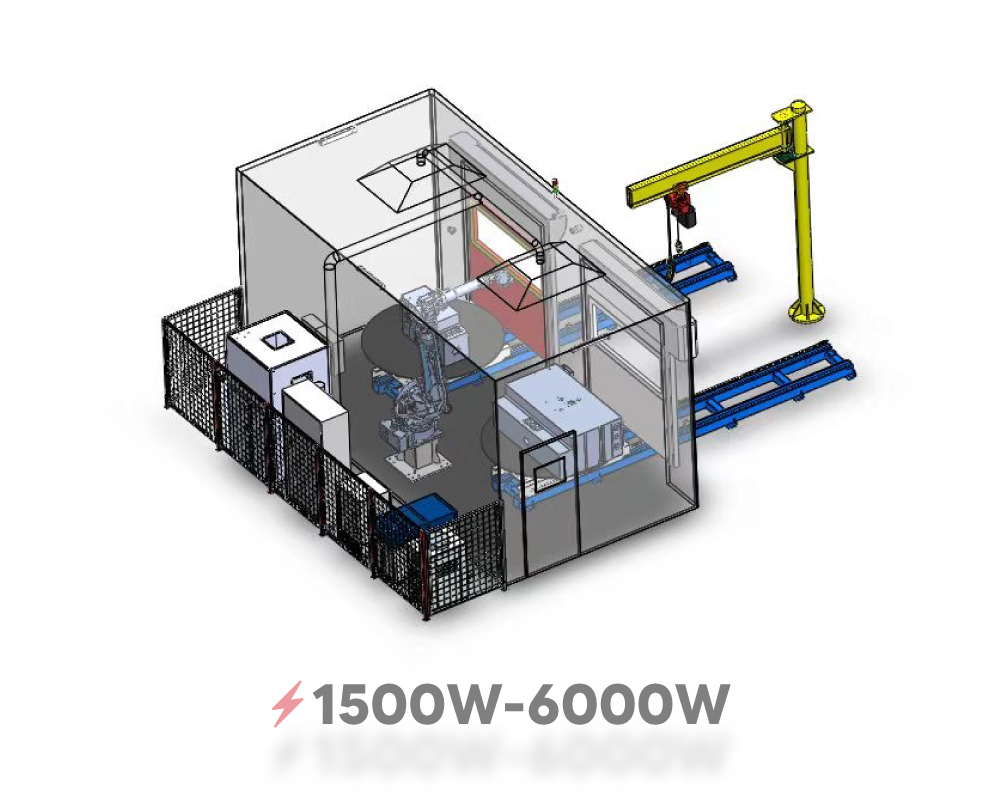

1500W-6000W | Fiber Laser Welding Machine

APPLICATIONS

1. GIS Cabinet/RMU Cabinet
2. Stiffener Bars (Reinforcement Bars) in Electrical Cabinet
3. Electrical Panel Boards

Contact Us for More Information
Name(Required)

ROBOT HANDHELD WELDER

  • Features:
    1. Intergrated with seam finding function.
    2. Singel axis rotary table saves the labor cost; The positioner table is compatible for different size workpeice.
    3. Continous welding process at corners assures the gas sealing quality.
    5. Capacity: 8min/set.
    6. Product percent of pass: 98%
REQUEST DEMO
GET QUOTE

By loading this video, you agree to the privacy policy of Youtube.

WORKSTATION OPTIONS

WORKSTATION #1

null

WORKSTATION #2

null

FEATURES AT A GLANCE

MACHINE SPECS

CX-CS2000CX-CS3000CX-CS6000CX-CS12000
Maximum laser power output2000W3000W6000W12000W
Laser workingmediumRare earth doped fiberRare earth doped fiberRare earth doped fiberRare earth doped fiber
Wavelength1070+10nm1070+10nm1070+10nm1070+10nm
Optical fiberoutput quantity1 way1 way1 way1 way
Welding depth0.2-3mm0.2-4mm0.2-6mm0.2-12mm
Laser power consumption6kw9kw18kw36kw
Power input220v380v380v380v
Cooling modewater-coolingwater-coolingwater-coolingwater-cooling
Optical fibertypeQBHQBHQBHQD
Fiber length10/15m10/15m15m15m
Fiber diameter50um50um50um/75um100um

SUCCESFUL CASSES

robot_welder_Bescutter_Houston
FLEX-CUTTER Fiber Laser Metal Sheet Cutter Full Enclosure with Parallel Shuttle Table

WELDING IN ELECTRICITY APPLICATION

l. GIS Cabinet/ RMU Cabinet
2. Stiffener Bars(Reinforcement Bars) in Electrical Cabinet
3. Electrical
Panel Boards
