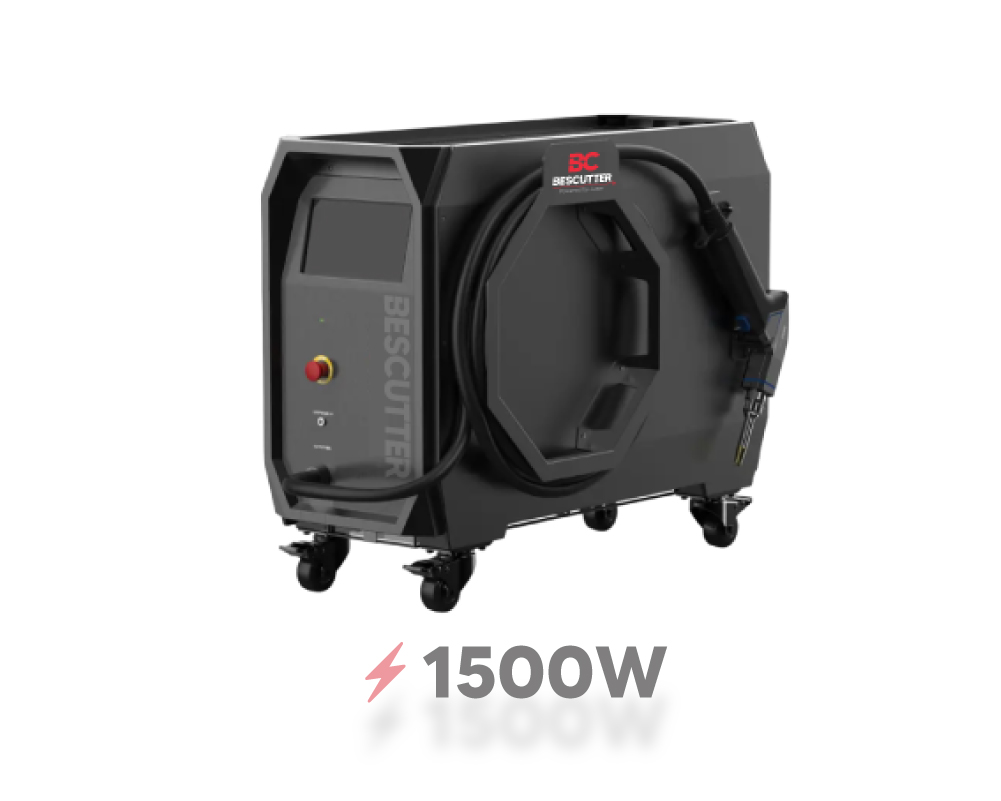

AIR COOLED 1500W MAX

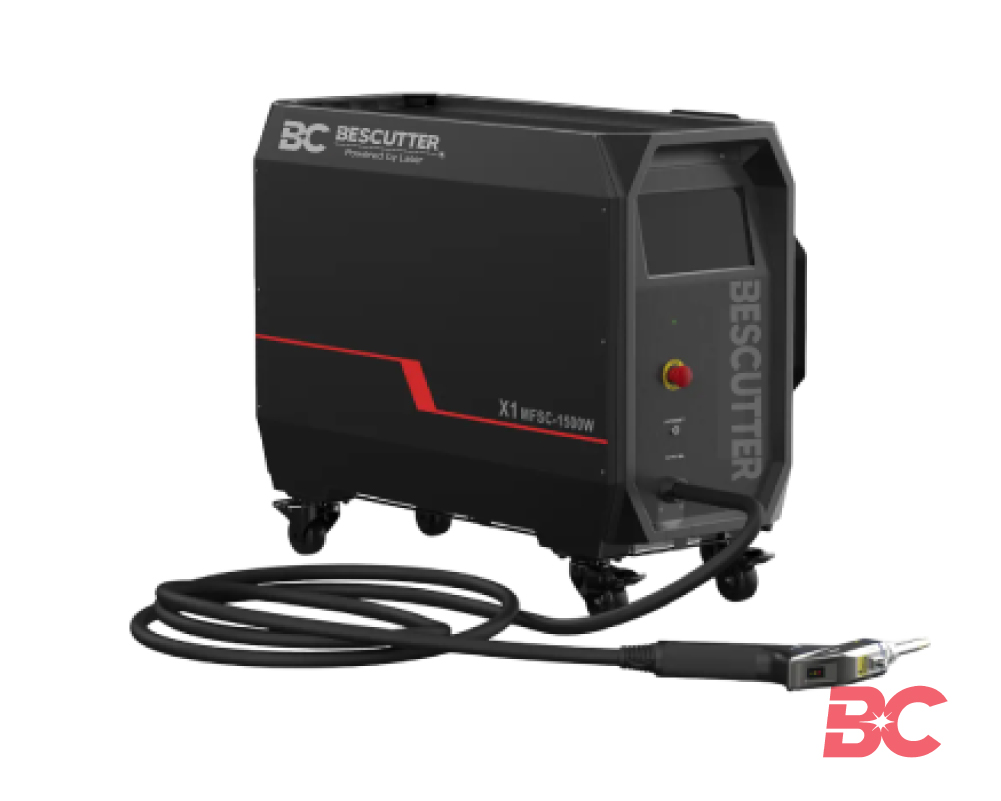

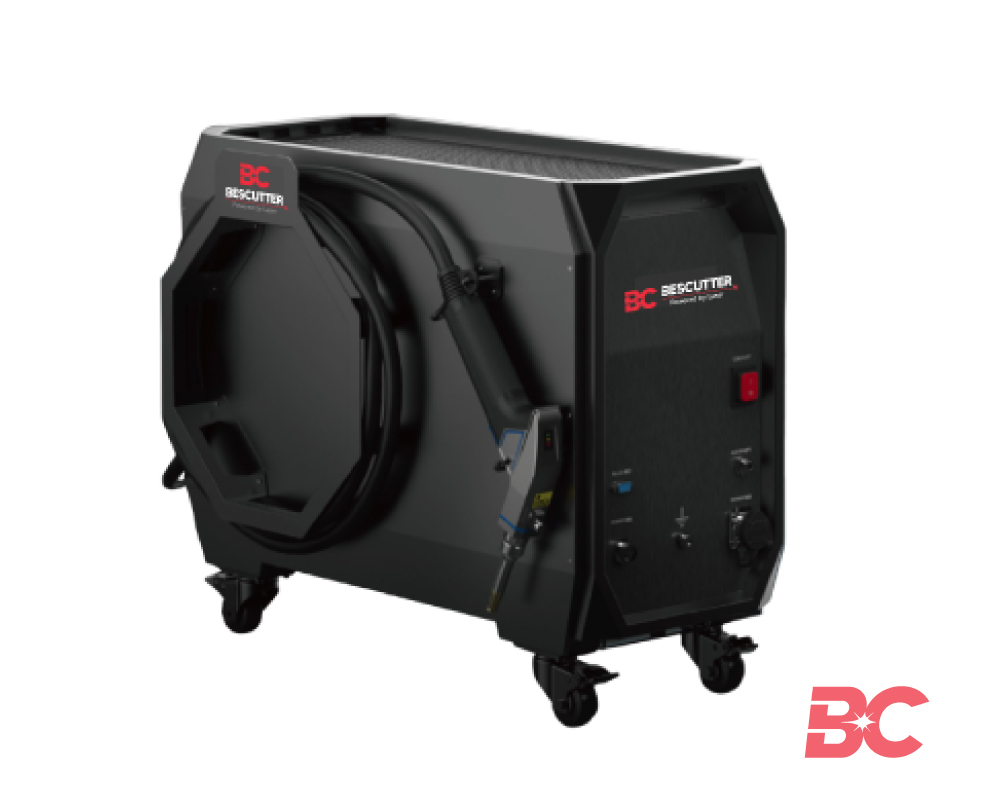

Handheld Fiber Laser Welding Machine
APPLICATIONS
Welding in thin stainless sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes. Widely used in cabinet kitchen, staircase elevator, rack, oven, stainless steel door and window guardrail, distribution box, stainless steel household, metal sheet metal and other industries complex and irregular welding process.
Contact Us for More Information
ROBOT HANDHELD WELDER
Experience effortless welding like never before with the BC Series – welding easier than you ever thought possible!
- The industry’s lightest, compact, portable laser welding system.

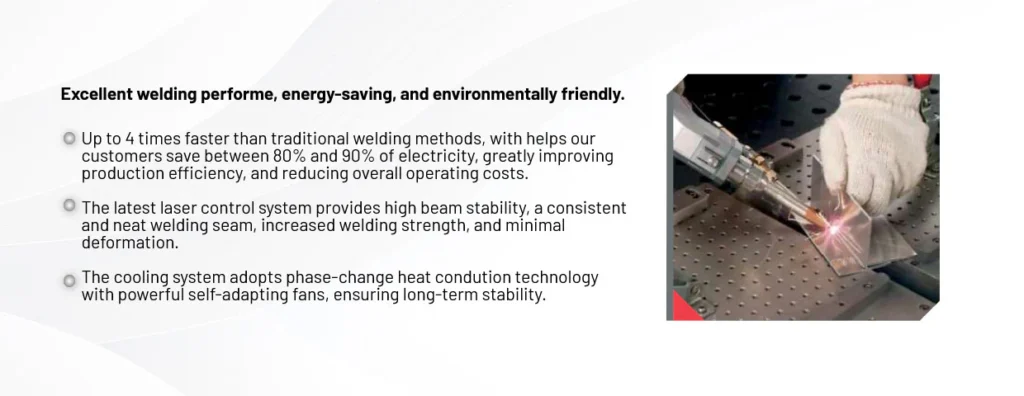

- Exceptional efficiency: Up to 4x faster.
- Superior laser technology: 14μm laser spot size.

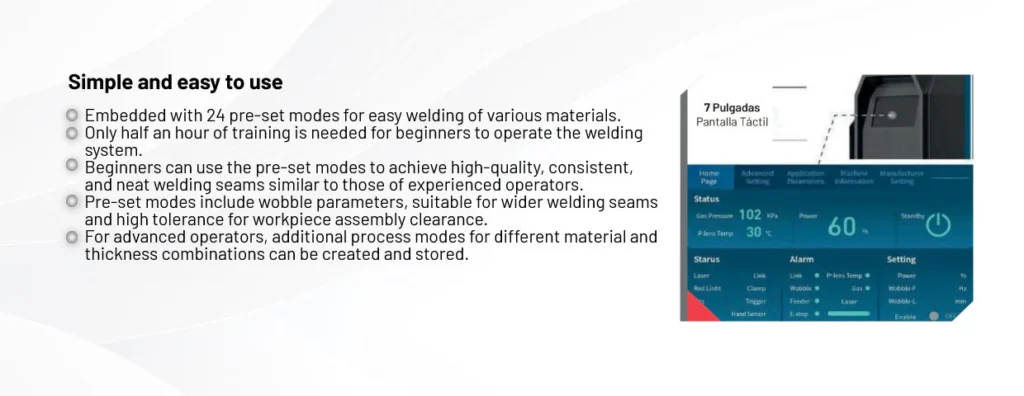

- Easy to learn and operate: Operator training in >1 hour.

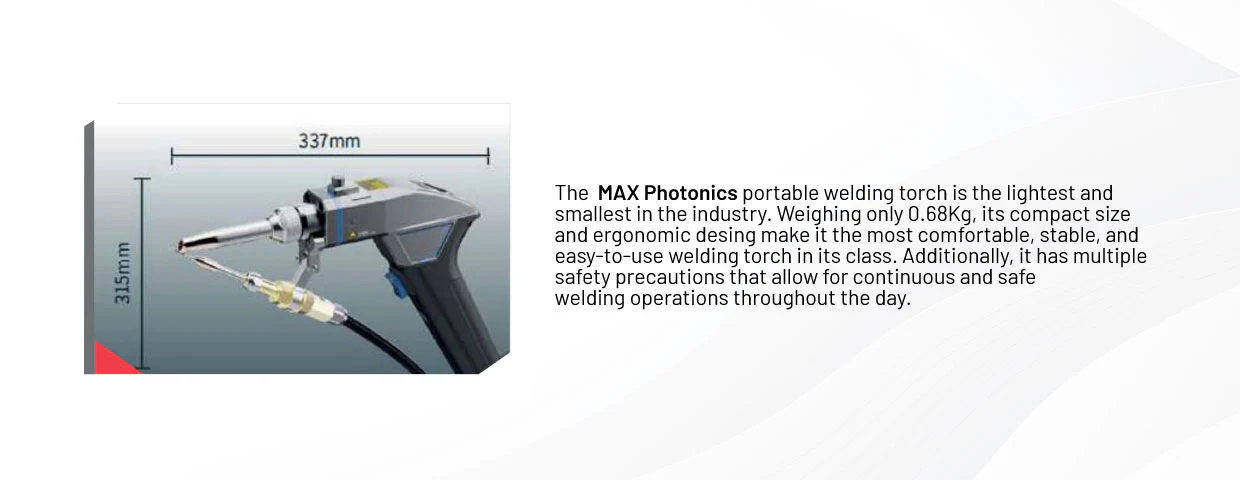

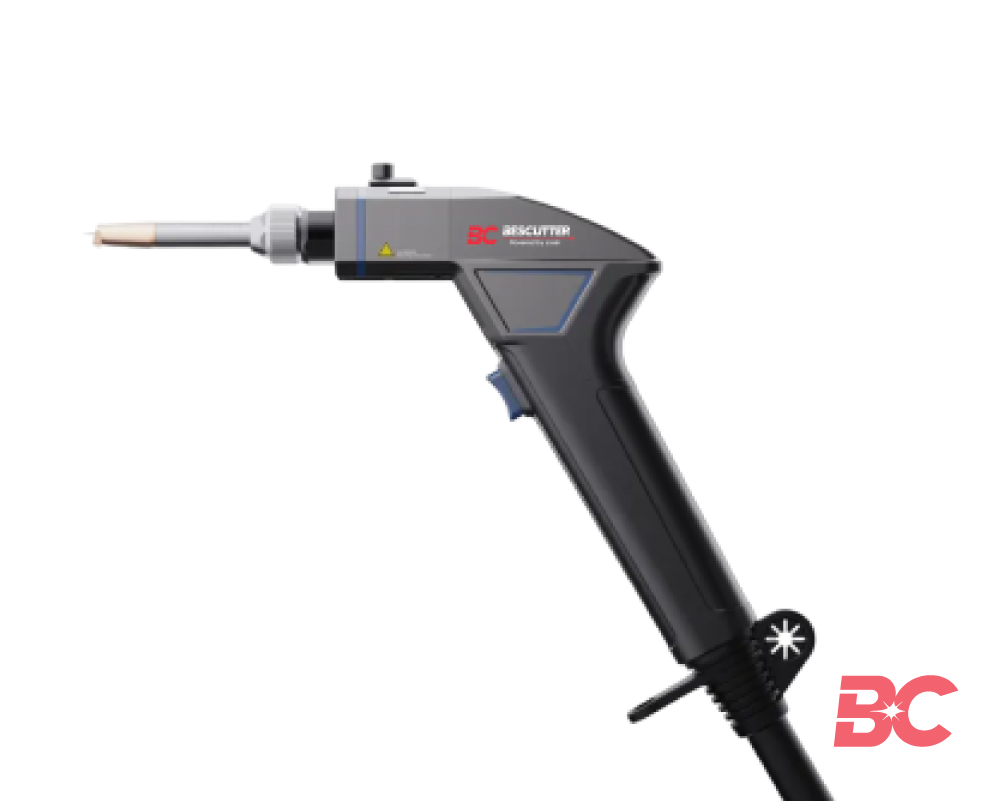

- The industry’s lightest torch.

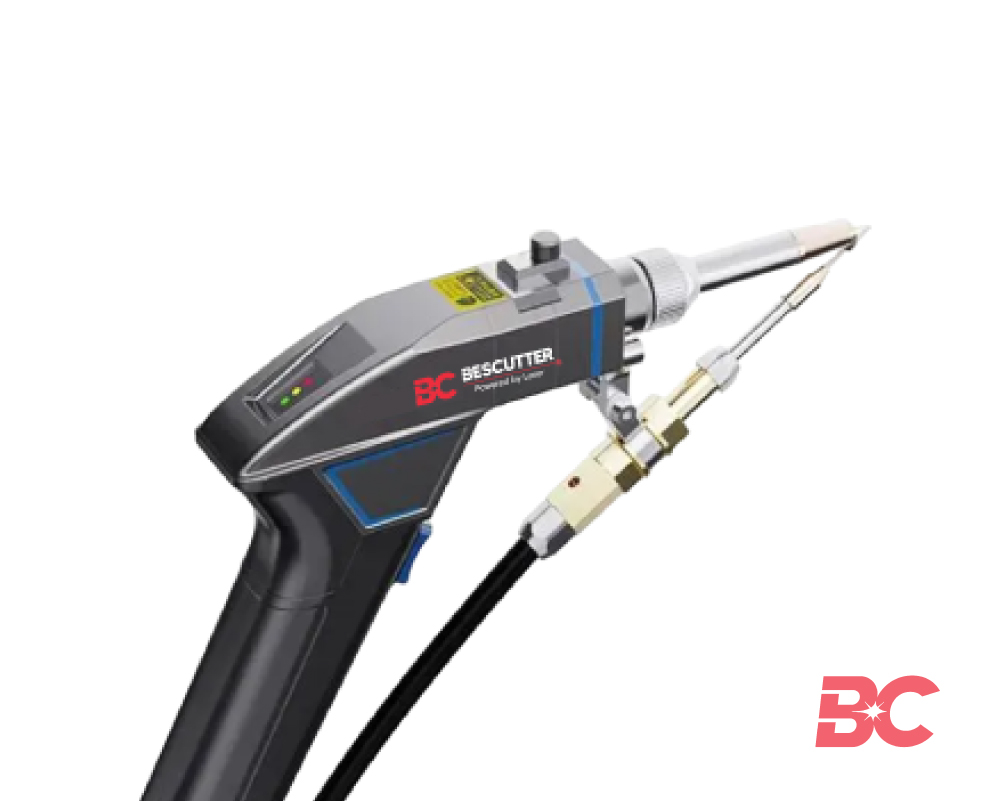

- Wire feeder and Wobble solder included.
- Excellent welding results.
- Energy savings: Up to 80% less electricity.
- Up to 10 years laser source life.
FEATURES AT A GLANCE
MACHINE SPECS
| Laser Generator | MA65- 1500W |
| Working Mode | Continuous/adjustable |
| Wavelength | 1070 nm |
| Welding Speed | 0-120 mm/s |
| Welding Thickness | 0.5-6 mm depending on materials |
| Weld Seam Requirements | ≤0.2 mm |
| Materials | Aluminum, Carbon Steel, Stainless Steel, Galvanized Sheet etc. |
| Cooling Mode | Air Cooled |
| Air Assist | Nitrogen |
| Dimensions | 36" x 19" x 30" (L x W x H)n |
| Weight | 80 lbs |
| Voltage | 220 V Single Phase 25A |
| Working | Temp 59 - 95 f |
| Humidity | ＜70% (No condensation) |

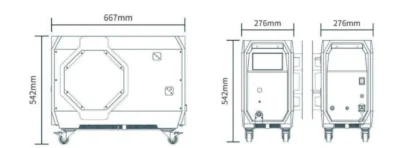

MEASURES
