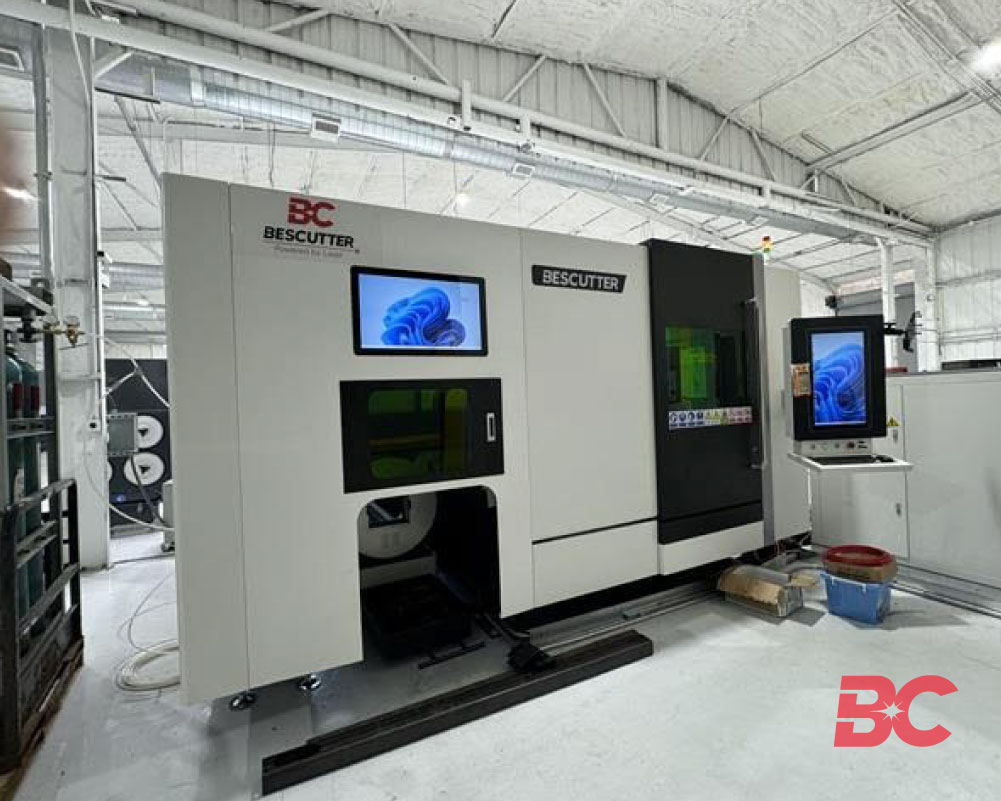

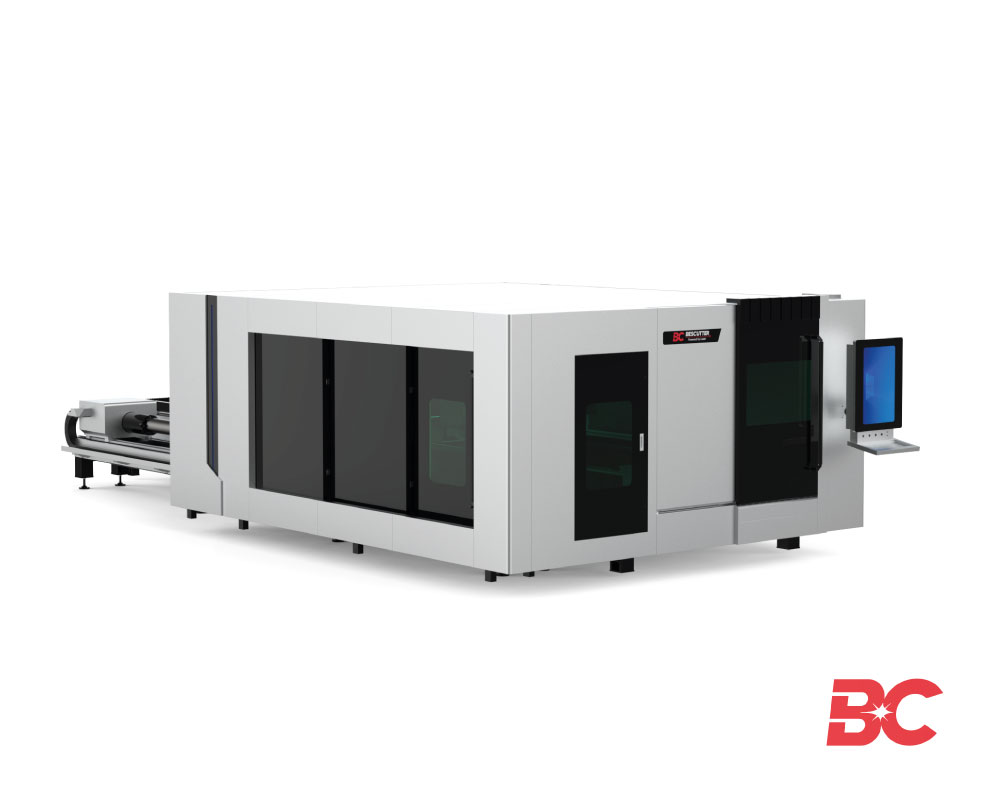

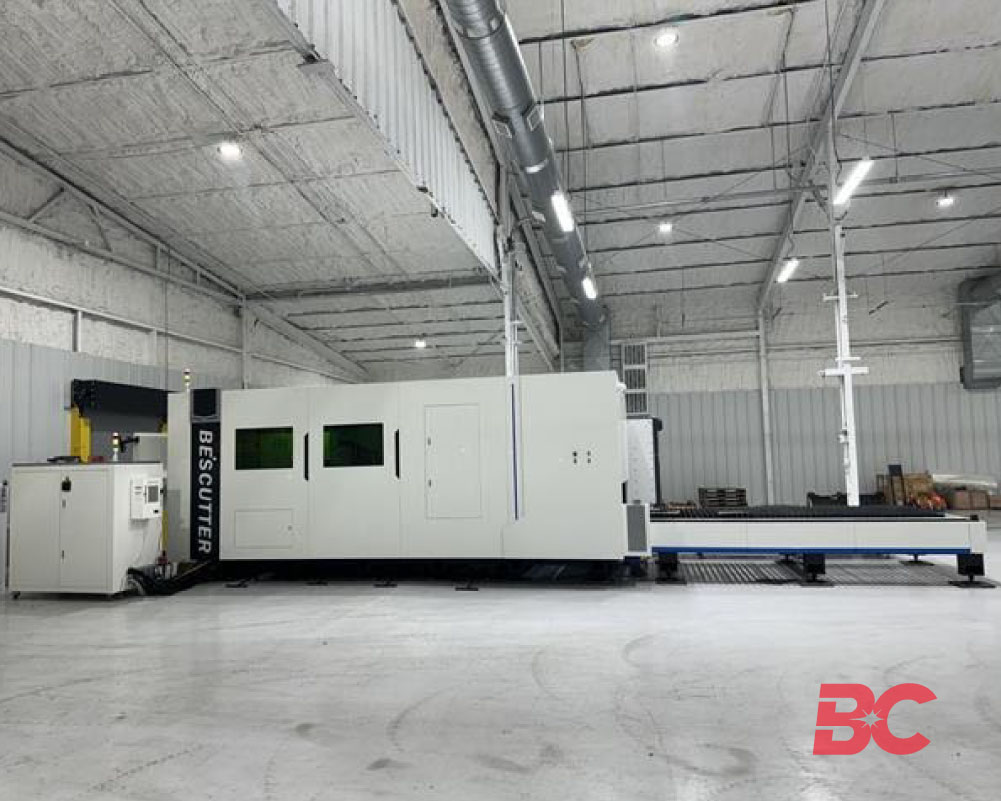

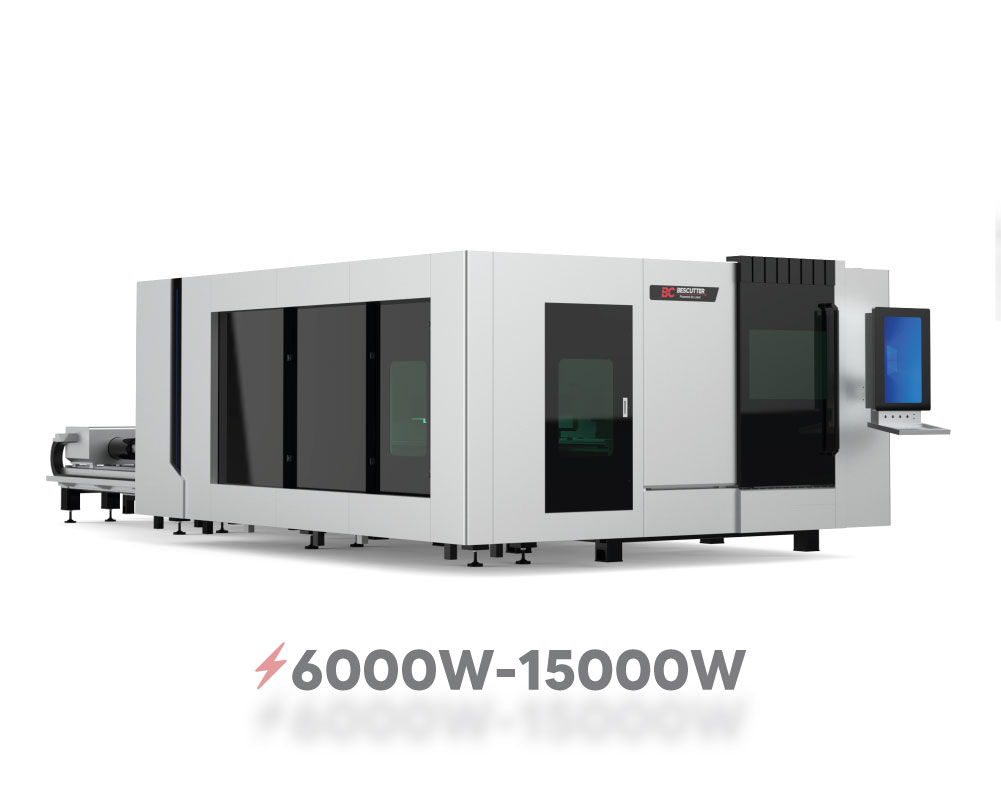

FLEX CUTTER 4020
6000W-30000W | Fiber Laser Metal Sheet and Pipe Cutter
Full Enclosure with Parallel Shuttle Tab
The FLEX CUTTER Fiber Laser Metal Sheet Cutter is an advanced cutting solution designed for high-speed, high-precision metal processing. With a fully enclosed design, gantry double-drive transmission system, and automated lubrication, it ensures maximum efficiency and safety. The robust honeycomb carbon structure bed and cast aluminum beam provide superior stability, making it ideal for demanding industrial applications.
- 6kW – 30kW Laser Power
- Full Enclosure for Maximum Safety
- High-Speed Cutting: Up to 120m/min
- CypCut 6000 Control System for Seamless Operation
- Boci or Raytools Laser Cutting Head Options
- Best-in-Class Stability with Yaskawa Servo Motors & Japan
- Shimpo Reducer
Contact Us for More Information

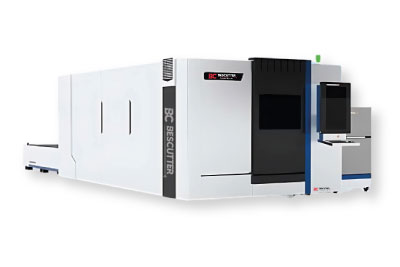

FLEX CUTTER 4020
The Bescutter FLEXCUTTER is an intelligent fiber laser cutting machine designed for metal sheet processing Featuring an enclosed safety design high-speed operation and advanced motion control it delivers unparalleled cutting accuracy and efficiency
Unmatched Performance and Build Quality
• Power Options Available from 6kW to 30kW laser power for flexible cutting capabilities
• Structure Honeycomb carbon bed cast aluminum beam and welded steel plate for enhanced strength stability and vibration resistance
• Transmission Gantry double-drive system for smooth and precise movement
• Speed and Acceleration Cutting speed up to 120m/min with 1.2G acceleration for fast processing
• Precision ±0.02mm/1000mm positioning accuracy and ±0.03mm/1000mm repositioning accuracy ensure top-tier results
Advanced Control and Automation
• CypCut 6000 Control System for seamless operation and diagnostics

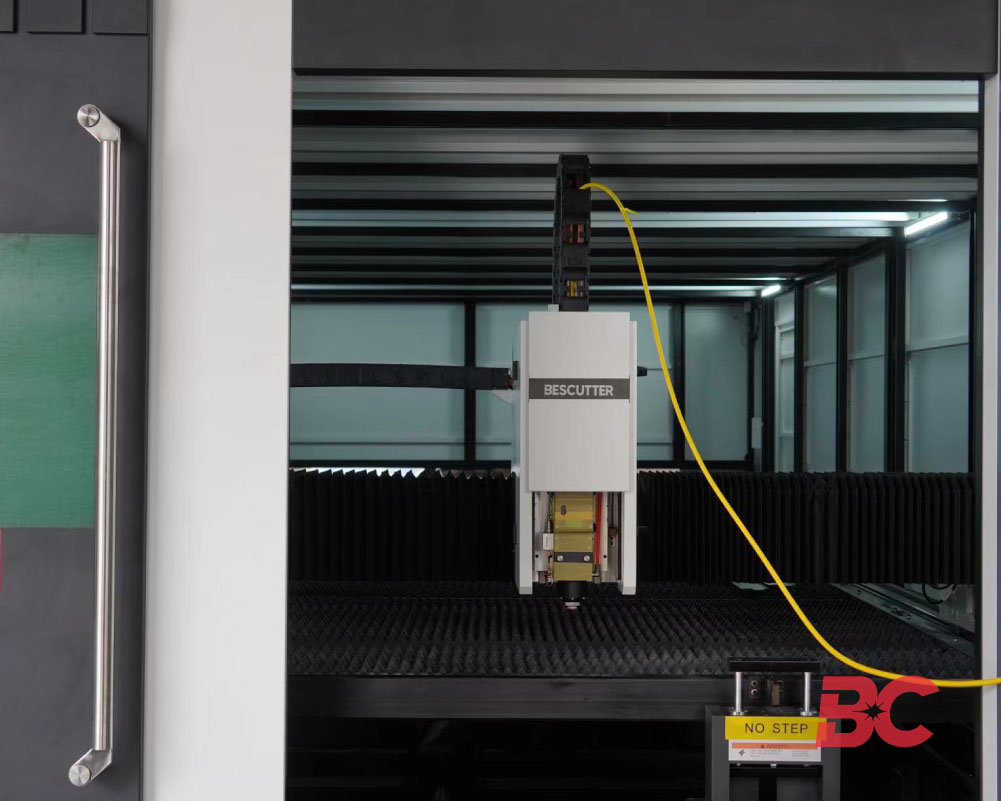

• Boci Laser Head optional Raytools BM111 BM06K
• Max Photonics Laser Source for high power and stability
• Yaskawa Servo Motor Drive System for smooth motion control
• Schneider Electrical Control and Japan Shimpo Reducer for industrial reliability
By loading this video, you agree to the privacy policy of Youtube.
FEATURES AT A GLANCE
MACHINE SPECS
| Specification Item | Detail |
|---|---|
| Machine Type | 6.096M Rotary with 220mm Chuck |

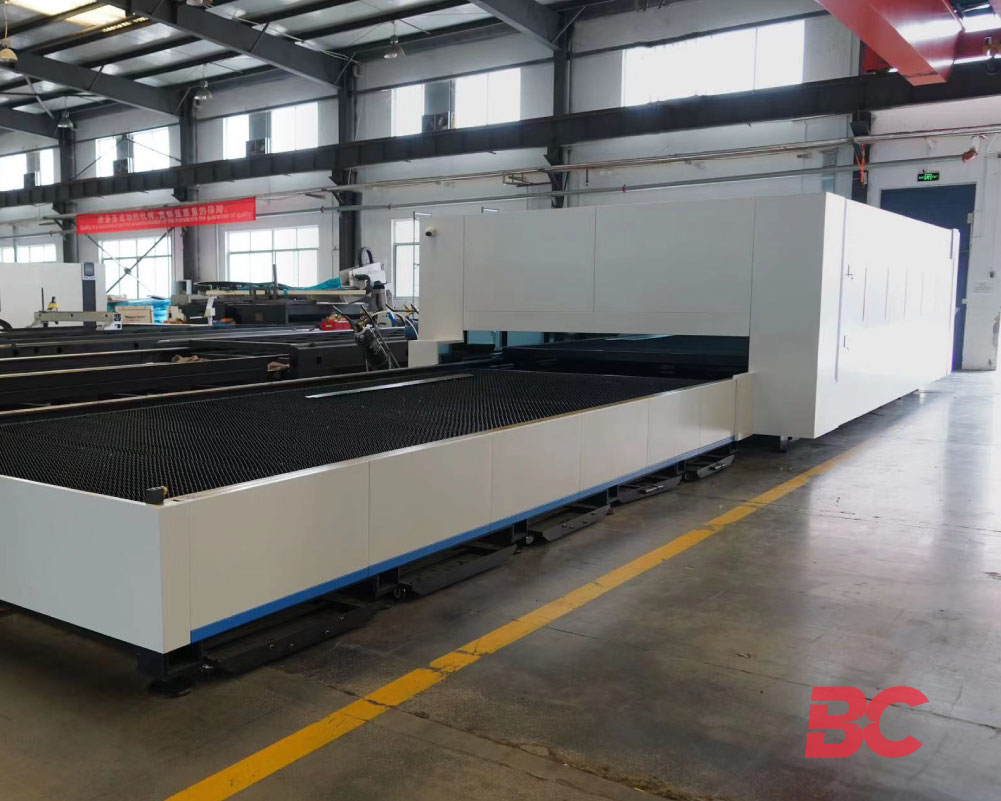

| Worktable | Exchange Bed with Full Coverage |
| Water Chiller | Tongfei 60Hz |

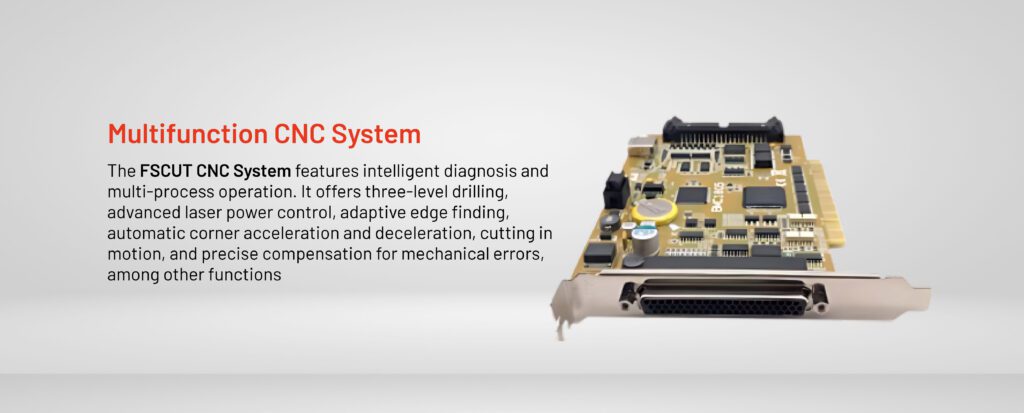

| Control System | FSCUT3000 System |

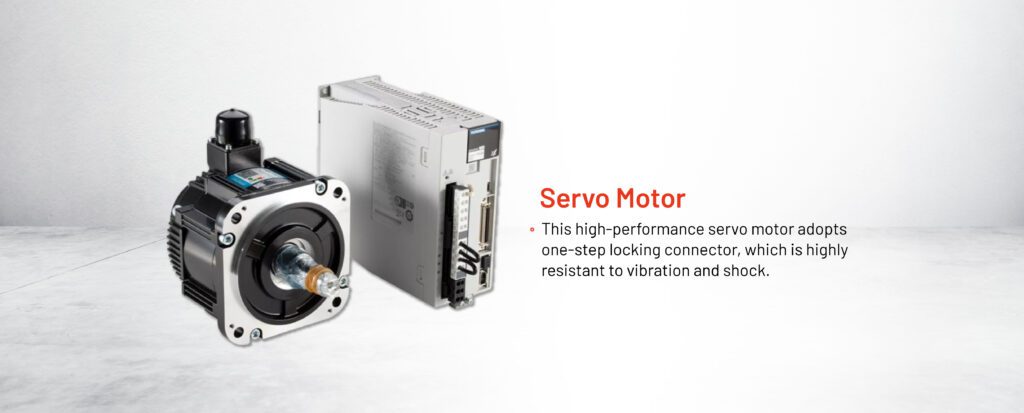

| Servo Motor | Yaskawa 400W, 1300W, 1800W |
| Reducer | Shimpo |
| Guide Rail & Rack | Standard |
| Stabilizers & Transformers | With one 50KVA Stabilizer and Transformer With one 30KVA Stabilizer and Transformer (from 480V) |
| Dust Extraction | 5.5KW Dust Fan |
| Laser Head | BS06K Laser Head 100/150 |
