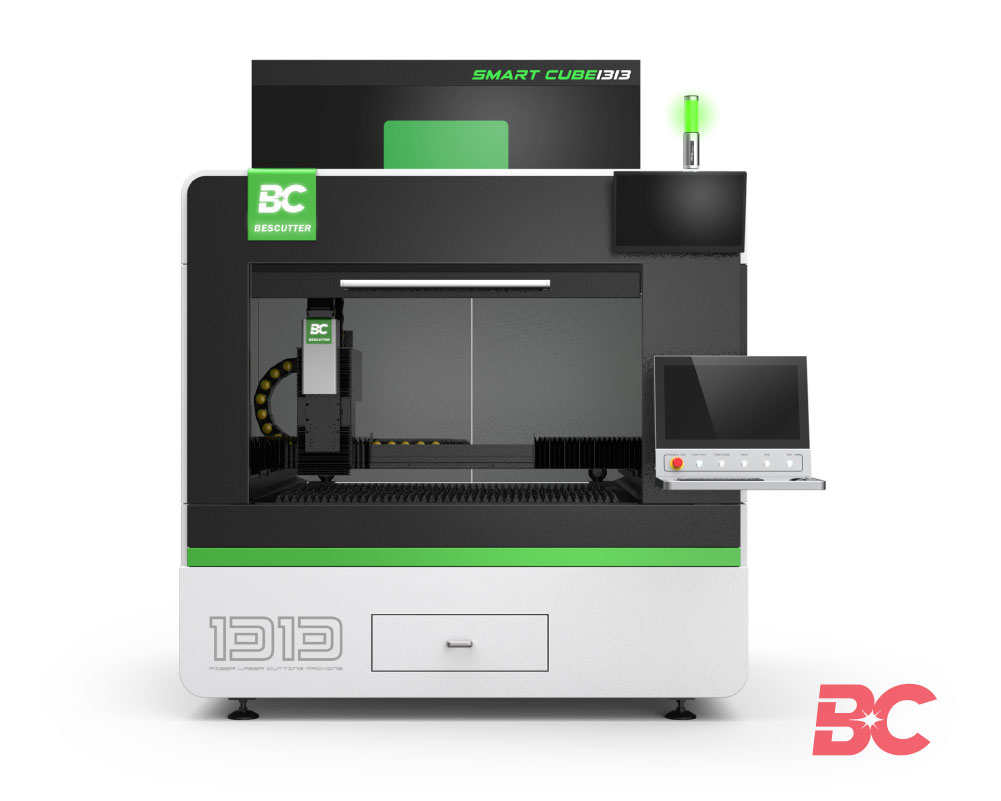

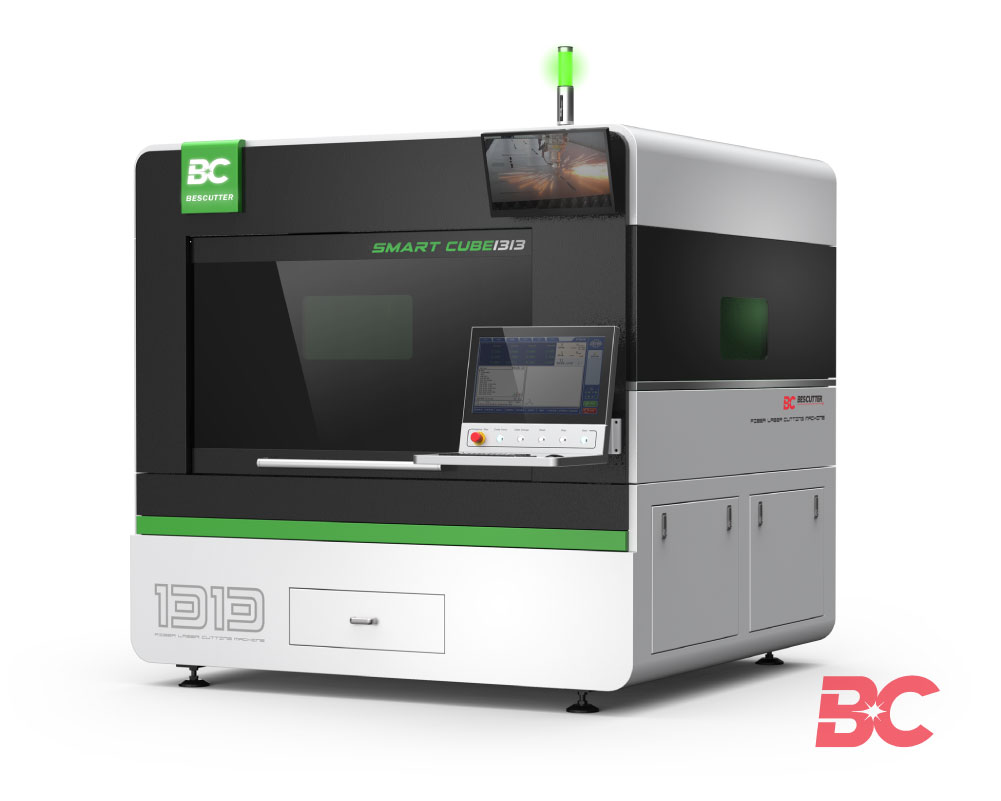

SMART CUBE
51" x 51" | 1500W - 6000W | Fiber Laser Sheet Metal Cutting Machine
The Smart Cube Fiber Laser Cutting Machine by BesCutter delivers industrial-grade performance in a compact, fully enclosed design, making it an ideal choice for shops with limited space that require high-precision metal sheet cutting. Designed for efficiency, safety, and productivity, the Smart Cube allows businesses to maximize workflow while maintaining exceptional cutting capabilities.
- 1500W – 6000W laser power.
- US-based support.
- Fscut 2000s software
Contact Us for More Information
SMART CUBE SERIES

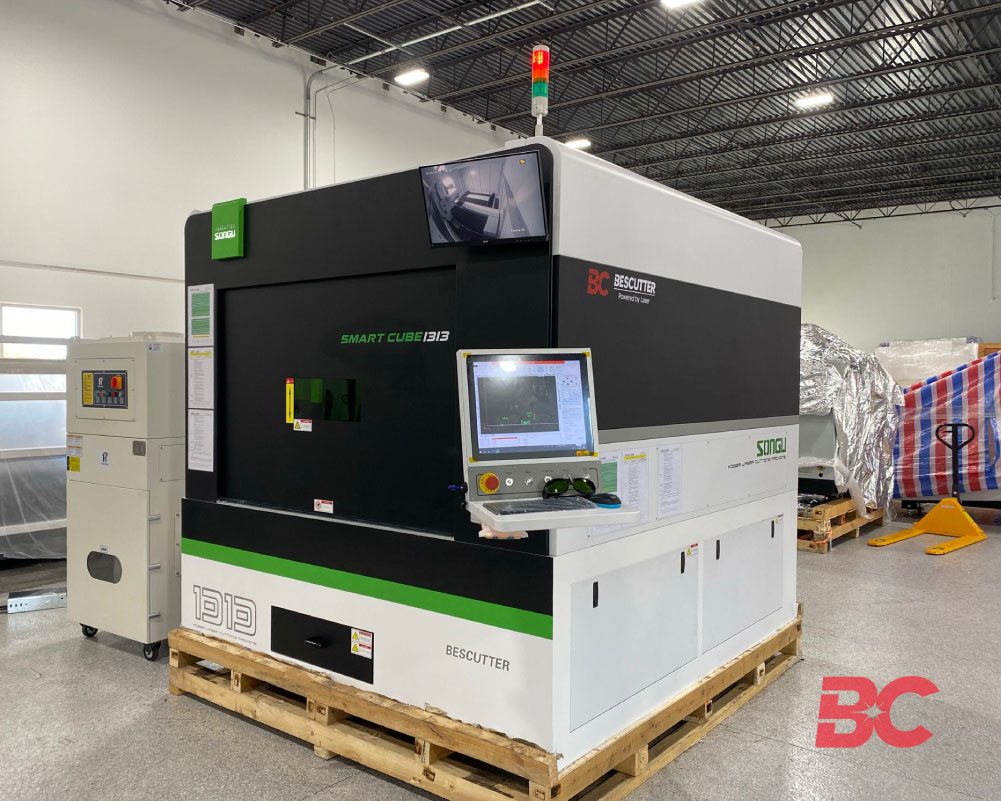

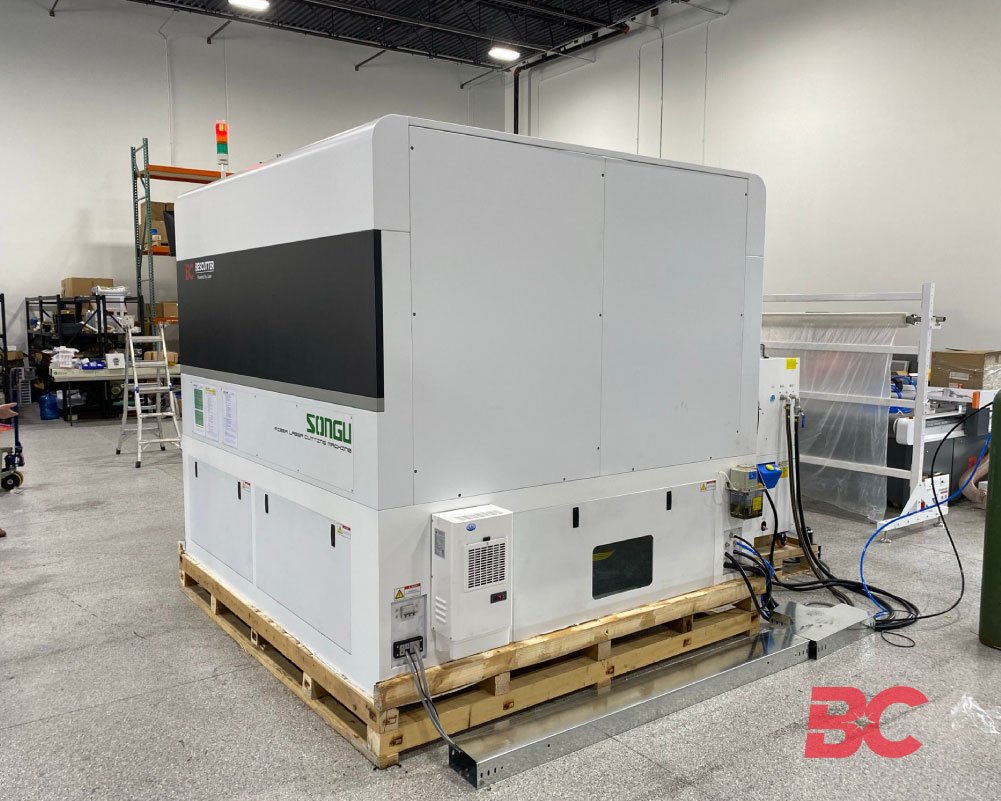

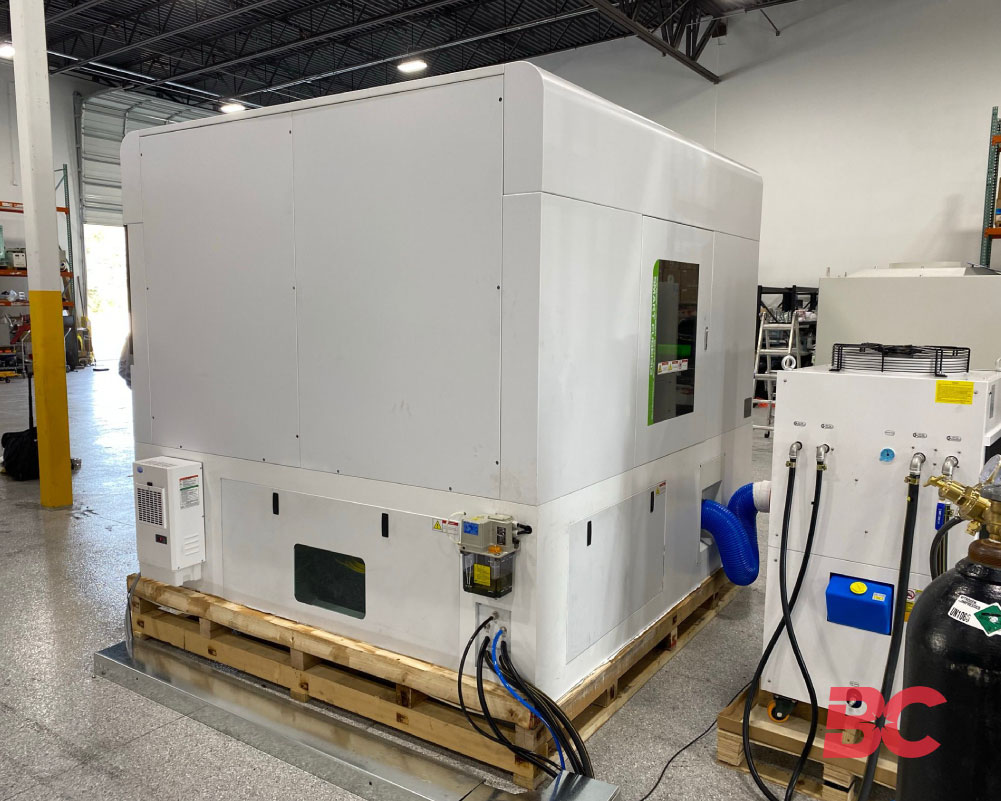

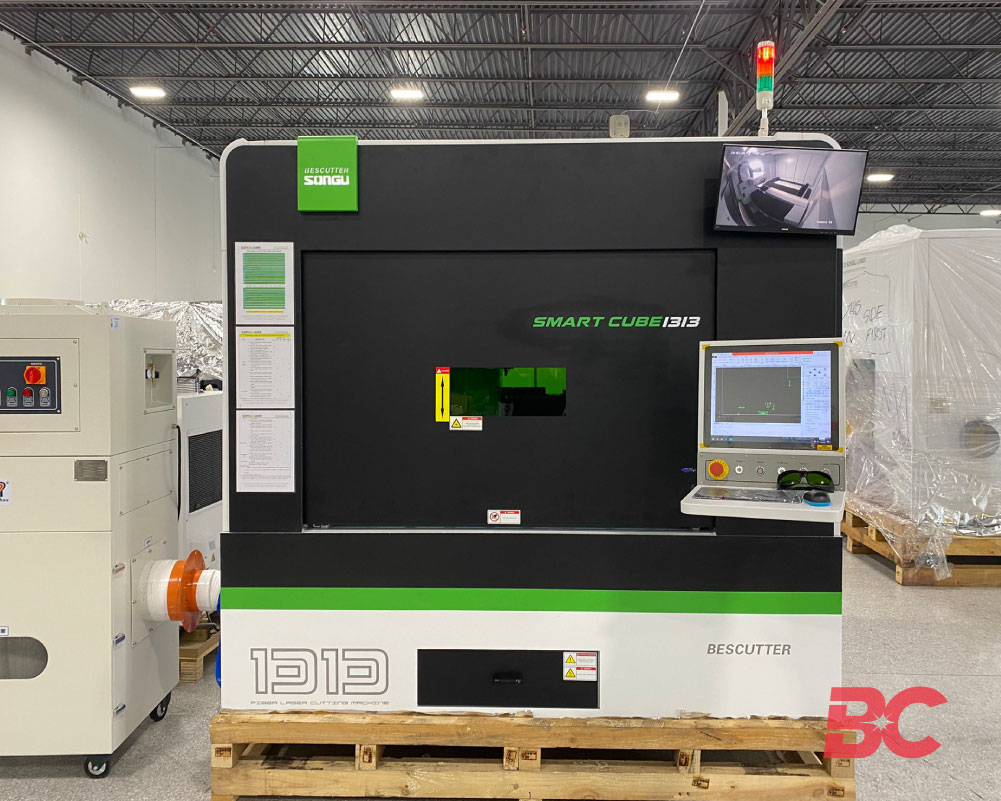

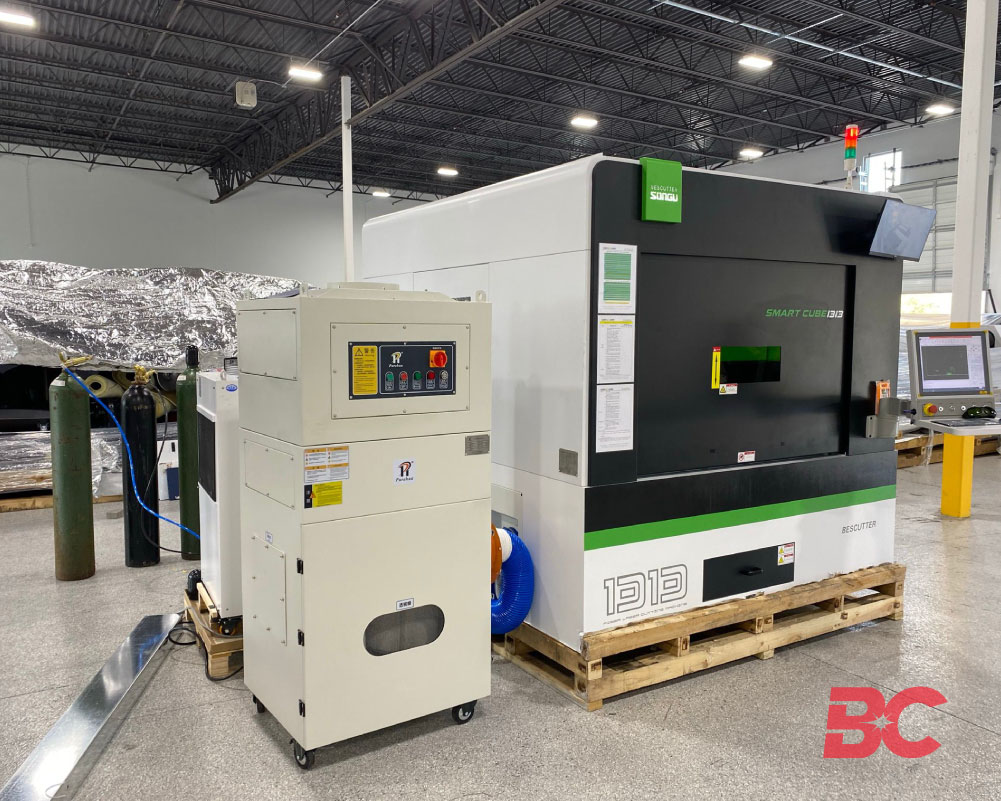

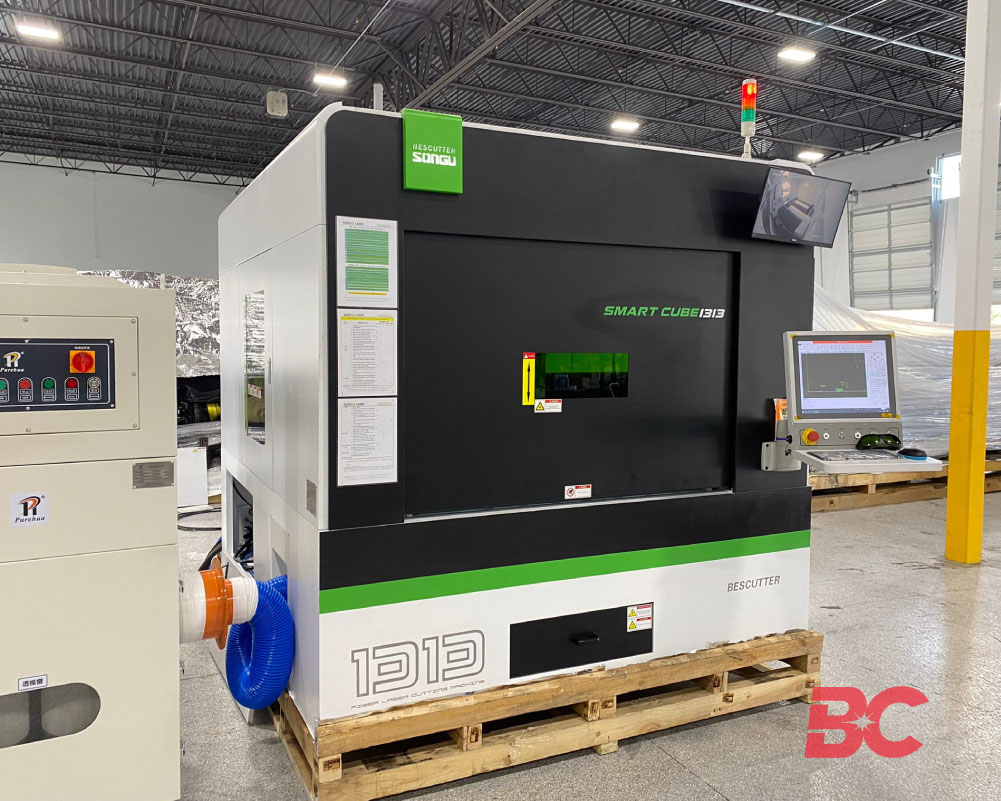

The BesCutter Smart Cube is our compact fiber laser cutting series, built for precision, safety, and efficiency. This fully enclosed machine is ideal for shops requiring high-accuracy cutting in a space-saving design. Available with laser power options ranging from 1500W to 6000W, the Smart Cube offers fast, reliable, and efficient metal cutting, making it an excellent choice for industrial applications.
The machine features an integrated CCD camera for real-time monitoring, ensuring precision and quality control. Its rigid welded frame and aluminum gantry provide stability and durability, while the FSCUT 2000S control system ensures seamless operation. Additionally, Bescutter’s US-based support guarantees quick troubleshooting and assistance whenever needed.

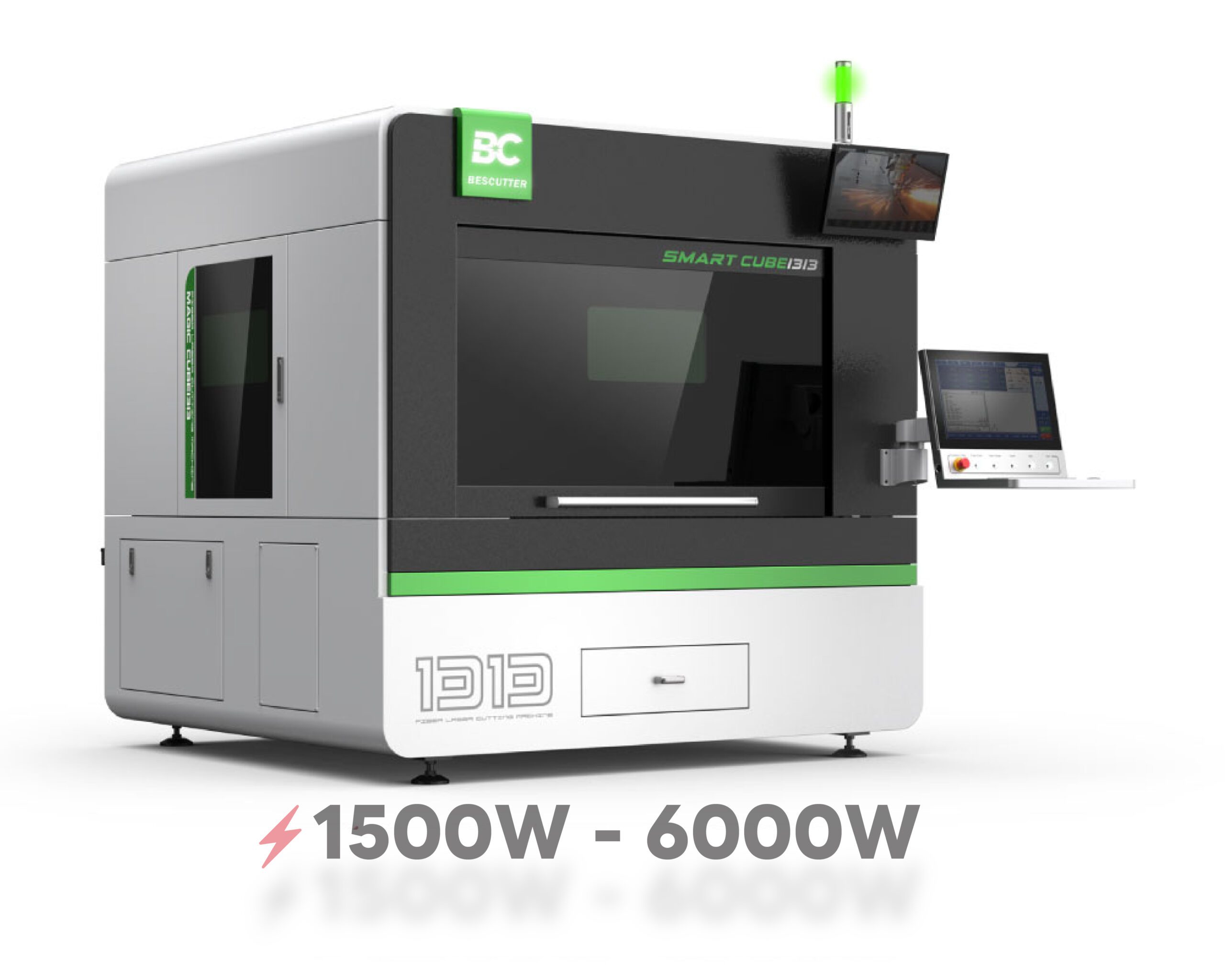

Power that fits your needs:
. Choose from 1500W to 6000W laser power depending on your necessities. Contact a team member for a free consultation.
Additional Features:

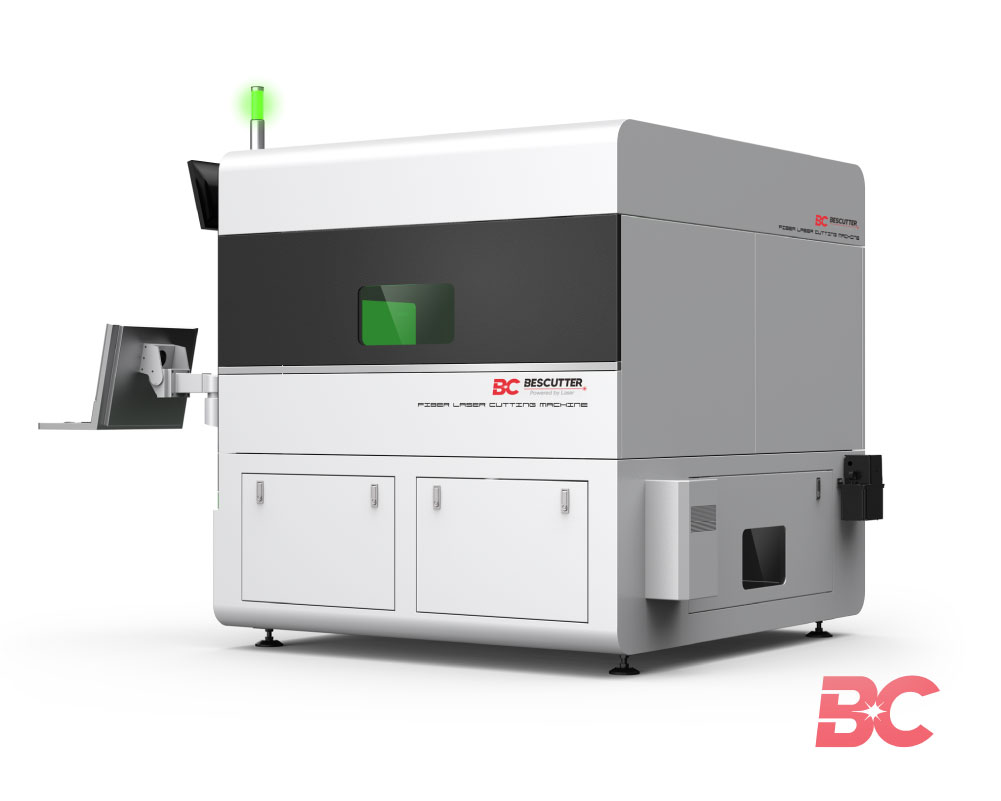

. Fully enclosed safety design for operator protection and a clean work environment.
. Auto-focus laser head ensures consistent cut quality across all thicknesses.

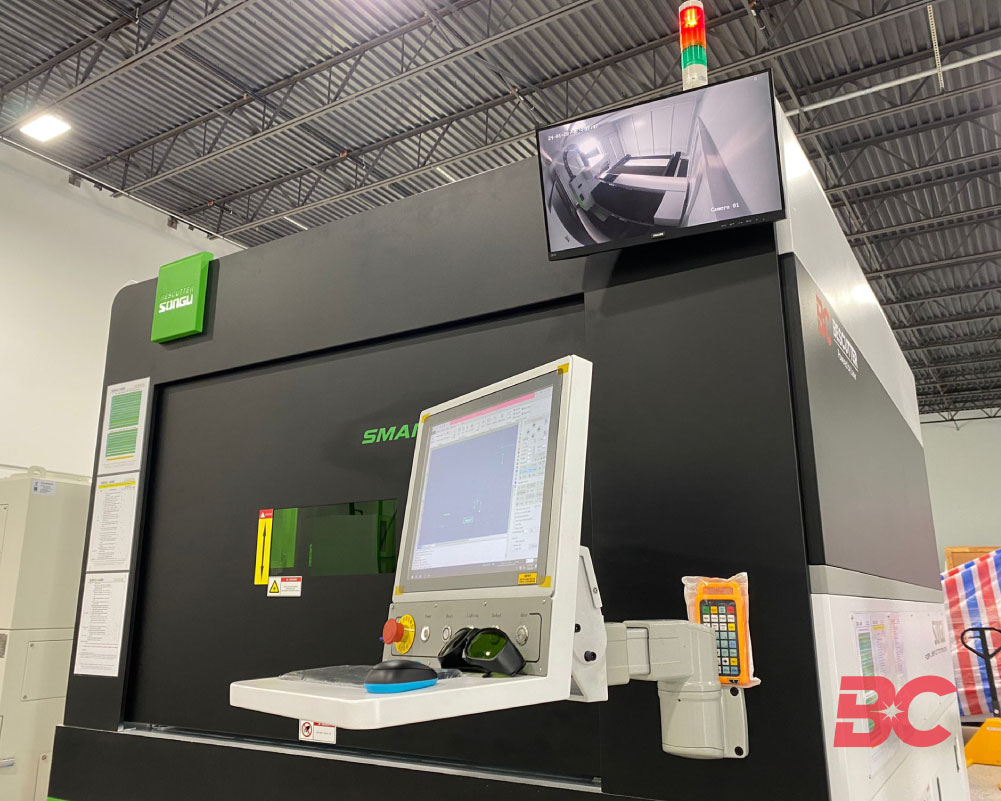

. CCD Camera System for real-time precision monitoring.
. High-speed operation with a maximum speed of 84m/min..
. High-rigidity aluminum gantry for stability and smooth movement.
HIGHLIGHTED FEATURES
THE BEST TOOL FOR PROCESSING ALL CUTTING CAPACITIES
Cost-effective
The Smart Cube Fiber Laser Cutting Machine minimizes the need for multiple machines by offering sheet cutting capabilities. It is the optimal choice for best cost-effectiveness.
Easy Cutting
Design parameters and automatic cutting matching help you simplify the cutting process, effortlessly transforming you into a cutting master.
Efficient Production
With fast transmission speed and high-performance bus servo motor delivering leading dynamic performance, the Smart Cube series significantly increases processing efficiency, allowing you to achieve efficient production.
FEATURES AT A GLANCE
MACHINE SPECS
| Specification Item | Detail |
|---|---|
| Laser Power | 1500W - 6000W |
| Working Area | 51” W x 51” L (1,300 mm x 1,300 mm) |
| Overall Dimensions | 85” L x 91” W x 83”H (2150x2300x2120 mm) |
| Weight | 3,300 lbs (1,500 kg) |
| Positioning Accuracy | ±0.05 mm/m |
| Repeated Positioning Accuracy | ±0.02 mm |
| Maximum Speed | 55”/s (84m/min) |
| X-Y-Z Servo Motors | Y 2 x 1,500W - X 1 x 1,000W - Z 1 x 400W |
| Electromechanical | SCHNEIDER, SMC and etc |
| Controlling System | CYPCUT BCS 100 |
| X-Axis Travel | 51” (1,300 mm) |
| Y-Axis Travel | 51” (1,300 mm) |
| Z-Axis Travel | 4” (100 mm) |
| Laser Resonator | Max & Han´s |
| Laser Head | RAYTOOLS |
| Lubrication System | Automatic Lubrication (Lubrication reminder available) |
