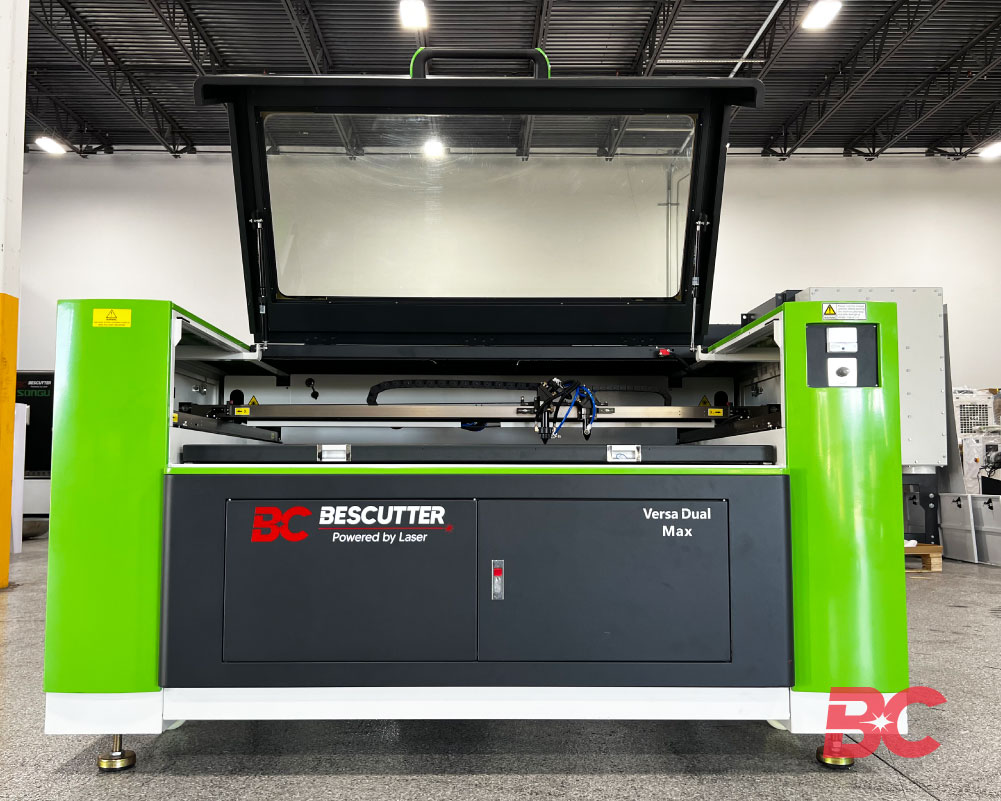

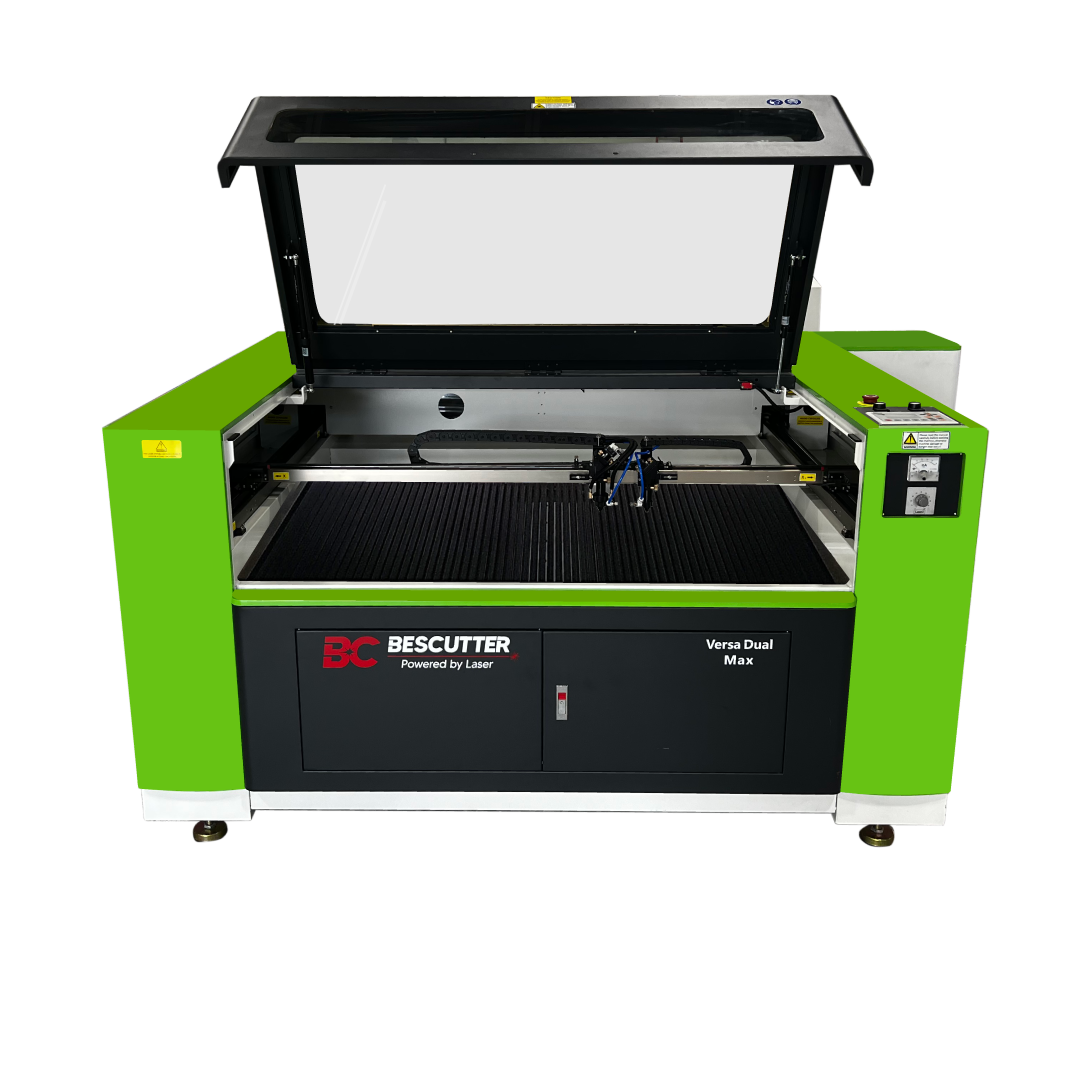

VERSA MAX 52"X40"

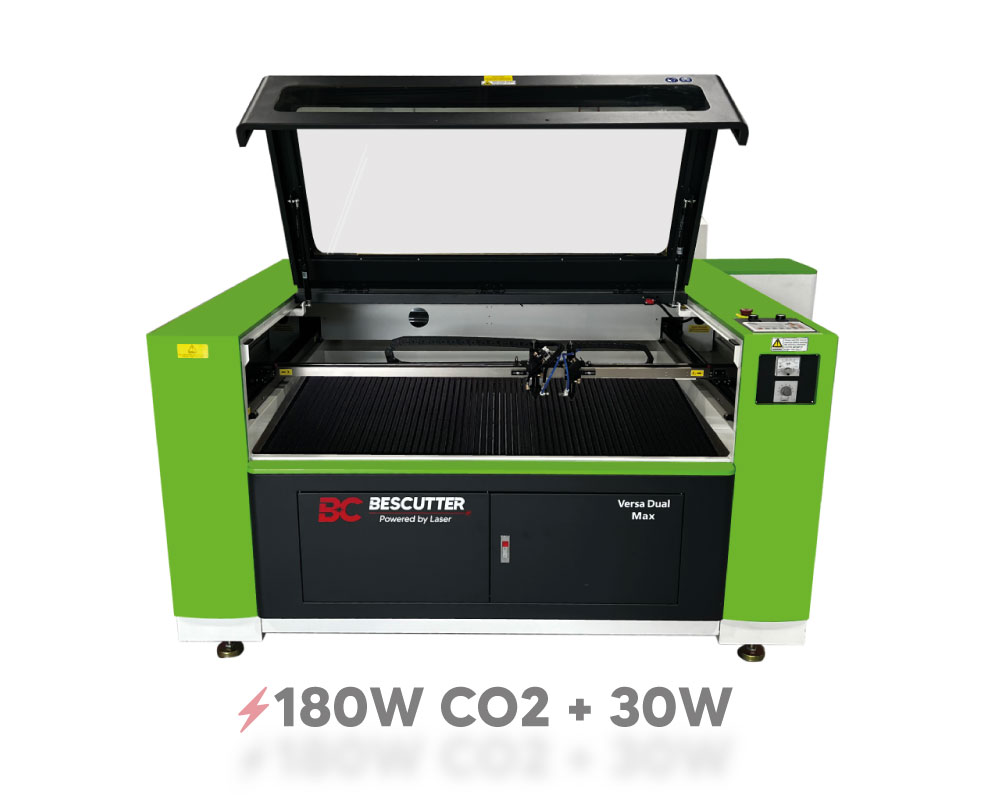

180W CO2 + 30W RF METAL CERAMIC LASER SOURCE
CO2 LASER CUTTER & ENGRAVER | OPTIONAL ROTARY
CMA1309-T-A | FAST DELIVERY

KEY SPECIFICATIONS
  • Optional Rotary

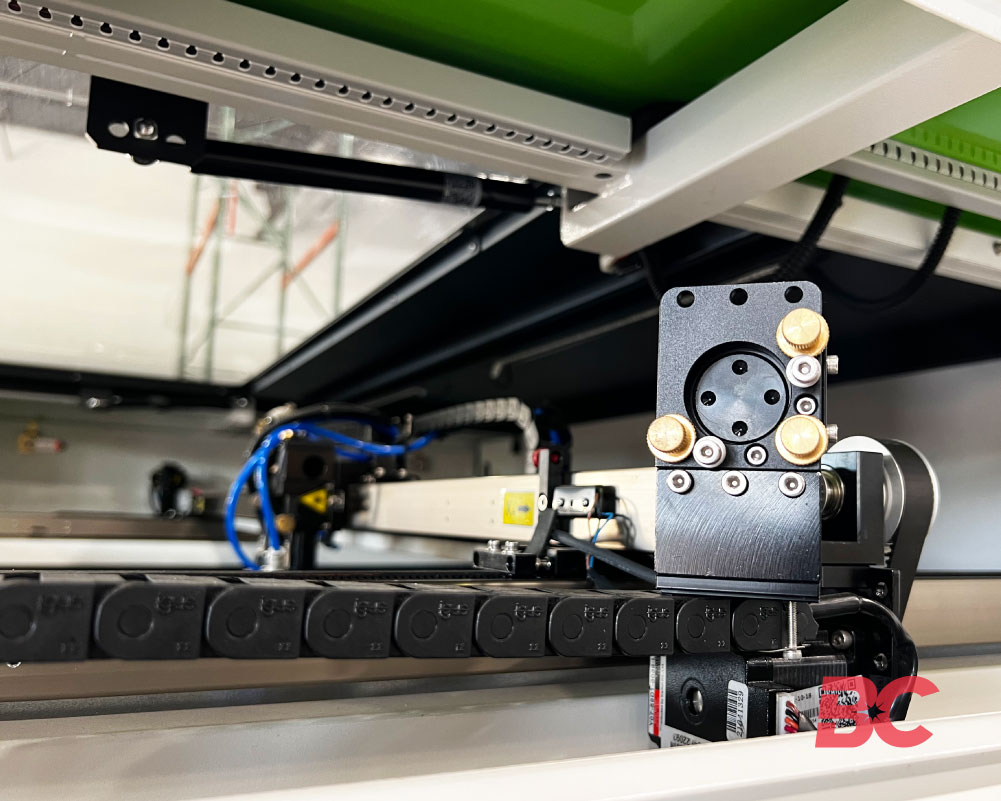

  • Dual Laser Head
  • 180W Laser Tube
  • Fast Delivery
  • Us Based Support
Contact Us for More Information
Name(Required)

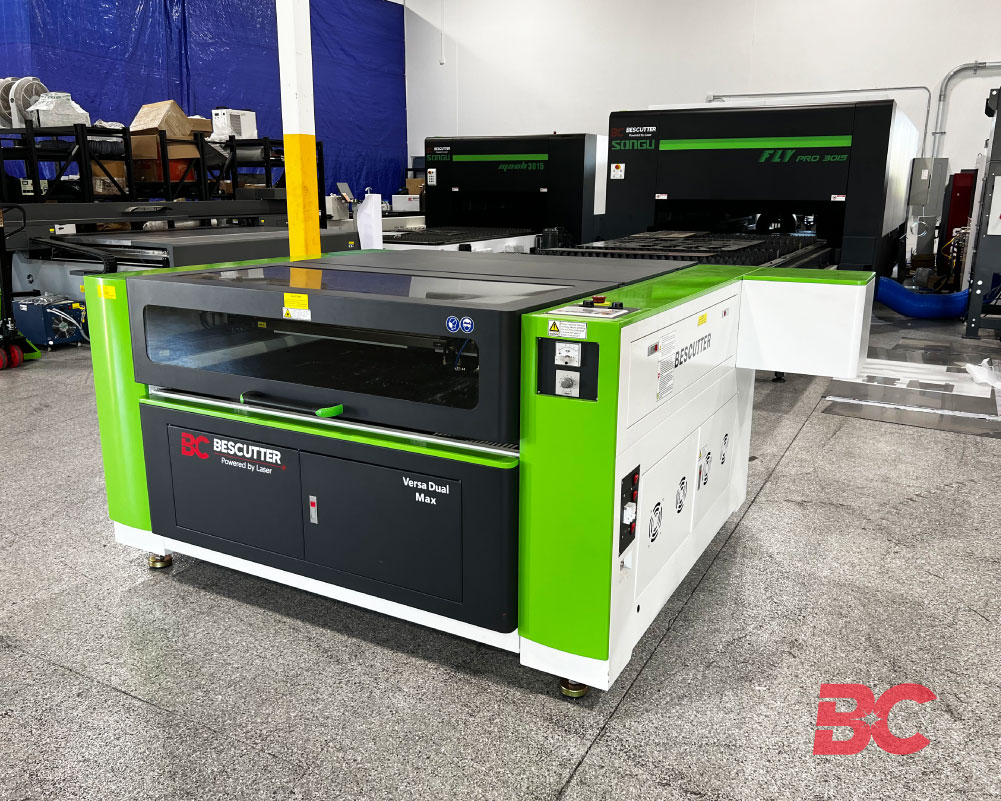

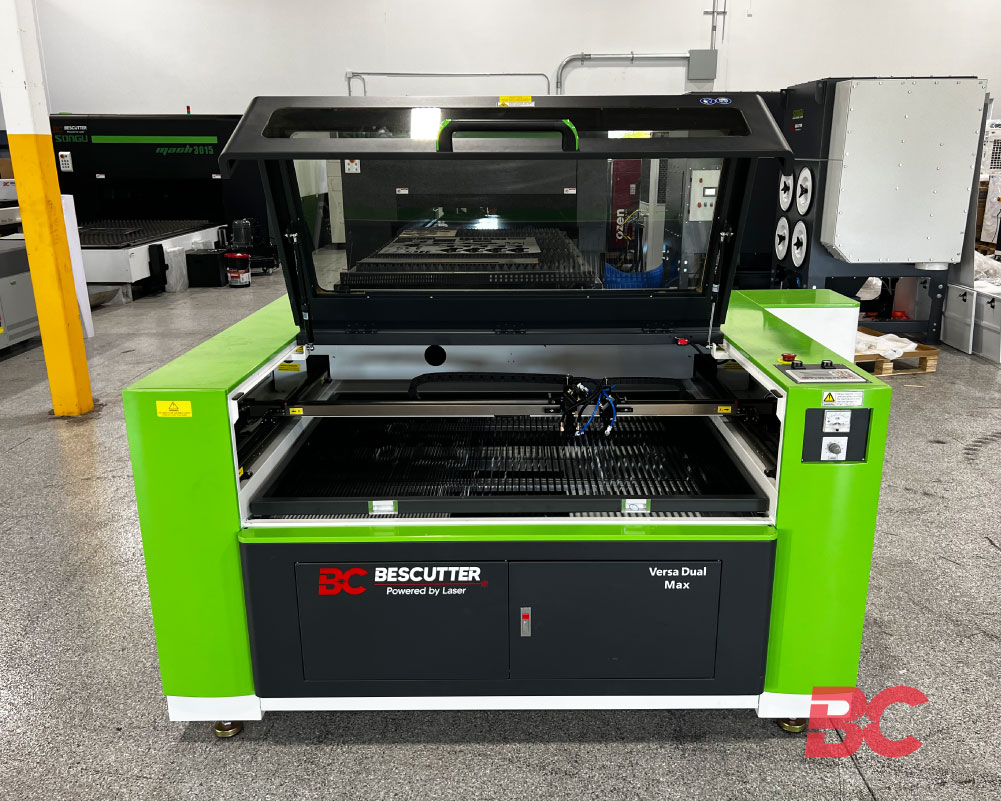

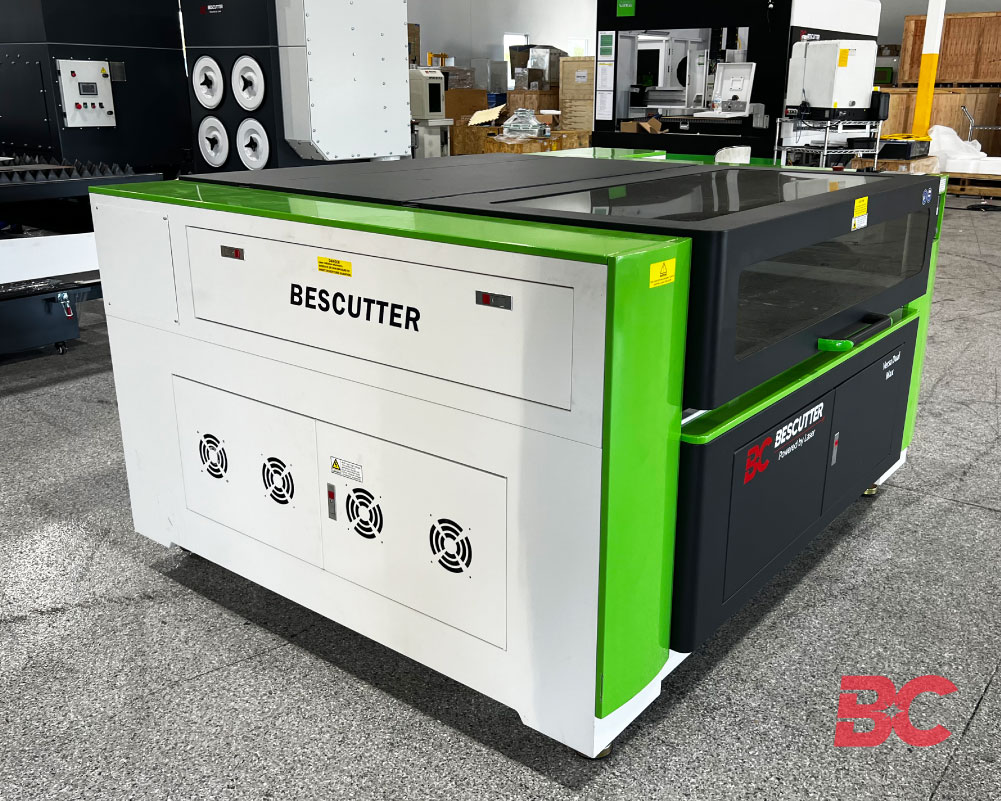

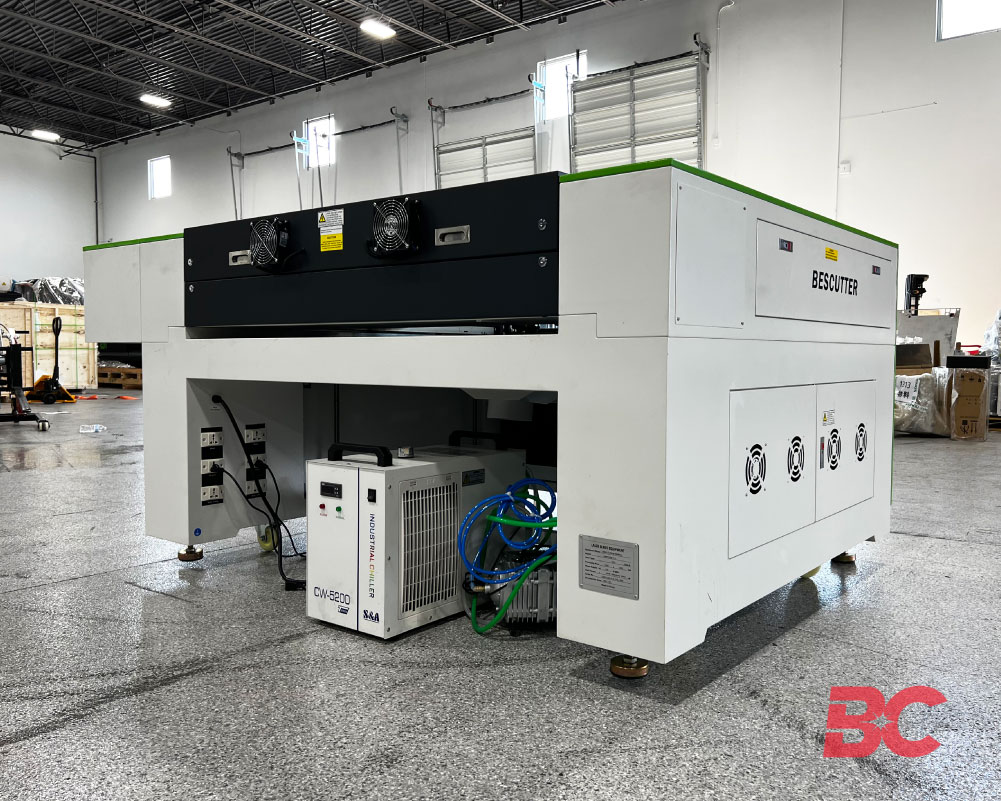

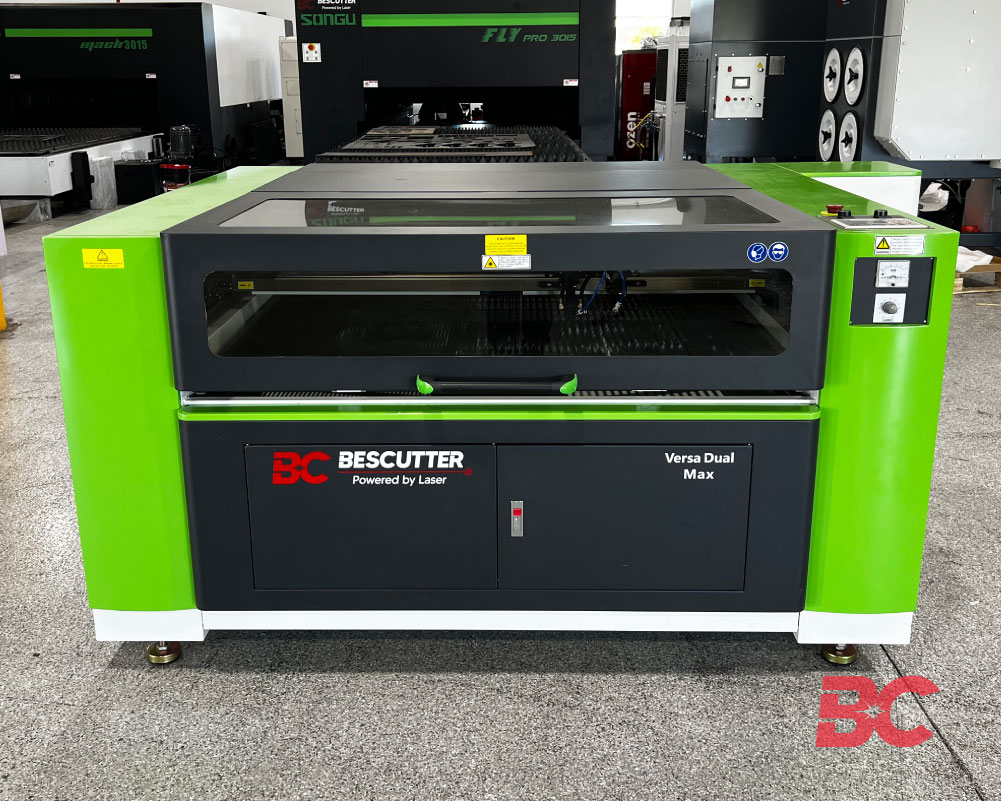

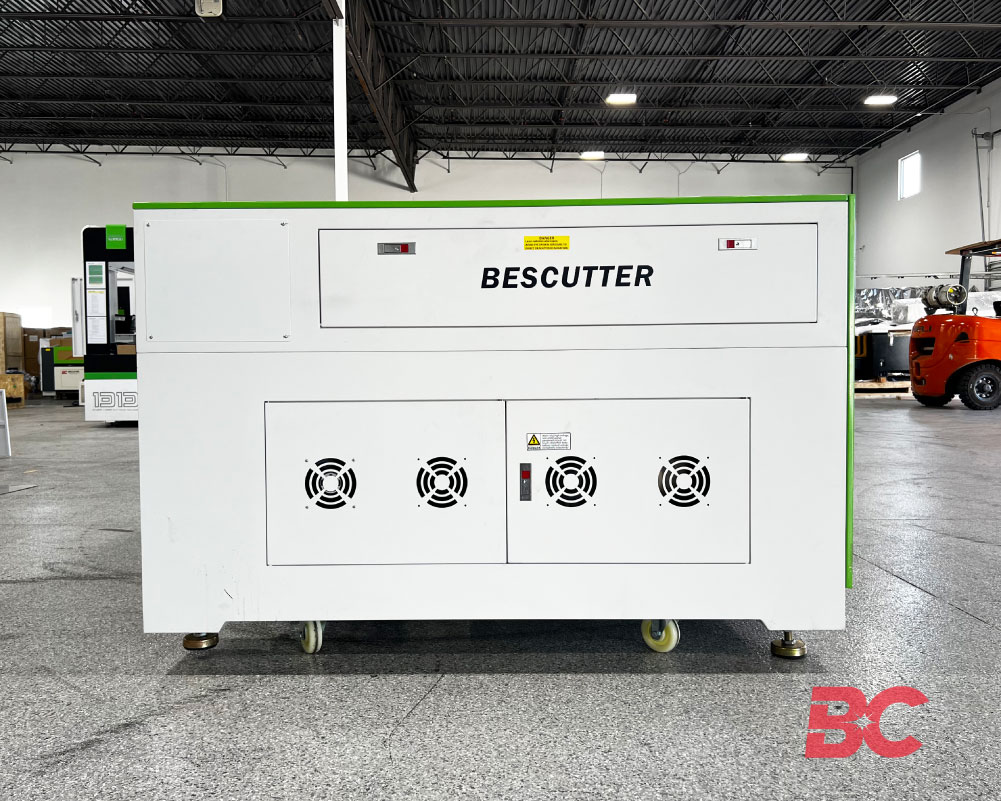

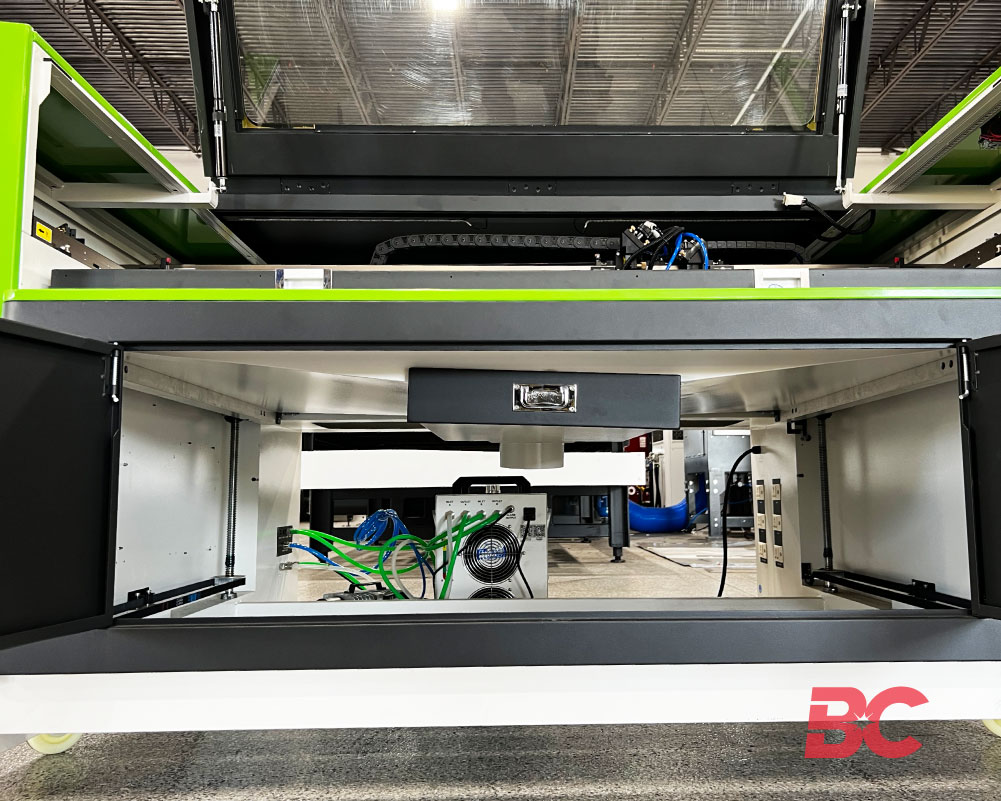

VERSA MAX SERIES

Introducing the Versa Max CO2 Laser from Bescutter, a state-of-the-art laser cutting and engraving solution designed to cater to a wide range of creative and industrial applications. This machine stands out with its expansive 52″ x 40″ working area, providing ample space for large-scale projects and ensuring versatility in handling various material sizes.

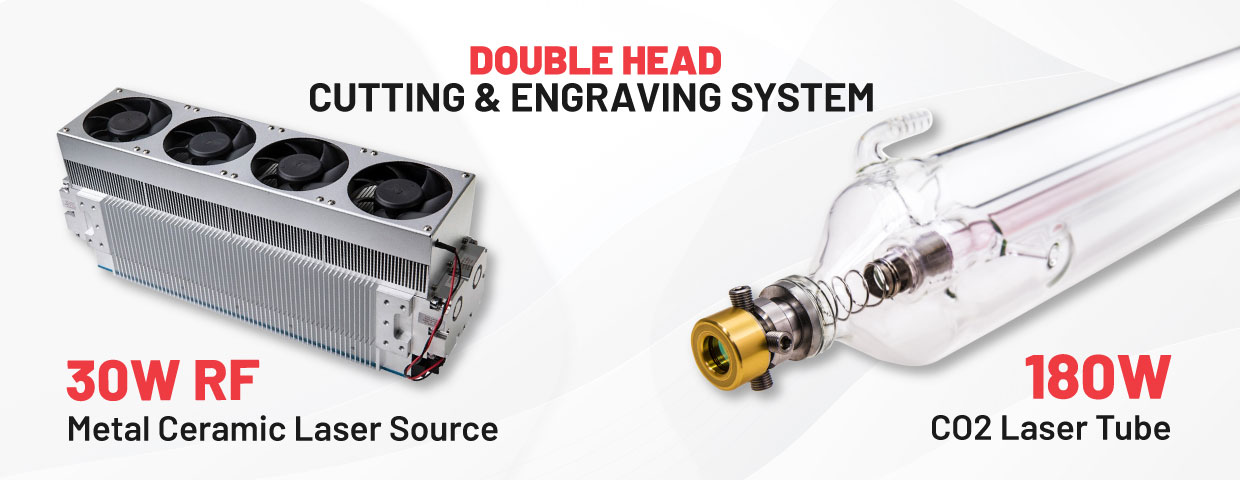

At the heart of the Versa Max CO2 Laser is its powerful dual laser system, combining a 180W CO2 glass laser tube and a 30W RF metal ceramic laser source. This unique combination allows for exceptional cutting depth, speed, and precision, making it suitable for a diverse array of materials and applications. From intricate engraving to robust cutting, the Versa Max is engineered to deliver top-notch performance and reliability.

The inclusion of the RF CO2 tube ensures superior engraving quality, providing better detail and smoother results compared to standard tubes

Ideal for businesses in signage, woodworking, fashion, and more, the Versa Max CO2 Laser from Bescutter is a versatile and powerful tool that can elevate the quality and scope of your work. Whether you’re creating custom designs or producing high-volume orders, the Versa Max is engineered to meet and exceed your laser cutting and engraving needs.

By loading this video, you agree to the privacy policy of Youtube.

FEATURES AT A GLANCE

MACHINE SPECS

TECHNICAL SPECIFICATIONDETAILS
Laser Power:30W - 180W

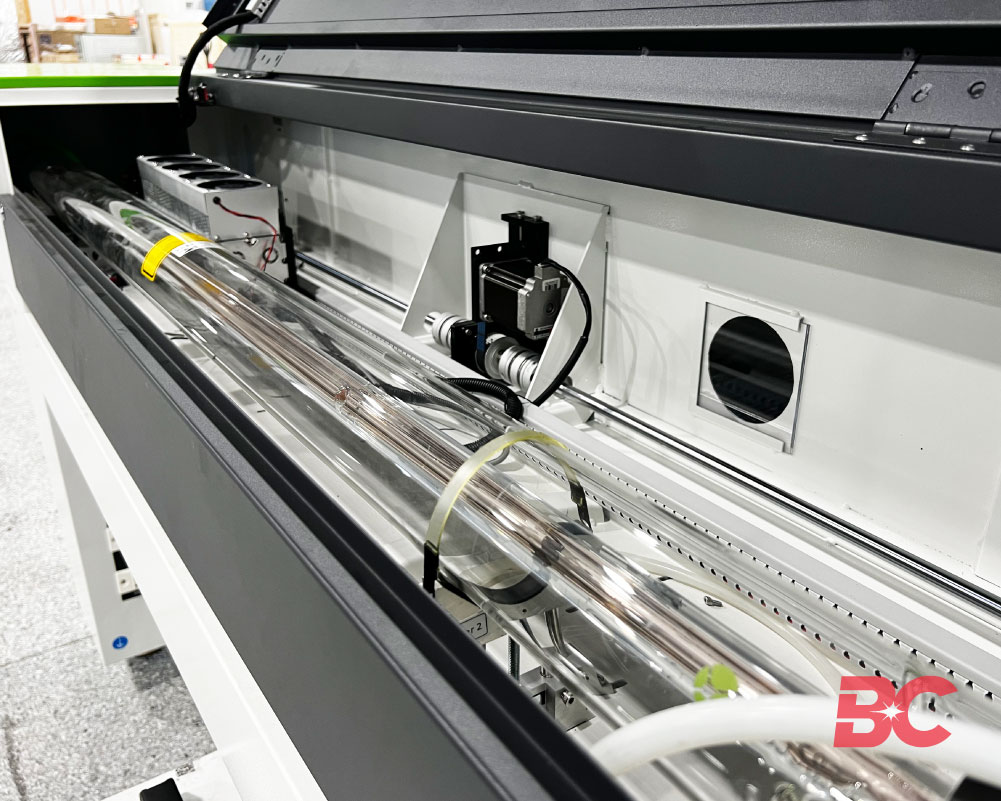

Laser Tube Type:ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 180W 10,000 hours Approx - 30W RF 40,000 hours Approx

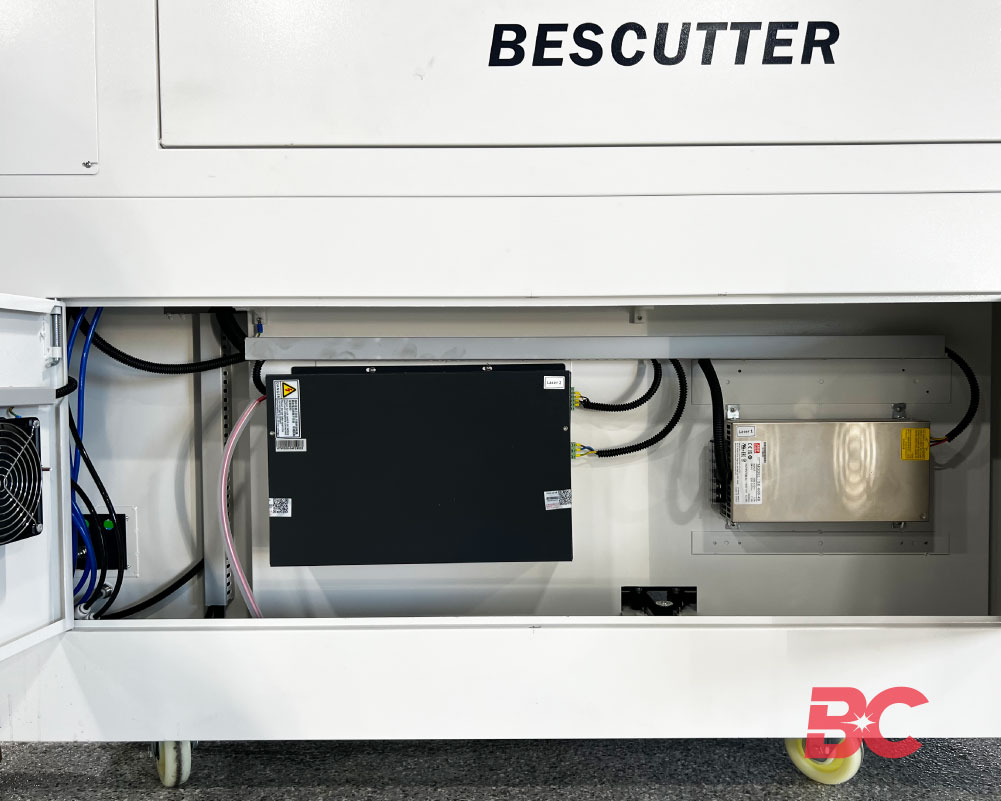

Power Supply:AC 110V /60Hz
Focus Lens:2.5" Focal Lens
Working Area:52" x 40" (1,321 x 1016 mm)
Working Platform:Aluminum Slats Blades / Multi-Purpose
Z-Axis Displacement:±8in (±200 mm)
Max Moving Speed:18 in/s (500 mm/s)

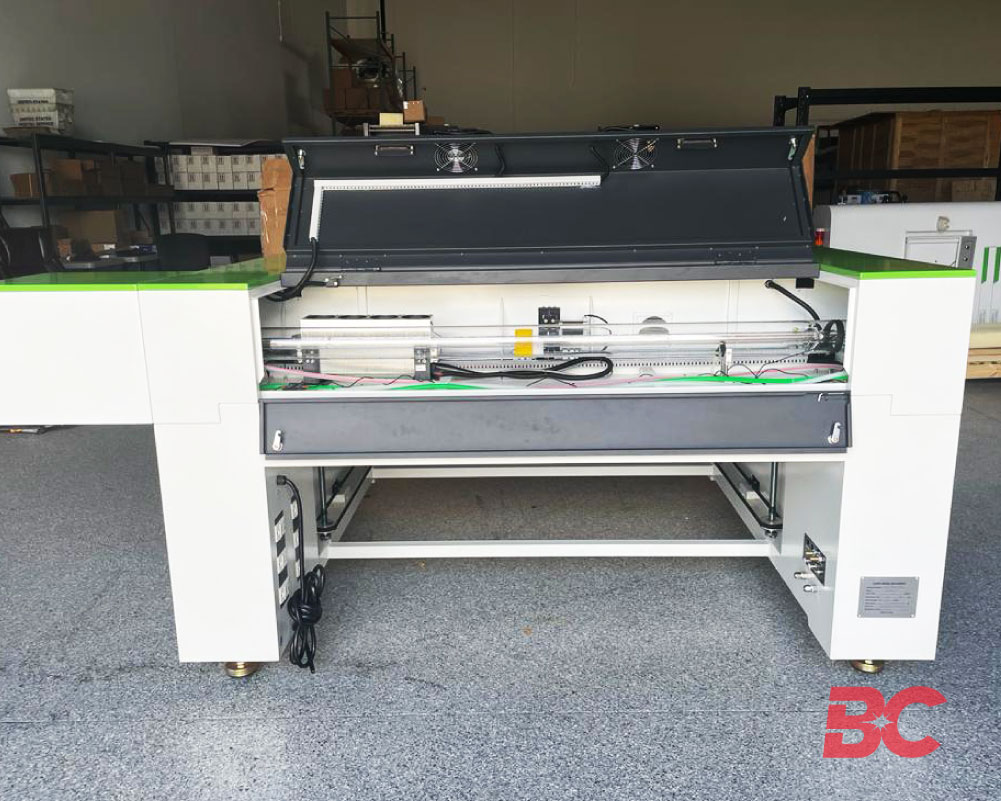

Pass-Through Door:Front and back 1.125 inches (H) / 52.183 Inches (W)
Machine Dimensions:85" x 65" x 45" (2,159mm x 1,651mm x 1,143mm)
Net Weight:1,250lb (566 Kg)
Gross Weight:1,323lb (600 Kg)
Package Dimensions:90" x 70" x 50" (2,286mm x 1,778mm x 1,270mm)
Class:Class 4 Laser
Controlling System:RuiDa Controller RDC6562G-YM
Software:Smart Carve / LightBurn® (optional)
Connection Method:USB cable / Ethernet cable
Software Compatibility:Photoshop, Illustrator, CorelDraw y AutoCAD
co2-versa-star-150w-cutting-engraver-Bescutter
