FABRIC PRO

63'' X 39'' - 71'' X 39'' | CO2 LASER CUTTER & ENGRAVER AVAILABLE DOUBLE HEAD, CONVEYOR BELT AND AUTO-FEEDER

KEY SPECS

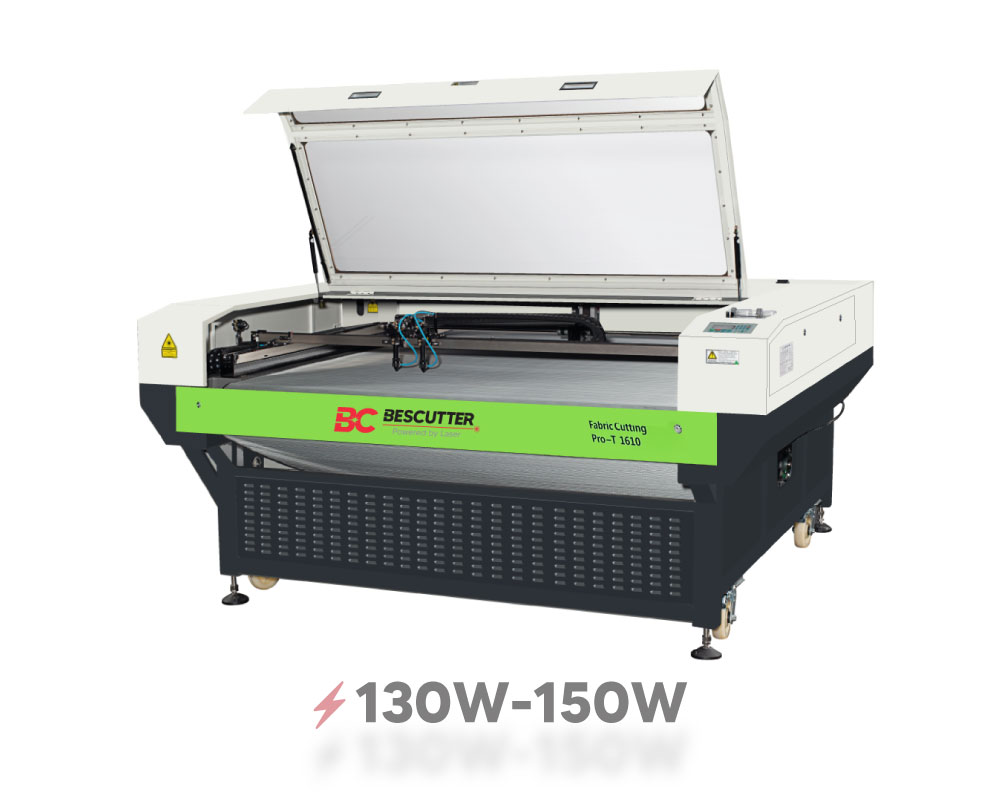

  • 130/150W  Power Options.
  • Available Double Head, Conveyor Belt And Auto-Feeder.
  • US Based Support
Contact Us for More Information
Name(Required)

BESCUTTER FABRIC PRO SERIES

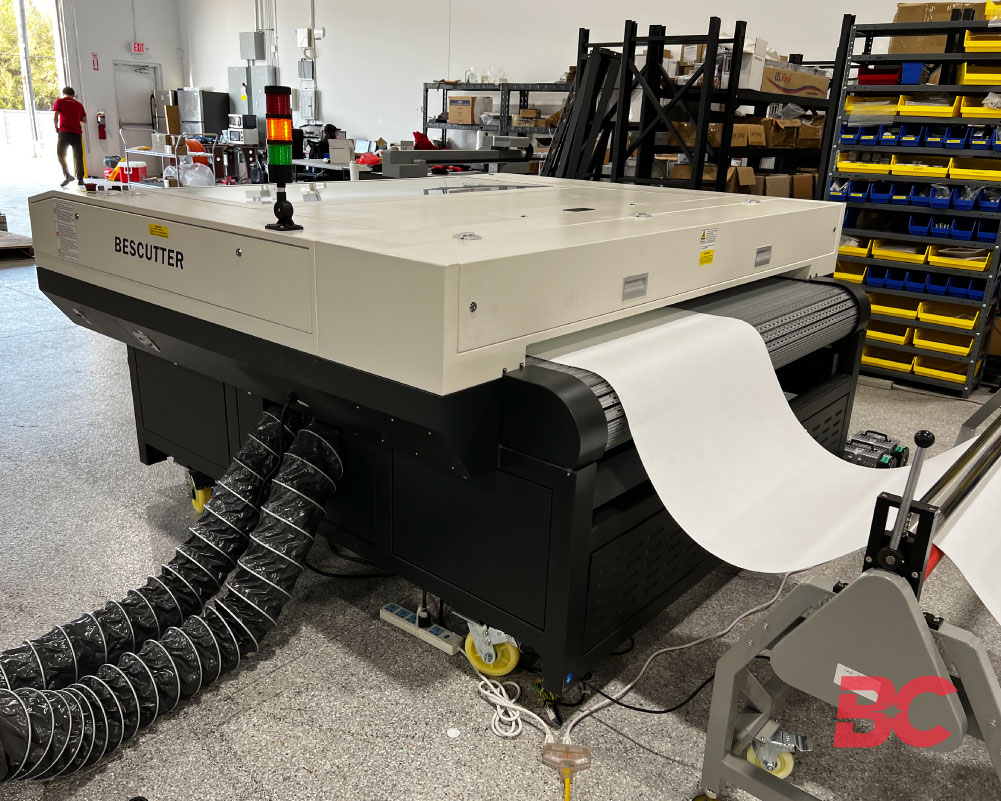

Introducing the Fabric PRO, a state-of-the-art CO2 laser machine designed to deliver exceptional performance in fabric engraving and cutting. With speeds of up to 600 mm/s, the Fabric PRO stands out for its rapid and efficient engraving processes, enabling precise and detailed results in record time.

Among its innovative features, it includes an integrated smoke extractor and a laser tube cooler, ensuring continuous, uninterrupted operation without overheating. Additionally, it features an air assist system that prevents smoke from affecting the lens, ensuring longer machine life and optimal performance.

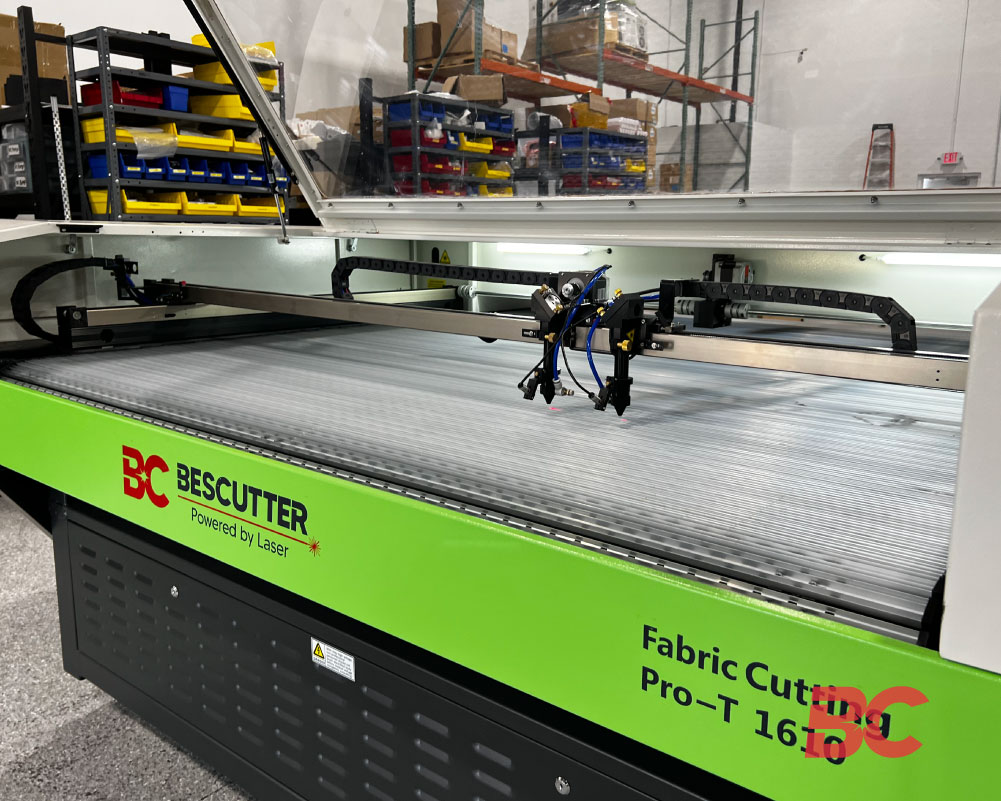

The E-shape blade mesh conveyor, made from aerospace-grade aluminum, is lightweight and features a stable structure, improving precision and stability during operation. For greater versatility, the Fabric PRO has a pass-through door, allowing fabric to be fed from the back, enabling

By loading this video, you agree to the privacy policy of Youtube.

FEATURES AT A GLANCE

MACHINE SPECS

TECHNICAL SPECIFICATIONDETAILS
Laser Power:130W (150W Optional)
Laser Tube Type:ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx
Power Supply:AC 220V (±10%) 60Hz
Focus Lens:2.0" Focal Lens
Working Area:63" (1600 mm) x 39" (990 mm) - 71'' (1803mm) X 39'' (990mm)
Working Platform:E-shapes blade mesh conveyor belt
Z-Axis Displacement:N/A
Max Moving Speed:39 in/s (700 mm/s)

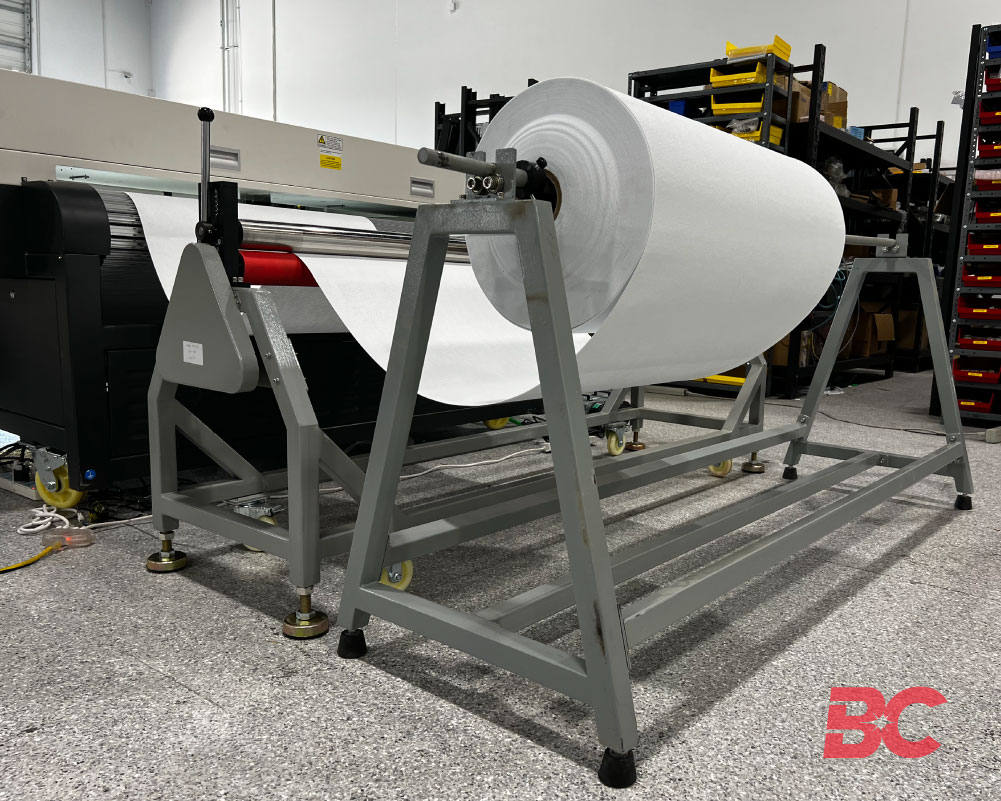

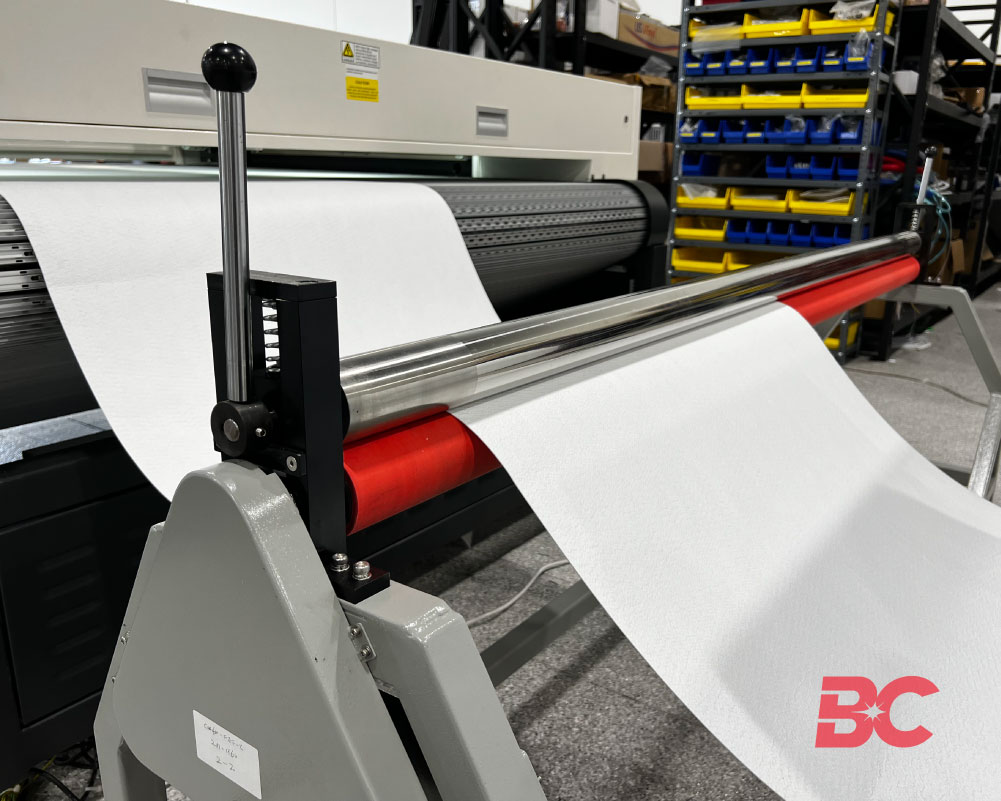

Pass-Through Door:Auto-Feeder textile back
Transmission:Belt/ Stepper motor
Operation Mode:Software / Embedded Computer

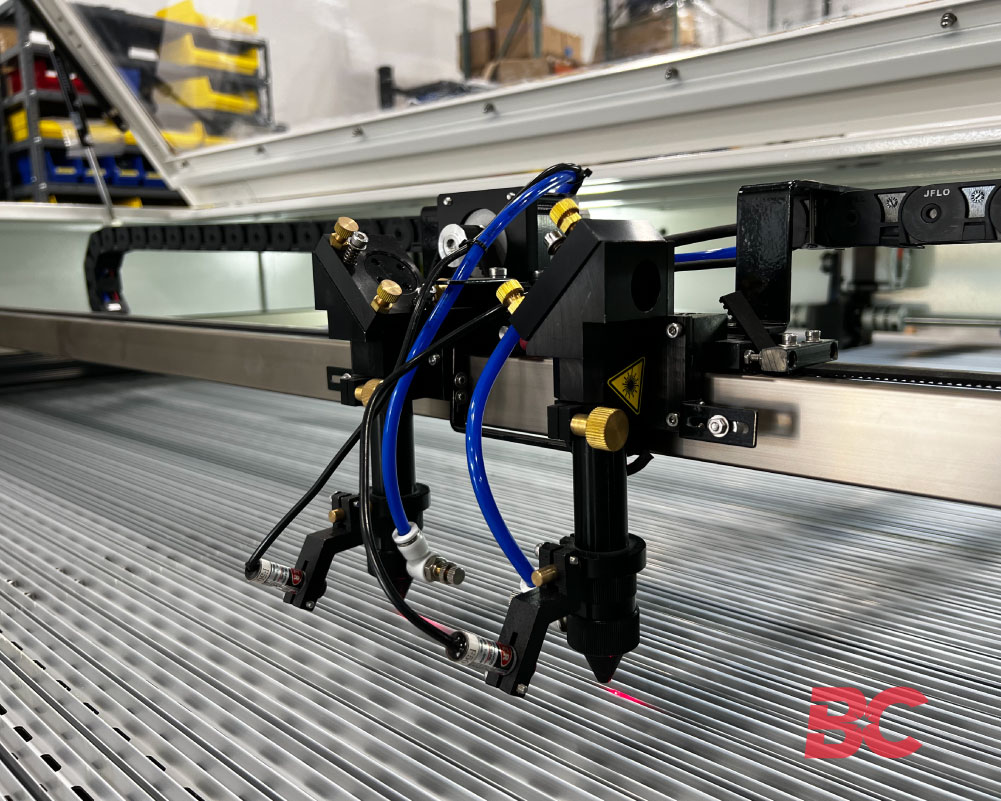

Optional Upgrades:Double Laser Head
Controlling System:RuiDa controller / RDC6442G-YM-B(EC)
Software:Smartcarve / LightBurn® (optional)
Connection Method:USB Cable / Ethernet
Software Compatibility:Photoshop, Illustrator, CorelDraw and AutoCAD
Class:Class 4 Laser
