FEATURES AT A GLANCE
TECH SPECIFICATIONS

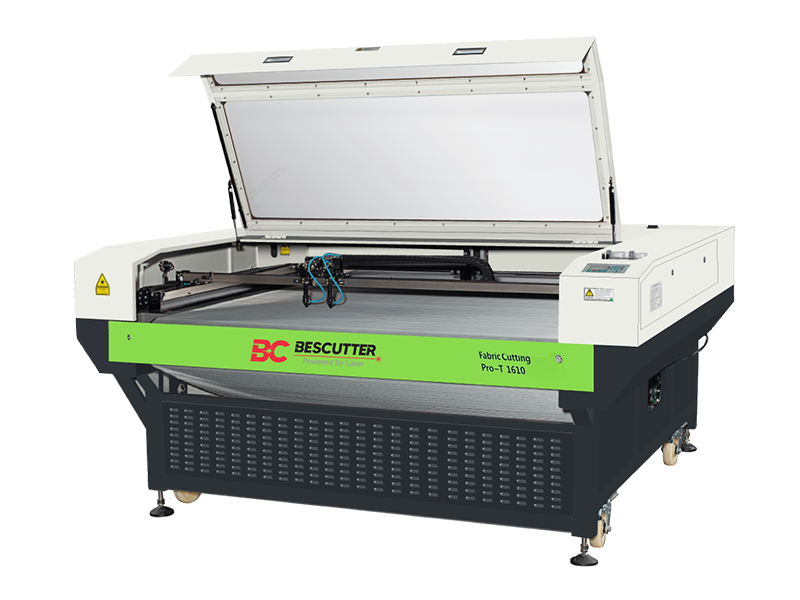

FABRIC PRO 63" X 39" - 71" X 39"
130W - 150W
LASER POWER
130W (150W Optional)
LASER TUBE TYPE
ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx
WORKING AREA
63" (1600 mm) x 39" (990 mm)
71'' (1803mm) X 39'' (990mm)
CONTROLLING SYSTEM
RuiDa controller / RDC6442G-YM-B(EC)
MAX MOVING SPEED
39 in/s (700 mm/s)
MACHINE DIMENSIONS
(63"x 39") 87" x 68" x 46" (2200mm x 1730 mm x 1169 mm)
(71'' X 39'') 95" x 87" x 45" (2413mm x 2209mm x 1143mm)
FABRIC EXPERT 71" X 39"
100W/130W/150W
LASER POWER
100W ( 130W, 150W Optional)
LASER TUBE TYPE
ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx
WORKING AREA
71" x 39" (1800 mm x 900 mm)
CONTROLLING SYSTEM
RuiDa controller RDC6442G-YM (EC)
MAX MOVING SPEED
0-15;74 in/s
MACHINE DIMENSIONS
102" x 91" x 49" ( 4015 x 3582 x 1929 mm)

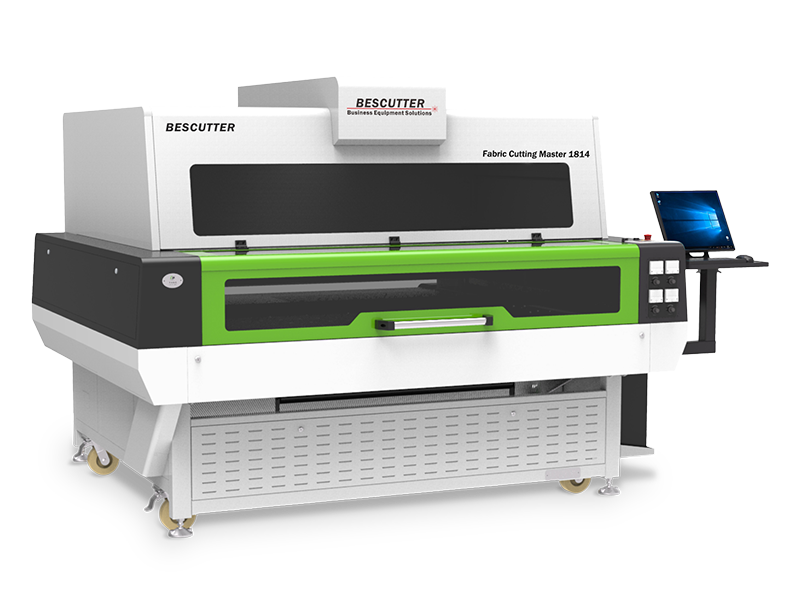

FABRIC MASTER 70" X 55"
150W
LASER POWER
150W
LASER TUBE TYPE
ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx
WORKING AREA
70" (1800 mm) x 55" (1400 mm)
CONTROLLING SYSTEM
GOOGOLTECH GT2-800-ACC2-VB Controller
MAX MOVING SPEED
28 in/s (700 mm/s)
MACHINE DIMENSIONS
102" x 91" x 89" ( 2590 x 2311 x 2260 mm)
REQUEST A QUOTE
