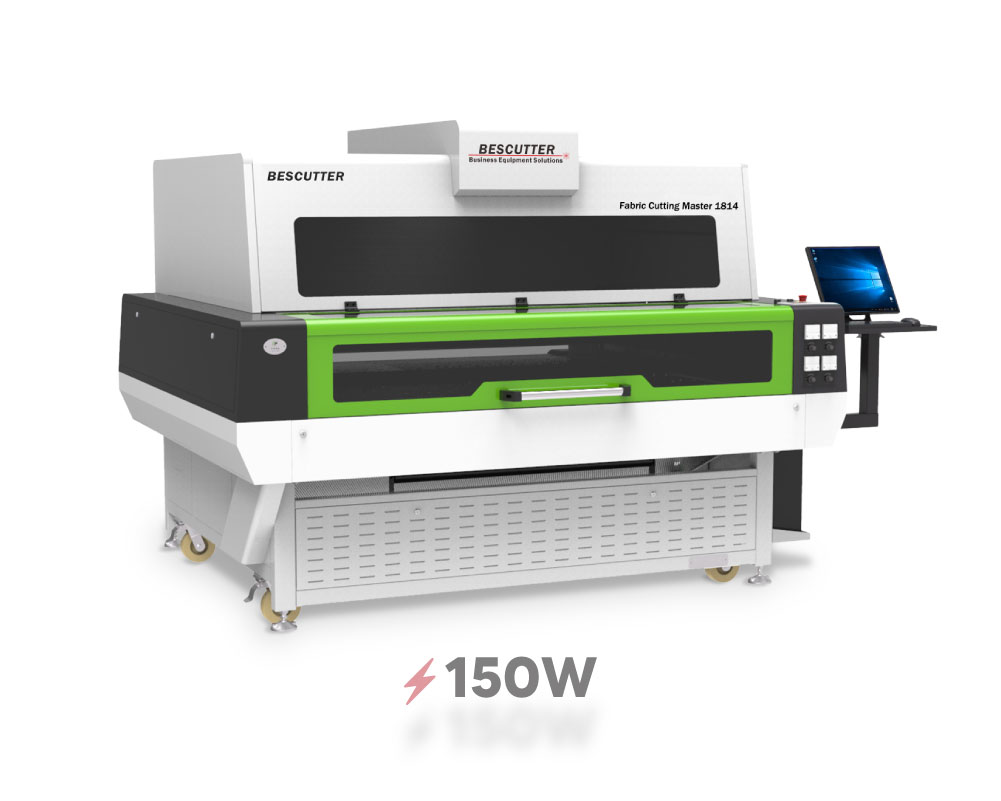

FABRIC MASTER 70" X 55"
150W | CO2 LASER CUTTER & ENGRAVER | WITH CAMERA, CONVEYOR BELT, ROLL STACKER AND AUTO FEEDER DOUBLE HEAD ASYNCHRONOUS WITH VISION SYSTEM
KEY SPECS
- Includes Camera, E-Shaped Blade Mesh Conveyor Belt, And Edge Auto-Detecting Feeder.
- Double Head Asynchronous Laser Cutter With Vision System.
- Contour Cut With Registration Mark.
- Free Desktop Computer And Operation Software Included.
- Up To 10,000 Hour Life Span.
- Us Based Support.
Contact Us for More Information
BESCUTTER FABRIC MASTER SERIES

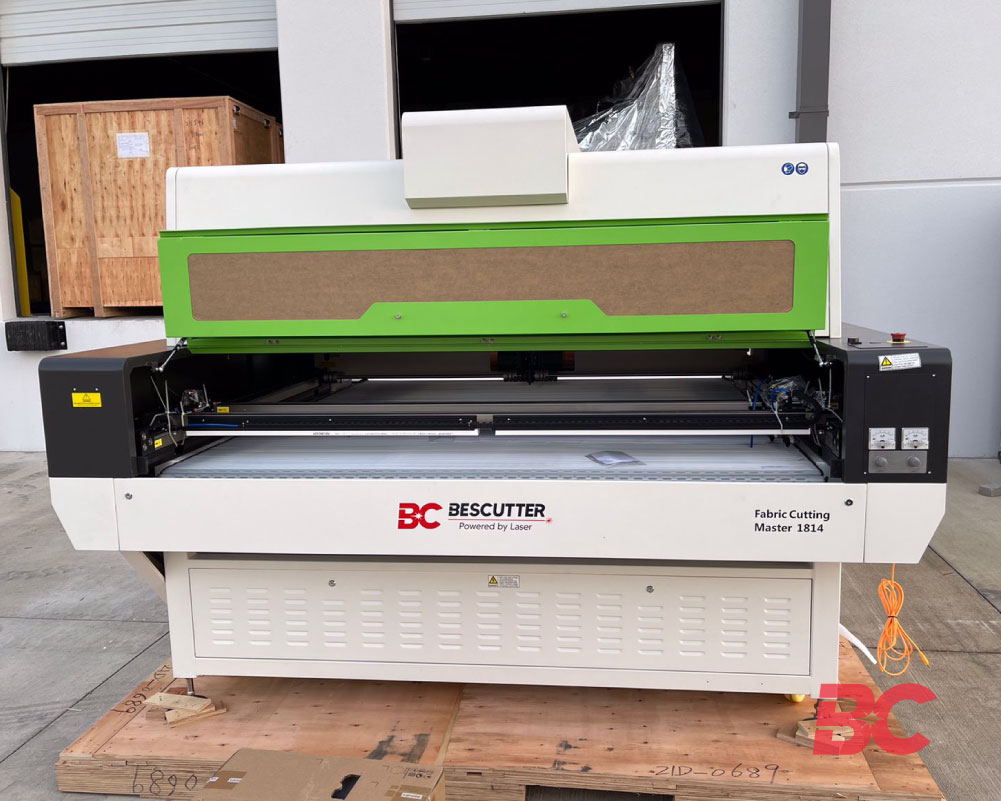

The FABRIC MASTER is a high-speed CO2 laser machine, specially designed for fabric cutting and engraving, with speeds of up to 600 mm/s. Its advanced design includes a fume extractor and a laser tube cooler, ensuring consistent performance and extending the equipment’s lifespan. Additionally, its air assist system prevents smoke buildup on the lens, ensuring precise and high-quality cuts.

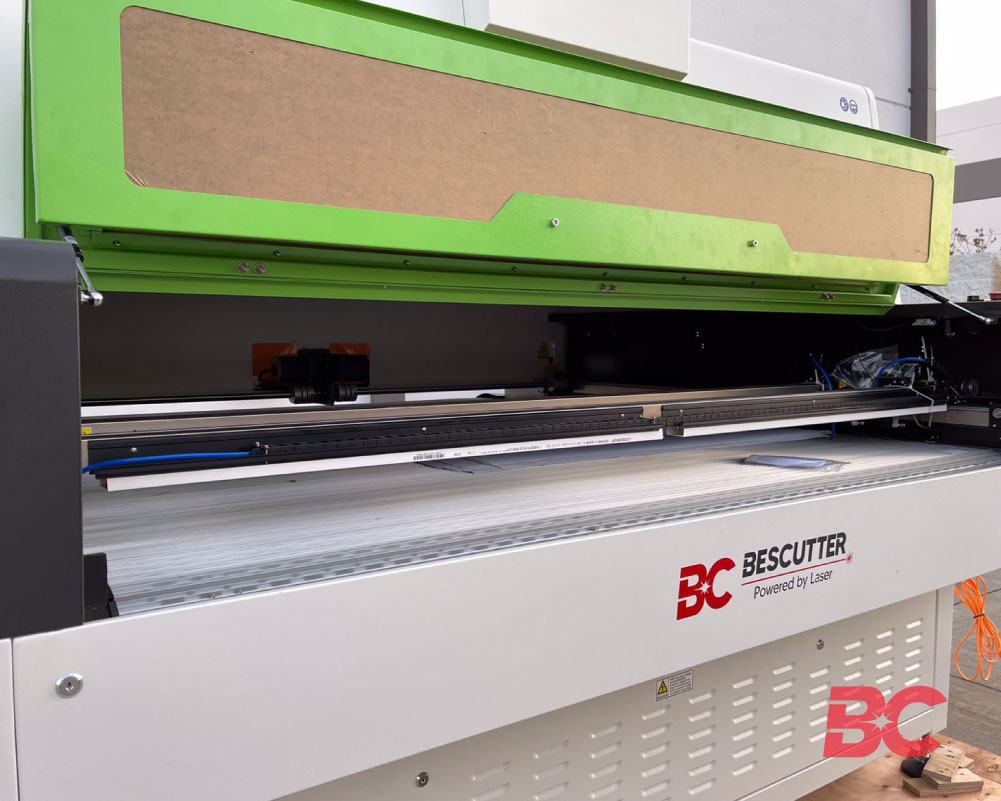

Equipped with an E-shape blade mesh conveyor made of aerospace-grade aluminum, lightweight and stable, and a pass-through door for continuous fabric feeding. The auto-edge detecting feeder and asynchronous double head with vision system optimize the cutting process. The machine comes with an integrated computer with a screen and Smart Vision software, providing complete control over cutting and engraving operations, improving efficiency and precision in every task. Furthermore, the Canon CCD camera ensures detailed monitoring and precise control of the process.
The FABRIC MASTER is the comprehensive solution for high-performance industrial processes, combining cutting-edge technology, ease of use, and excellent cutting quality.
MACHINE SPECS
| TECHNICAL SPECIFICATIONS | DETAILS |
|---|---|
| Laser Power: | 150W |
| Laser Tube Type: | ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx |
| Power Supply: | AC 220V (±10%) 50Hz |
| Focus Lens: | 2.0" focal lens |
| Working Area: | 70" (1800 mm) x 55" (1400 mm) |
| Working Platform: | E-shaped blade mesh conveyor belt |
| Z-Axis Displacement: | N/A |
| Max Moving Speed: | 28 in/s (700 mm/s) |
| Pass-Through Door: | Auto-Feeder textile back |
| Transmission: | Stepper motor / Belts LeadShine |
| Operation Mode: | Smartcarve software |
| Controlling System: | GOOGOLTECH GT2-800-ACC2-VB Controller |
| Software: | Smart Carve / Smart Vision |
| Connection Method: | USB Cable / Data Cable |
| Software Compatibility: | Photoshop, Illustrator, CorelDraw, and AutoCAD |
| Contour Cut | CCD Camera Canon (EOS 1500D) |
| Double Head | Double Head Asynchronous Laser Cutter with Vision System |
