Steel Plate Full
Bescutter Production System With Paint Line
MACHINE SPECS
This machine is engineered to process large steel plates, effectively removing rust and preparing surfaces for painting. It achieves a high rust cleaning grade (Sa2.5) and offers variable processing speeds.
Contact Us for More Information

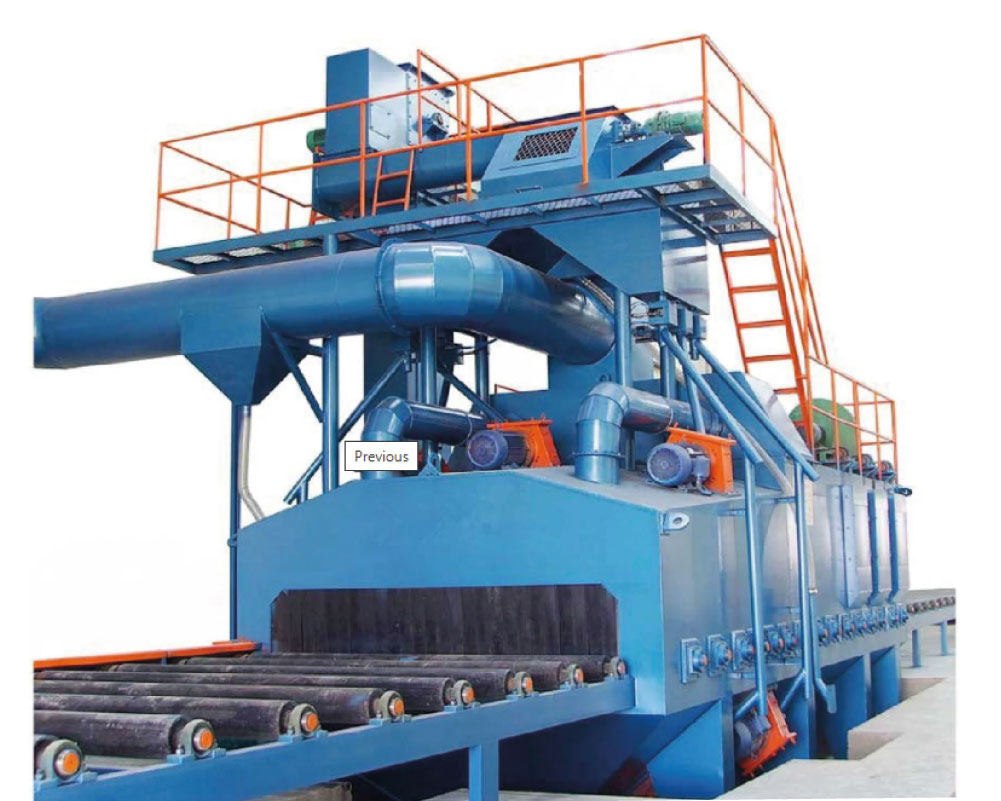

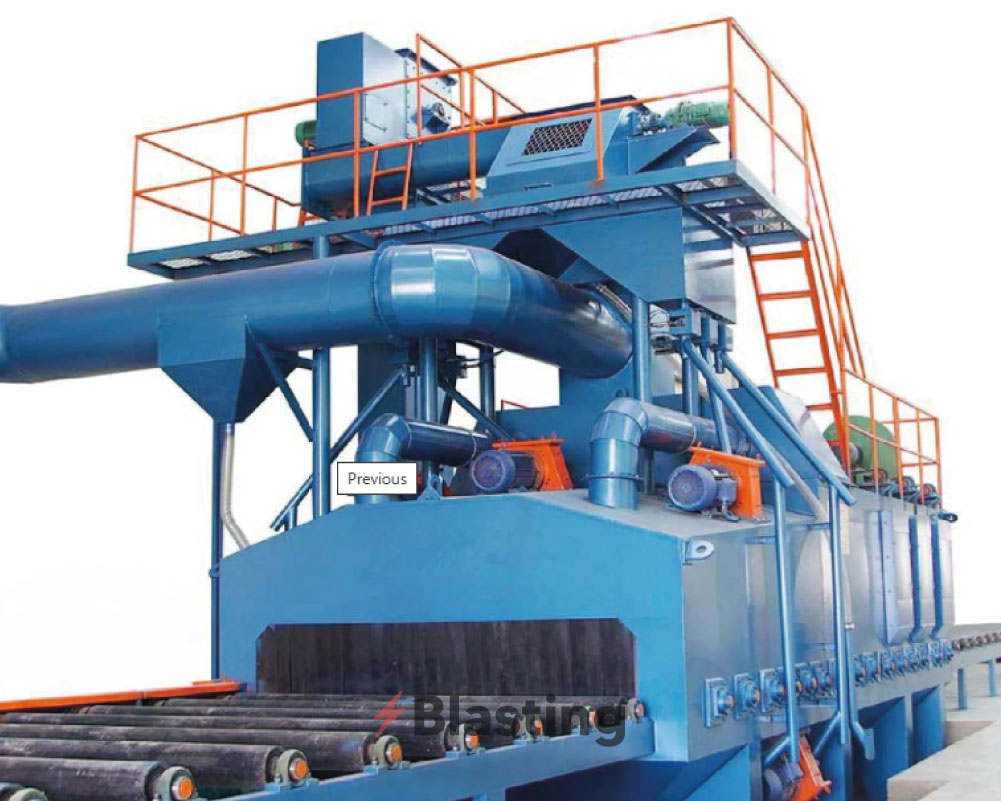

Bescutter Steel Plate Full Production System With Paint Line
The Bescutter Steel Plate Shot Blasting and Painting Line is an integrated and highly efficient solution designed for comprehensive surface preparation and coating of steel plates. This advanced system seamlessly combines powerful shot blasting with an automated painting process, ensuring superior cleaning and consistent paint application for various industrial applications
HIGHLIGHTED FEATURES
FEATURES AT A GLANCE
MACHINE SPECS
Processed Workpieces and Main Parameters
| Steel plate length x width x thickness: | ≤ 40 feet x ≤ 12 feet x 2 inches thick |
|---|---|
| Processing speed (Clean both sides of steel plate): | 1.6 ft ‐ 6.6 ft/min Variable Speed |
| Rust cleaning grade: | Sa2 .5 (GB8923‐88) |
| Processing material and strength range: | Q235/Q345/65Mn/HT/ZG etc. |
| Surface roughness: | 15~70 micrometers (depending on shot size) |
| Compressed air pressure range: | 60 ‐ 90 psi |
| Noise: | ≤95dB |
Subsection Structure Performance
1. Roller conveyor Module
| Loading and unloading roller Conveying speed: | 20 ‐ 200 in/min |
|---|---|
| Loading and unloading Roller width: | 165 inches |
| Loading and unloading roller Driven motor power: | Motors, 8 HP each |
| Distance Between Rollers for blasting machine: | 24 inches |

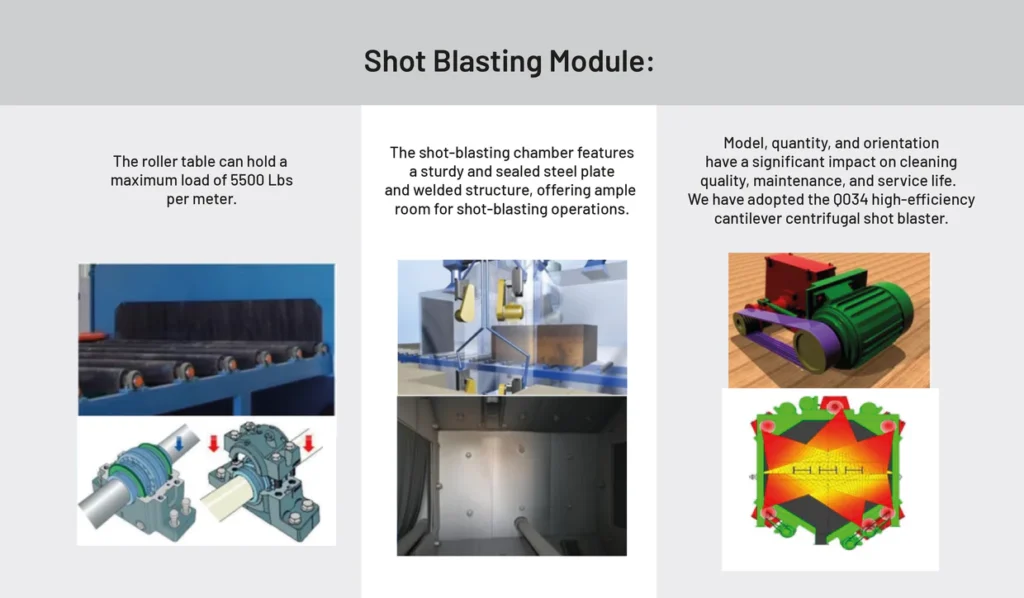

2. Shot Blasting Module
| Shot blasting turbine capacity: | 660 lbs/min |
|---|---|
| Power: | 25 HP |
| Quantity: | 10 turbines (5 upper, 5 lower) |
| Abrasive circulatory system capacity: | 220 US Tons/hr |
| Abrasive control system Maximum flow: | 1100 lbs/min single supplying shot value |
| Abrasive cleaning system: | Rolling brush diameter: 36 inches |

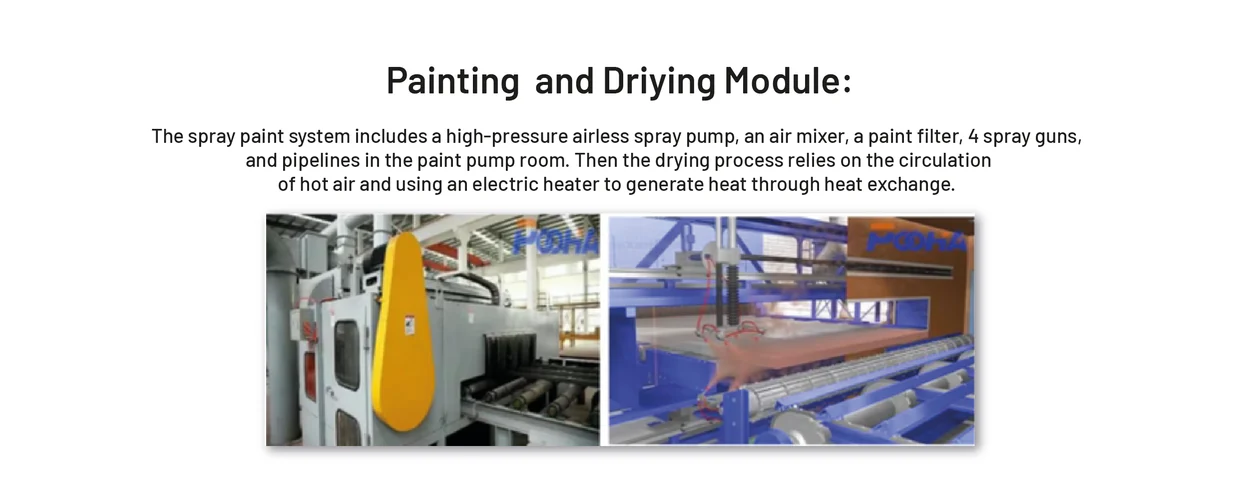

3. Panting System Module
| Driving model: | Variable Frequency Drive |
|---|---|
| Spray gun Transverse speed: | 65 ‐ 260 ft/s |
| (frequency control) | |
| Spray gun transverse power: | 4.0 HP |
| Fan power: | 40 HP (share with drying room) |
| Spray gun quantity: | 4 pcs |
| Painting pump Model: | Changjiang |
| Painting pump Pressure ratio: | 30:1 |
| Painting pump Spray paint consumption: | 4.9 gal/min |
| Painting pump Intake pressure: | 60 ‐ 90 psi |
| Paint mist treatment Chimney diameter: | 32 inches |
| Paint mist treatment Chimney height: | 50 ft |
4. Drying Module
| Heating form: | Natural gas |
|---|---|
| Temperature of drying room: | ≤180 degrees F |
| Temperature control form: | Automatic thermostat |
| Drying room length: | 40 ft |
| Drying power: | 40 HP (shared with painting room) |
