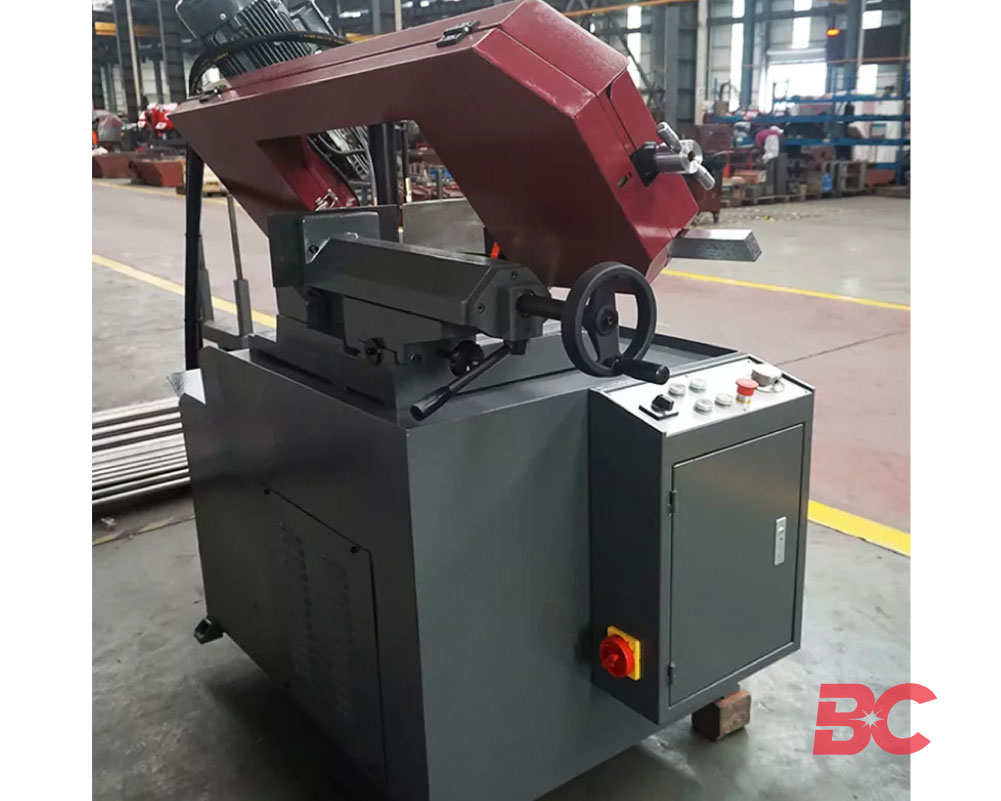

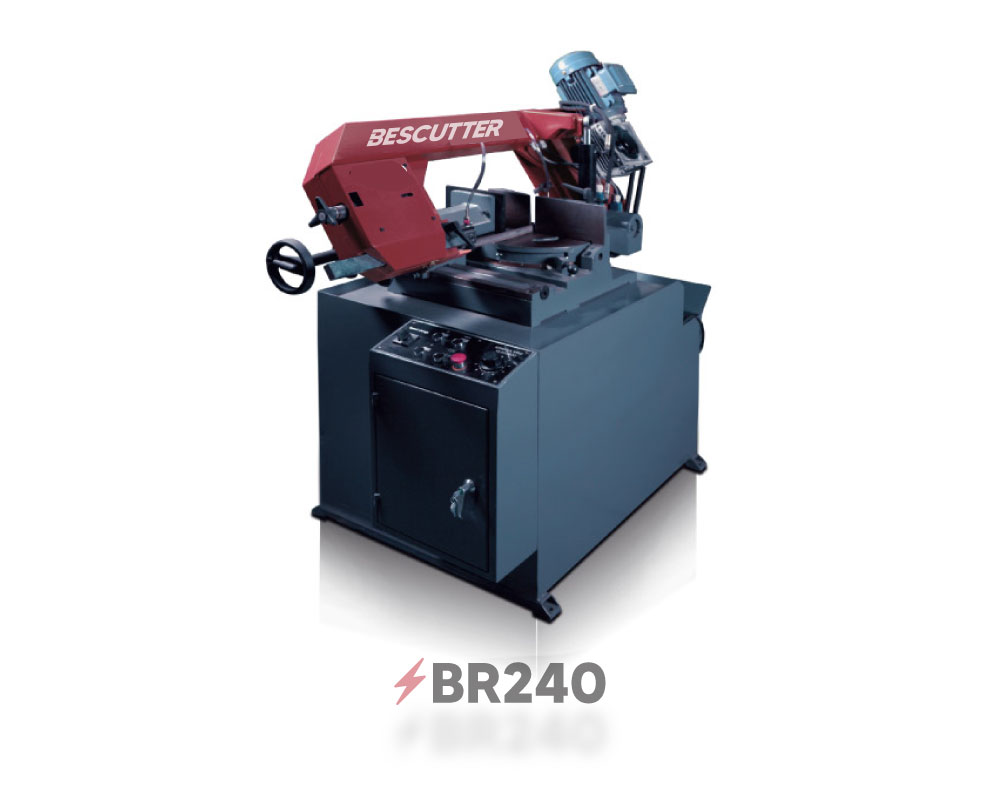

Band Saw BR240

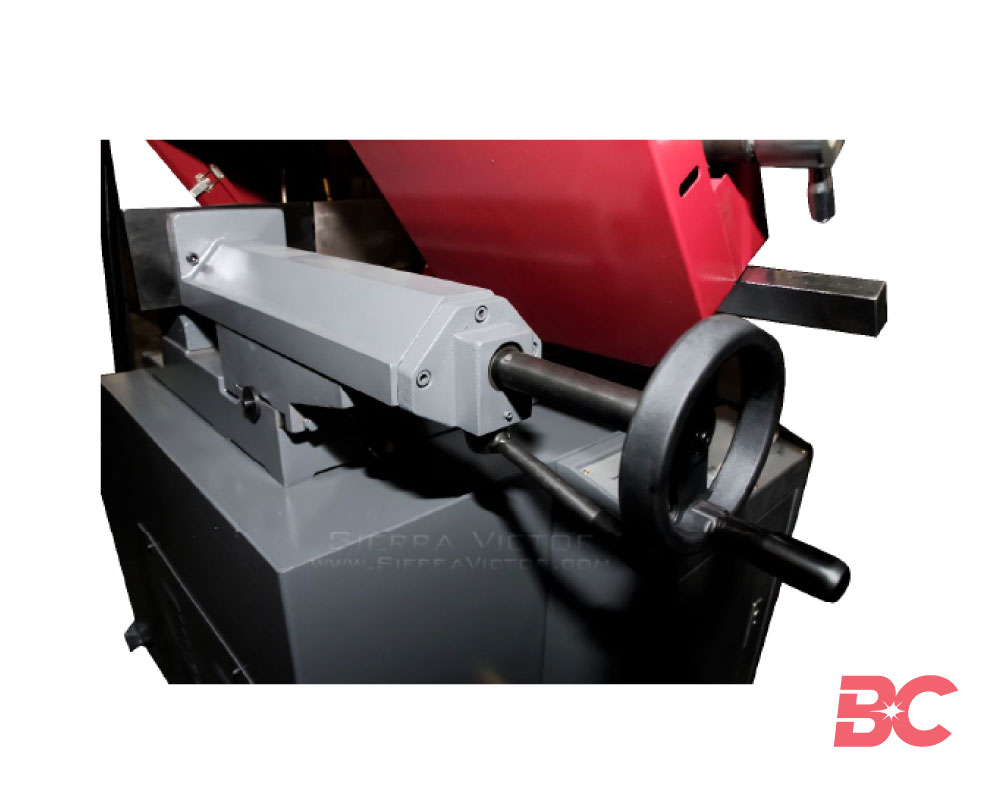

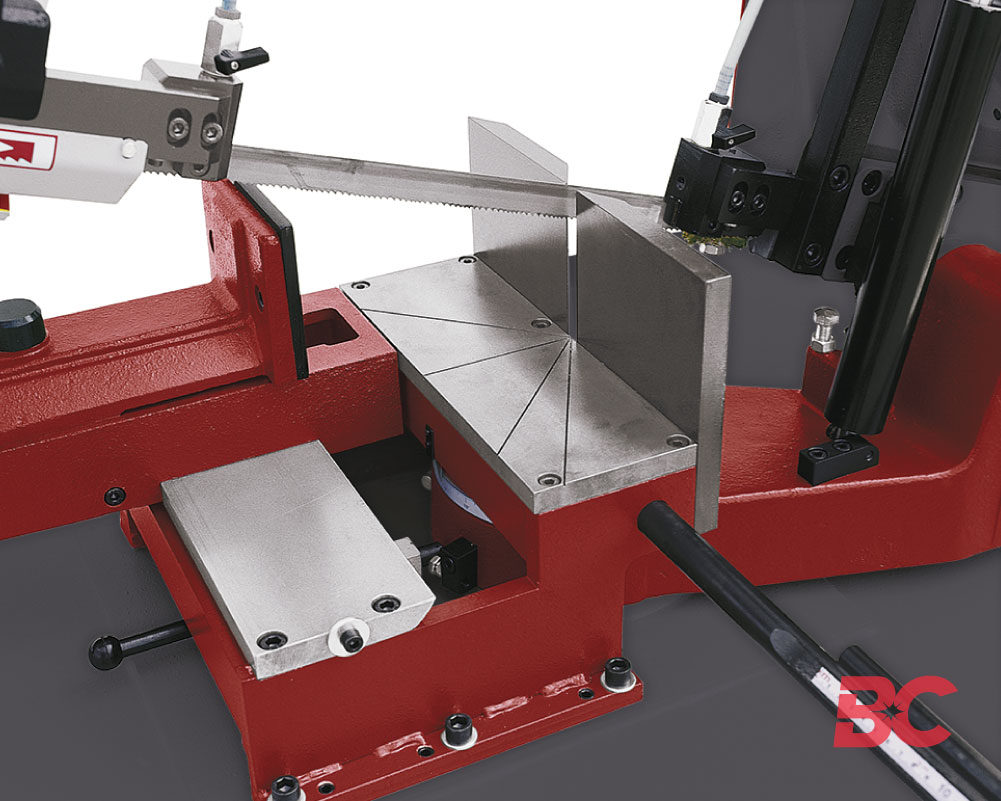

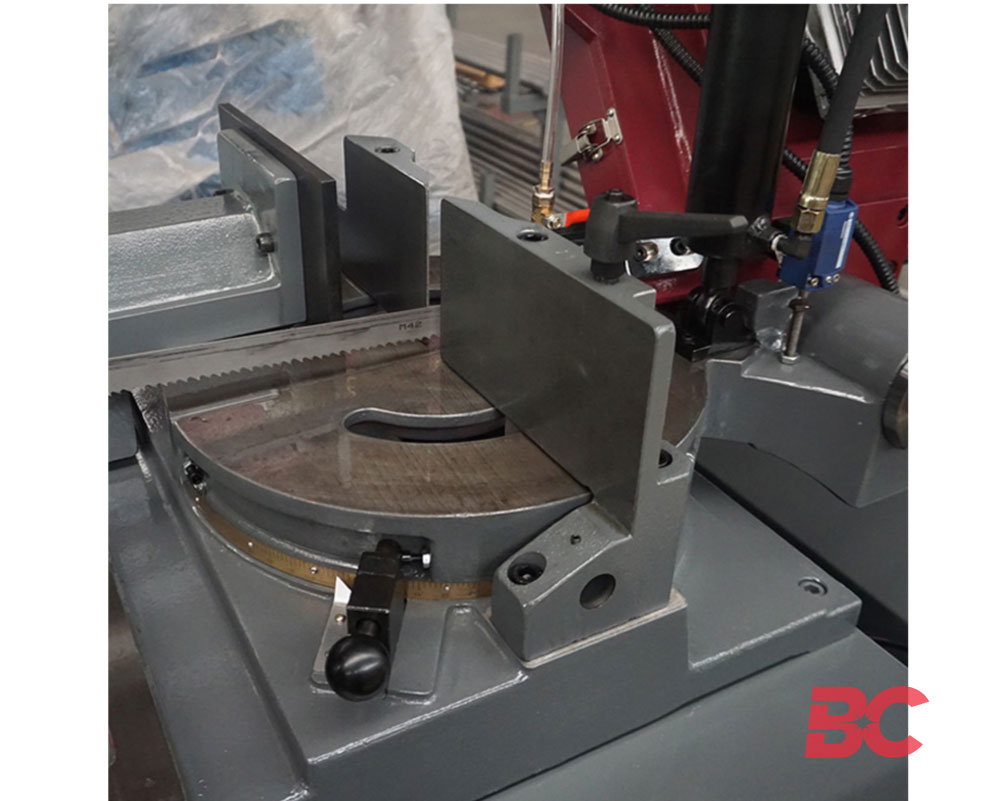

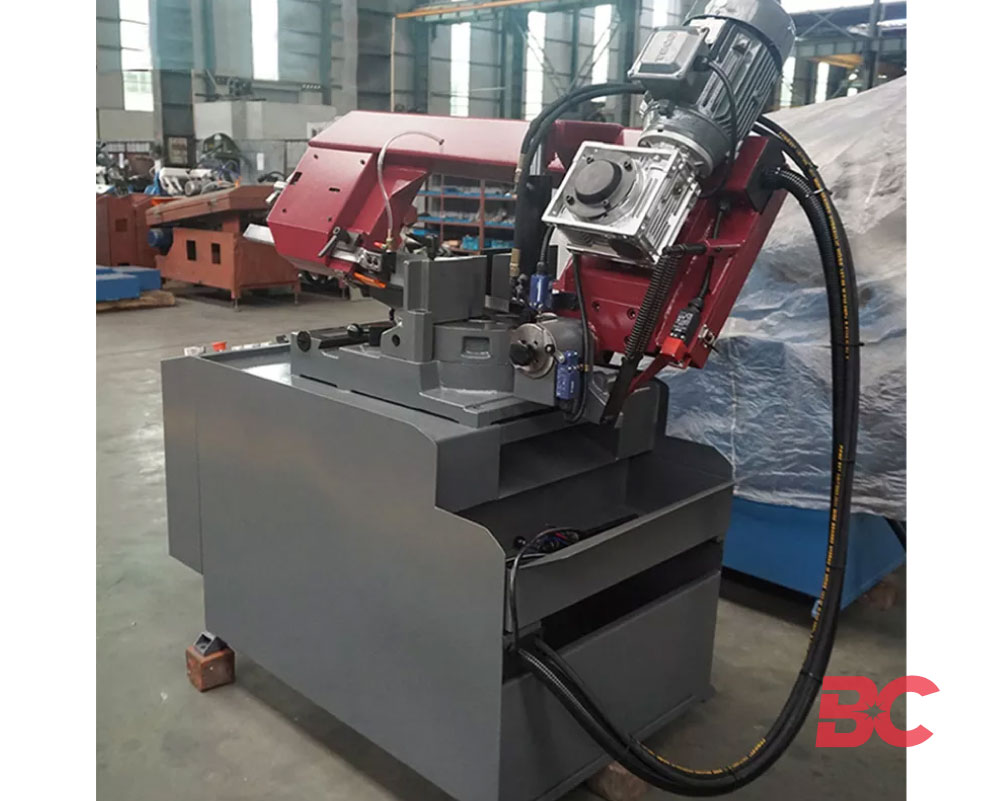

The BAND SAW BR240 is a metal cutting machine that offers a variety of features to make your cutting tasks easier and more efficient. It has a two-speed motor that allows you to adjust the cutting speed to match the material you are cutting. It also comes with one complimentary bi-metal saw blade, so you can get started right away. The hydraulic short stroke vise clamp makes it easy to secure your workpiece in place, and the scale to read miter angle ensures accurate cuts. The power-driven band cleaning brushes help to keep the blade clean and free of debris, and the heavy-duty direct drive gearbox provides smooth and reliable operation

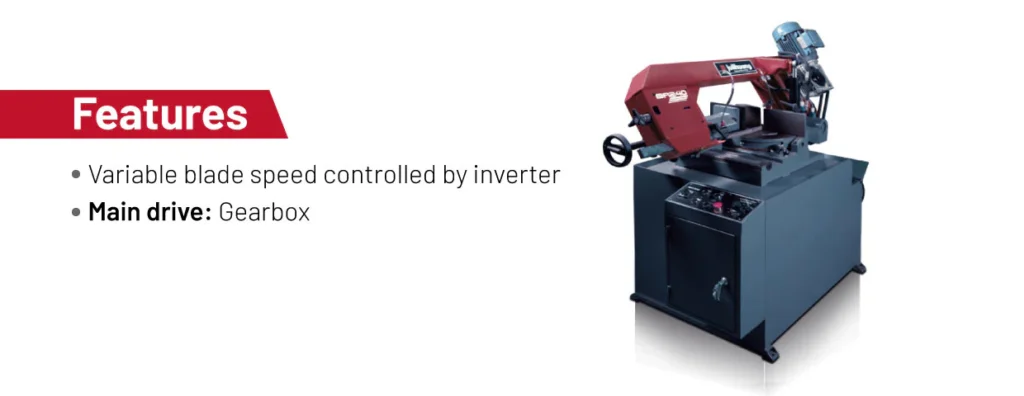

FEATURES AT A GLANCE
MACHINE SPECS
| TECHNICAL SPECIFICATION | DETAIL |
|---|---|
| Capacity (inch / mm): | 20° 9"/ 230mm 12.2" x 9" / 310mm x 230mm - 45° 8.26"/ 210mm 8.26" x 8.26"/210mm x 210mm - 60° 5.51"/140mm 5.51" x 3.93" / 140mm x 100mm |
| Bi-direction angle cutting: | +45°~-60° |
| Blade speed (inch/sec,m/min): | 23.62 - 45.93 (inch/sec) / 36-70 (m/min) |
| Blade size (inch/mm): | 1.06" x 0.035" x 114.56" / 27mm x 0.9mm x 29710mm |
| Vice clamping type: | Manual |
| Blade drive motor (KW): | 1.8KW/1.3KW |
| Hyd. pump motor (KW): | 0.42KW |
| Main drive: | Wormbox |
| Machine Size (L x W x H) (inch/mm): | 63" x 31.49" x 59.05" (1600mm x 800mm x 1500mm) |
