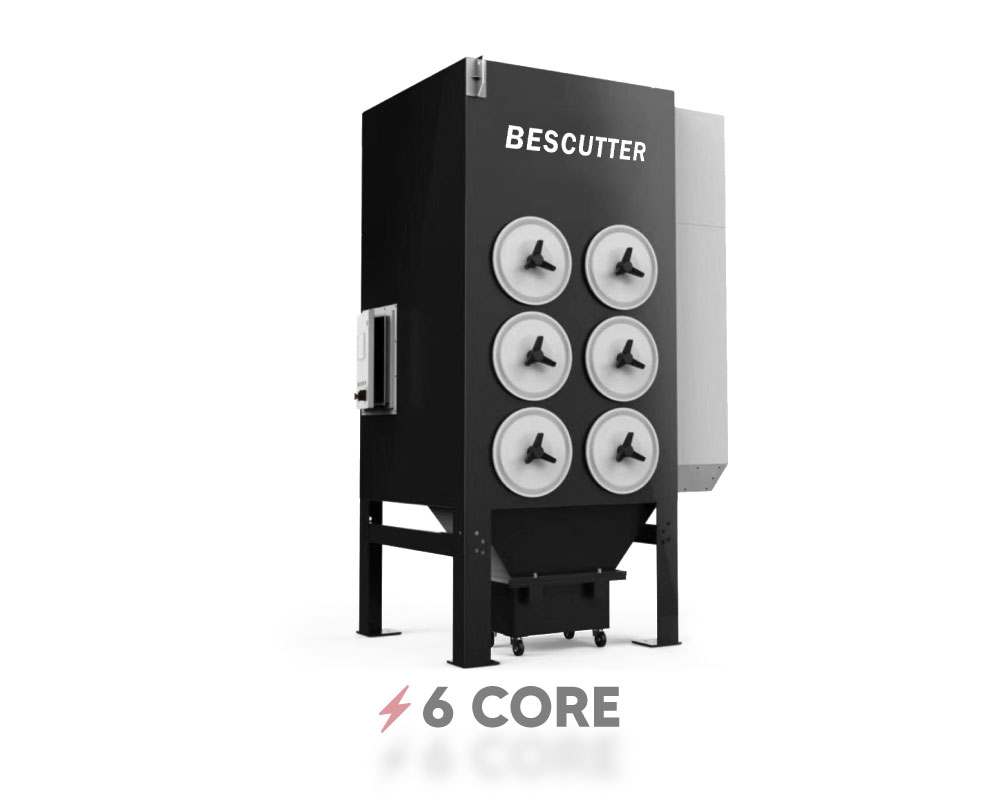

BesCutter 6 Core
Dust Collector for Fiber Laser Cutting Machine
KEY SPECS
The Bescutter Dust Collector 6 Core is an industrial-grade air filtration system engineered to efficiently remove dust, smoke, and fine particles from welding, grinding, and fiber laser cutting environments. It features six high-performance filter cartridges and advanced real-time monitoring, ensuring clean air and safe working conditions.
- 6-Core High-Efficiency Filtration.
- 3,531 Cfm (6,000 M³/H) Air Volume.
- 99.99% Filtration Efficiency.
- Siemens 7.5Kw (10 Hp) Fan Power.
- 87 Psi Compressed Air Cleaning System.
- Compact & Easy Installation.
- US-Based Support.
Contact Us for More Information
DUST COLLECTOR 6 CORE
The Bescutter Dust Collector 6 Core is a high-efficiency air filtration system designed for demanding industrial environments. It effectively removes dust, smoke, and airborne contaminants, making it an essential addition for fiber laser cutting, metal processing, and welding applications.
Advanced Filtration Technology
This unit features six HV/Ahlstrom/TORAY filter cartridges with an F9 filtration level, ensuring a 99.99% efficiency in capturing fine particulates. The high-capacity 50L dust collector supports extended operation with minimal maintenance.
Technical Specifications:
- Air Pressure: 3,600 Pa
- Filtering Area: 1,292 ft² (120 m²)
- Collector Capacity: 50L
- Air Pressure Requirement: 87 PSI compressed air (oil & water-free)
- Power Requirements: 380V ±10% / 50Hz
- Dimensions: 61” L × 56” W × 110” H
- Weight: 1,984 lbs (900 kg)
HIGHLIGHTED FEATURES
MACHINE SPECS
| Specification Item | Detail |
|---|---|
| Filter cartridge material | HV/Alhstrom/TORAY; filtration level: F9 |
| Filter cartridges | 6 |
| Air volume | 3531 CFM (6000 m³/h) |
| Air pressure | 3600 Pa |
| Filtration efficiency | 99.99 % |
| Filtering area | 1292 ft² (120 m²) |
| Fan power | 7.5 kW SIEMENS (10 HP) |
| Collector capacity | 50 L |
| Air pressure request | 87 PSI compressed air without oil and water |
| Dimensions | 61″ L × 56″ W × 110″ H |
| Weight | 1984 lbs (900 kg) |
A SYMPHONY OF STYLE AND FUNCTION
- Sleek Design, Robust Build: Crafted from the finest cold-rolled steel, our machines are a blend of sophistication and strength, encased in a sleek industrial design.
- Intuitive Control System: Experience ease of operation with our high-tech, user-friendly control system. It’s not just about working smart, it’s about working beautifully.
- Customizable Admission Flexibility: Your needs, our design. Customize them to your content.
- State-of-the-art Filters: Quick-disconnect American high-voltage filters mean efficiency without hassle.
- The Power of Siemens/BED Motors: Reliability and quality at the core, ensuring smooth and quiet operation.
- Eco-friendly and Cost-effective: Low on noise, high on efficiency, and easy on your budget.
- Innovative Wind Wheel Design: Corrosion-resistant, dynamically balanced for stability and longevity.

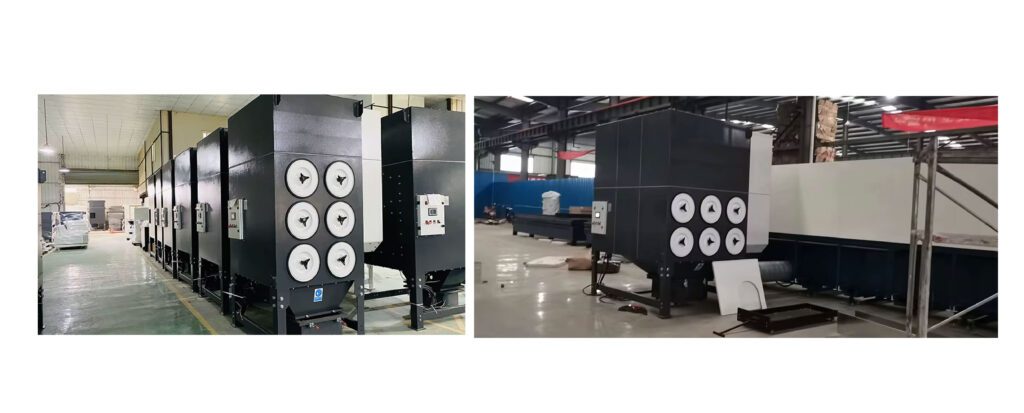

WORKSHOP
